Description

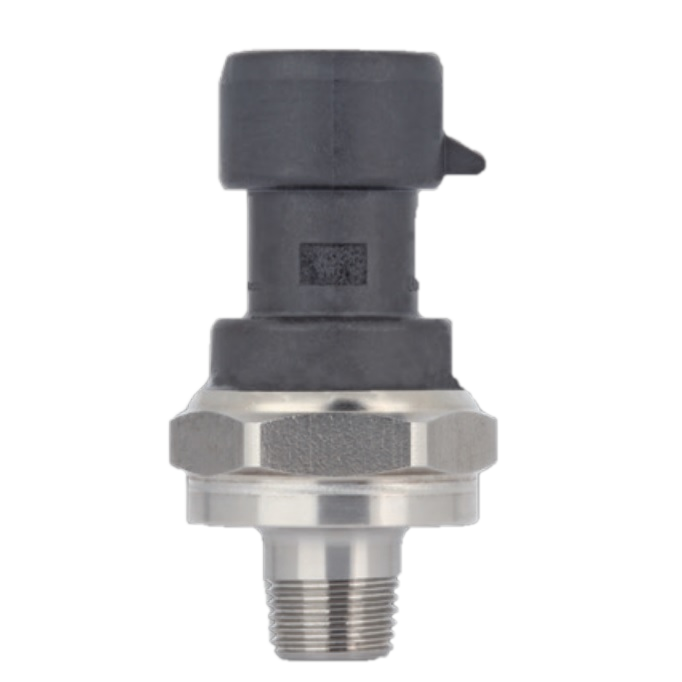

Stainless steel 60psi absolute pressure sensor with 1/8"NPT Port
- Reads from 0 to 60psi (4.13 bar) absolute
- Media isolated sensor
- suitable for use with water, petrol, diesel, hydraulic fluids, CNG
- Stainless steel construction so does not corrode and fail like green steel sensors from other suppliers
- Ideal for measuring boost in high boost applications
- 3-Way Metri-Pack 150 electrical connector
- Rated from -40ºC to 125ºC
- Supply voltage from 4.75V to 5.25V
- 0.5V to 4.5V Output voltage
- 22mm hex
Note that this sensor reads absolute pressure. If you are looking for an oil or fuel pressure sensor, please refer to our range of gauge pressure sensor.
Accessories (sold separately)
- 3-Way Delphi Connector Female Connector Kit click here.
- Aluminium Weld On - 1/8"NPT Female click here.
- Stainless Steel Weld On Boss - 1/8"NPT Female click here.
- Mild Steel Weld On Boss - 1/8"NPT Female click here.
