Description

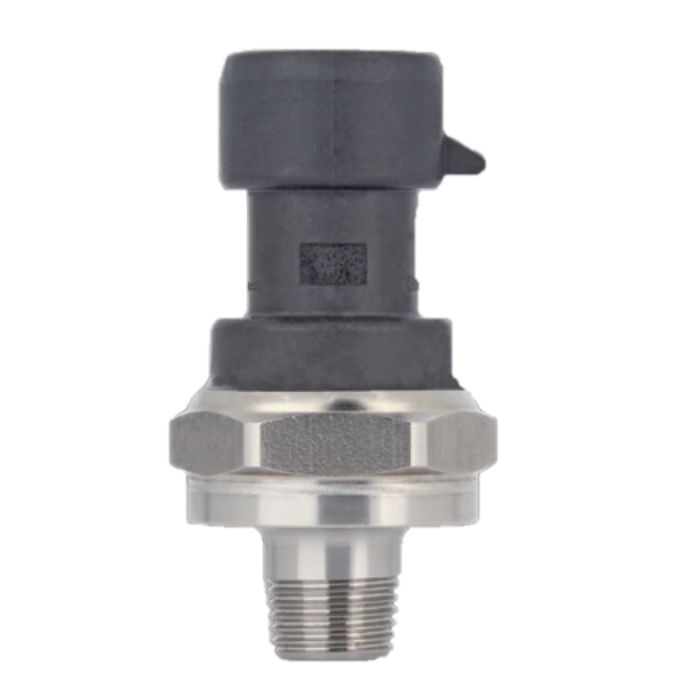

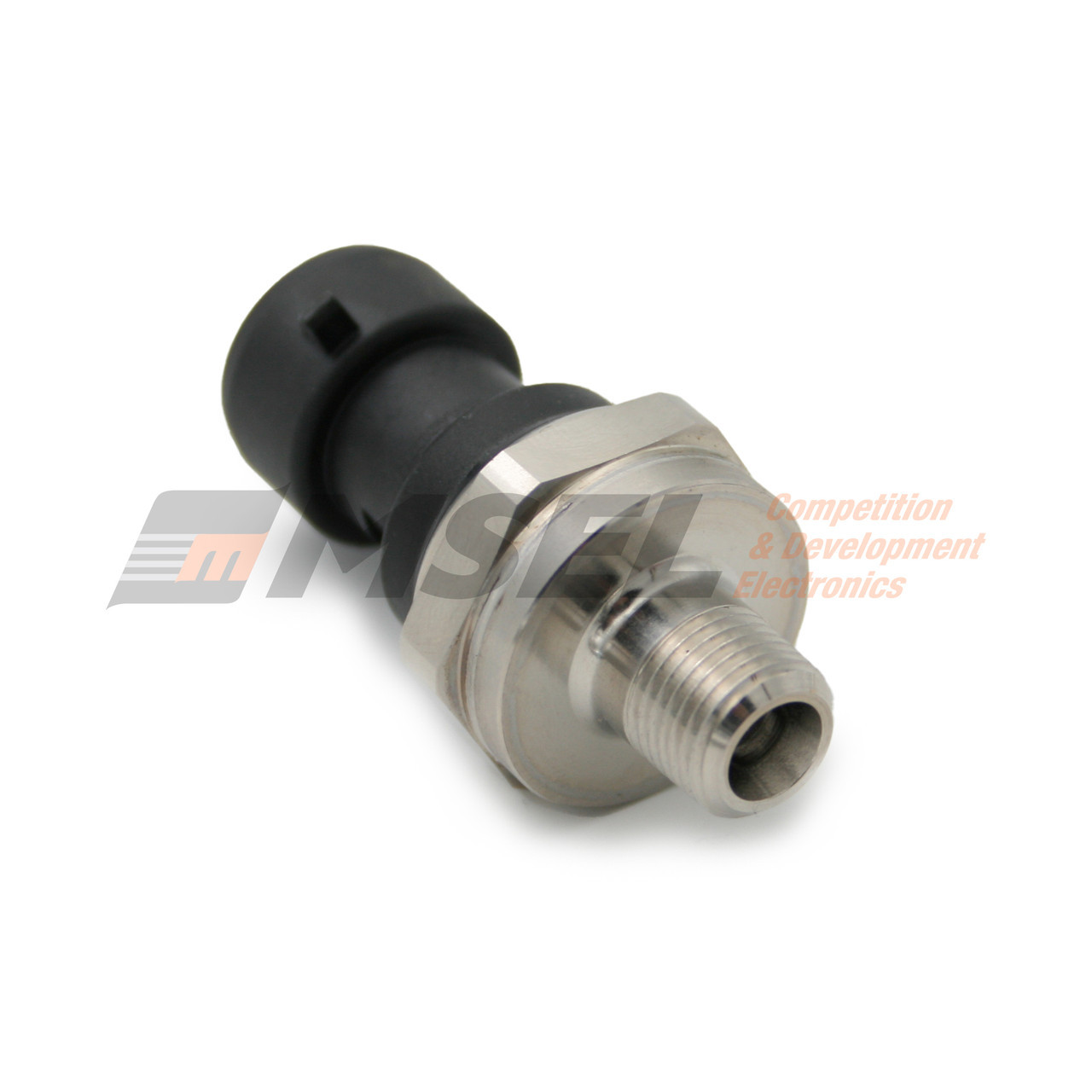

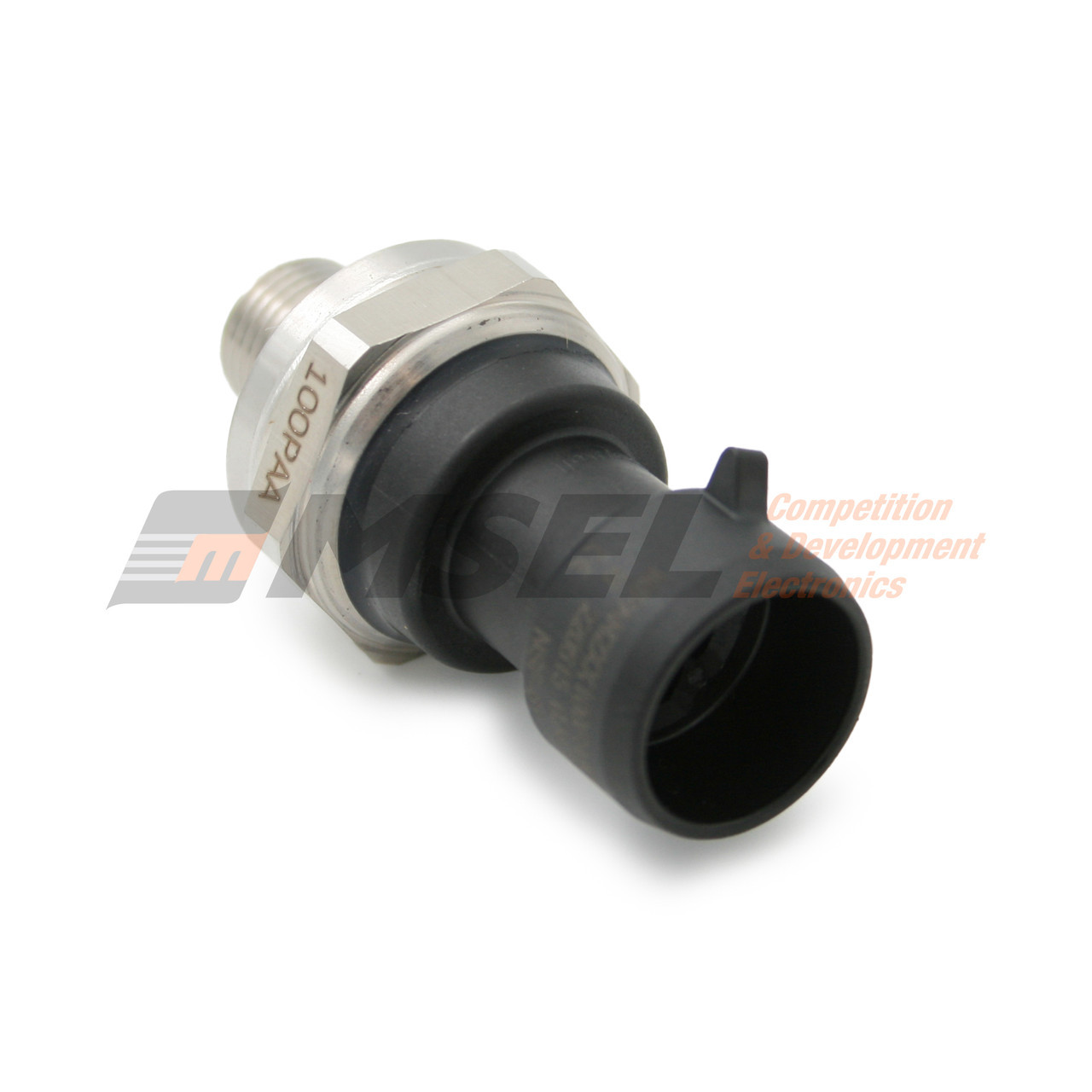

Honeywell Stainless 6 bar absolute pressure sensor with 1/8"NPT Port
- Reads from 0 to 6 bar (0 to 87psi) absolute
- Media isolated sensor
- suitable for use with water, petrol, diesel, hydraulic fluids, CNG
- Stainless steel construction so does not corrode and fail like green steel sensors from other suppliers
- Ideal for measuring boost in high boost applications
- 3-Way Metri-Pack 150 electrical connector
- Rated from -40ºC to 125ºC
- Supply voltage from 4.75V to 5.25V
- 0.5V to 4.5V Output voltage
- 22mm hex
Please note this is an absolute pressure sensor. If looking for a sensor for measuring oil or fuel pressure, please refer to our range of gauge pressure sensor sensors.
Accessories (sold separately)
- 3-Way Delphi Connector Female Connector Kit click here.
- Aluminium Weld On - 1/8"NPT Female click here.
- Stainless Steel Weld On Boss - 1/8"NPT Female click here.
- Mild Steel Weld On Boss - 1/8"NPT Female click here.
