Description

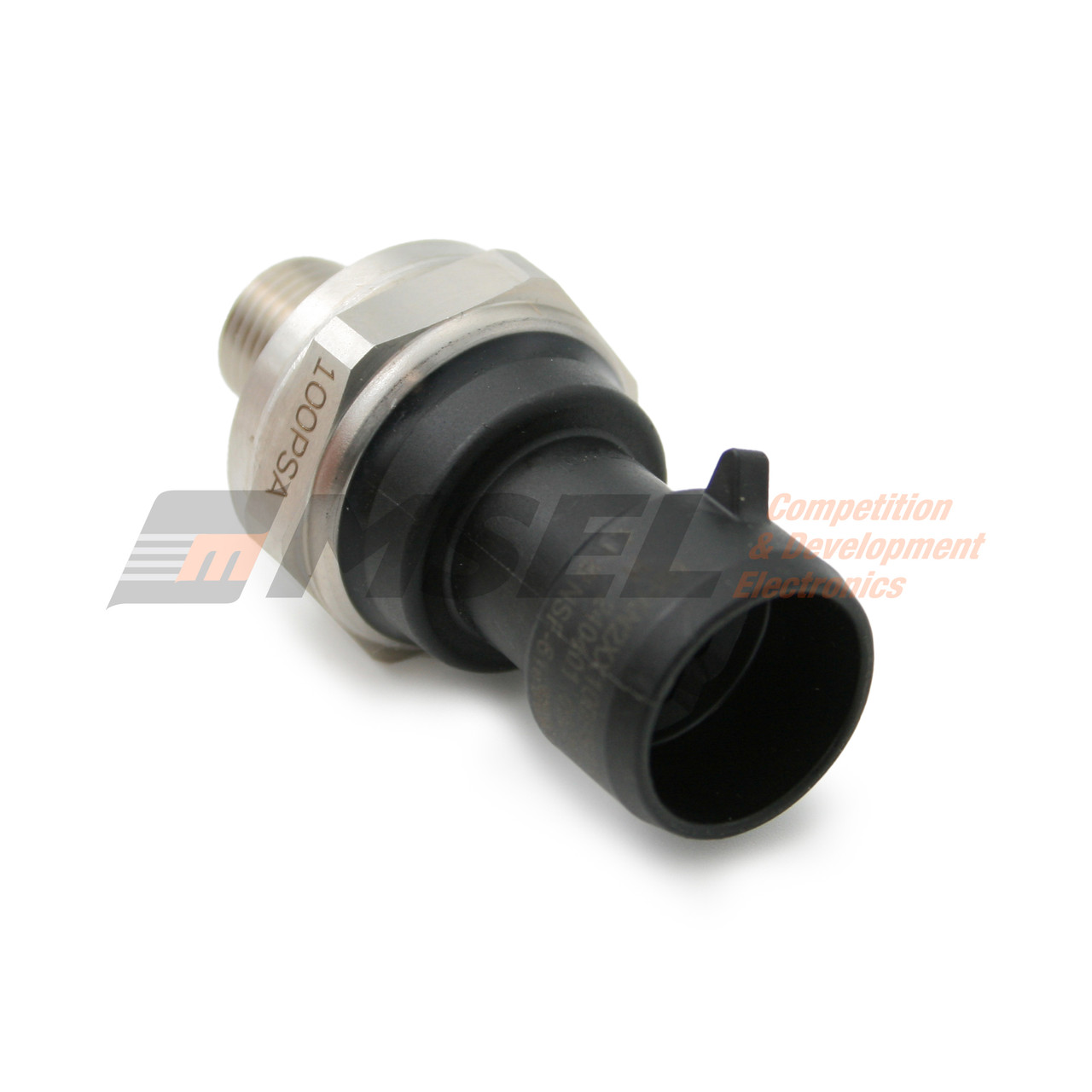

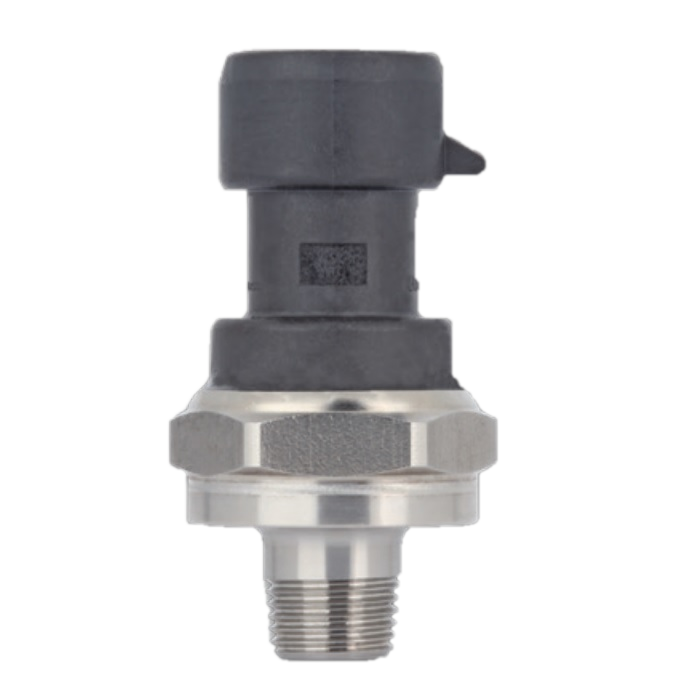

Stainless 150psi Sealed Gauge Pressure Sensor with 1/8"NPT Port
Currently out of stock with more stock due early May. The following options are available for immediate shipping (click on the product to be taken to the respective page):-
- Media isolated sensor
- suitable for use with water, petrol, diesel, hydraulic fluids, CNG
- Stainless construction
- Ideal for measuring fuel and oil pressure
- 3-Way Metri-Pack 150 electrical connector
- Rated from -40ºC to 125ºC
- Supply voltage from 4.75V to 5.25V
- 0.5V to 4.5V Output voltage
- 22mm hex
Accessories (sold separately)
- 3-Way Delphi Connector Female Connector Kit click here.
- Aluminium Weld On - 1/8"NPT Female click here.
- Stainless Steel Weld On Boss - 1/8"NPT Female click here.
- Mild Steel Weld On Boss - 1/8"NPT Female click here.
