Description

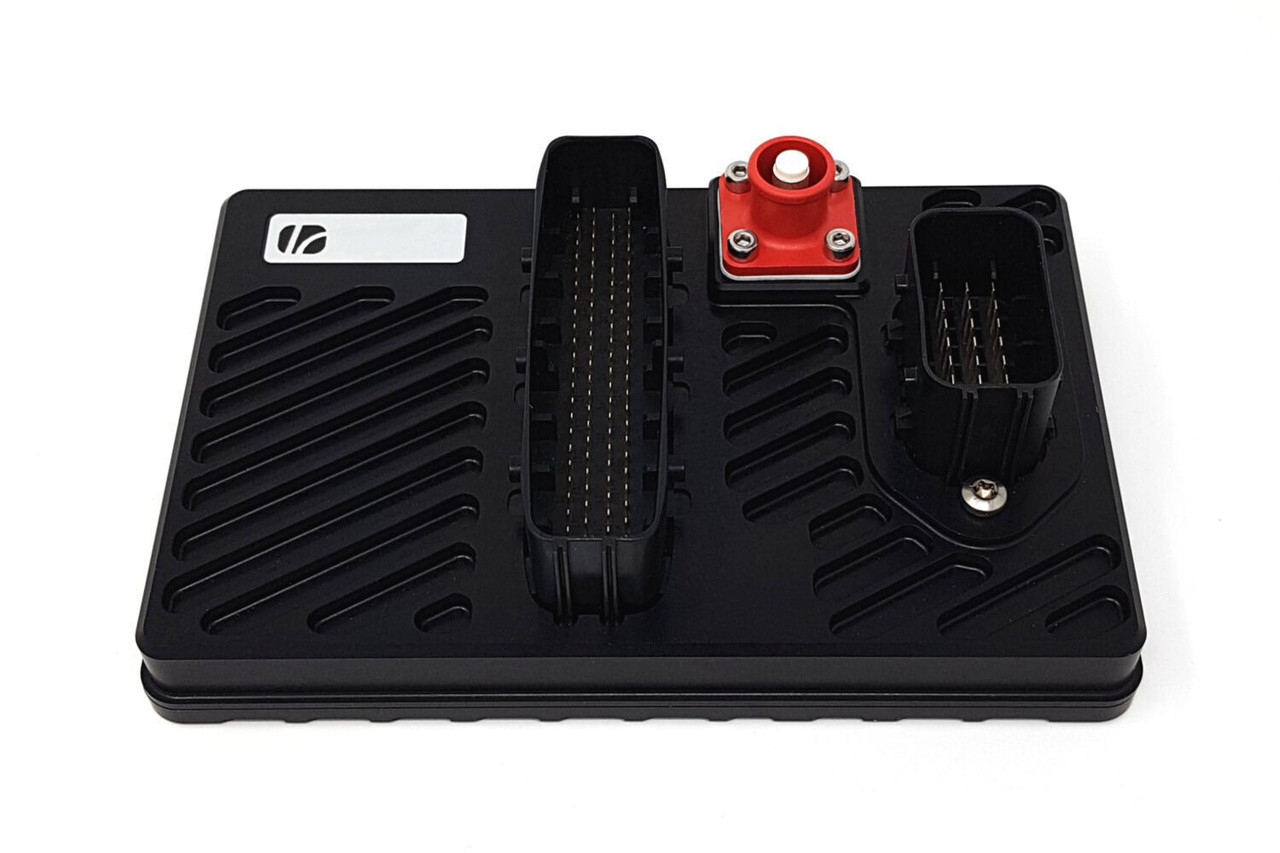

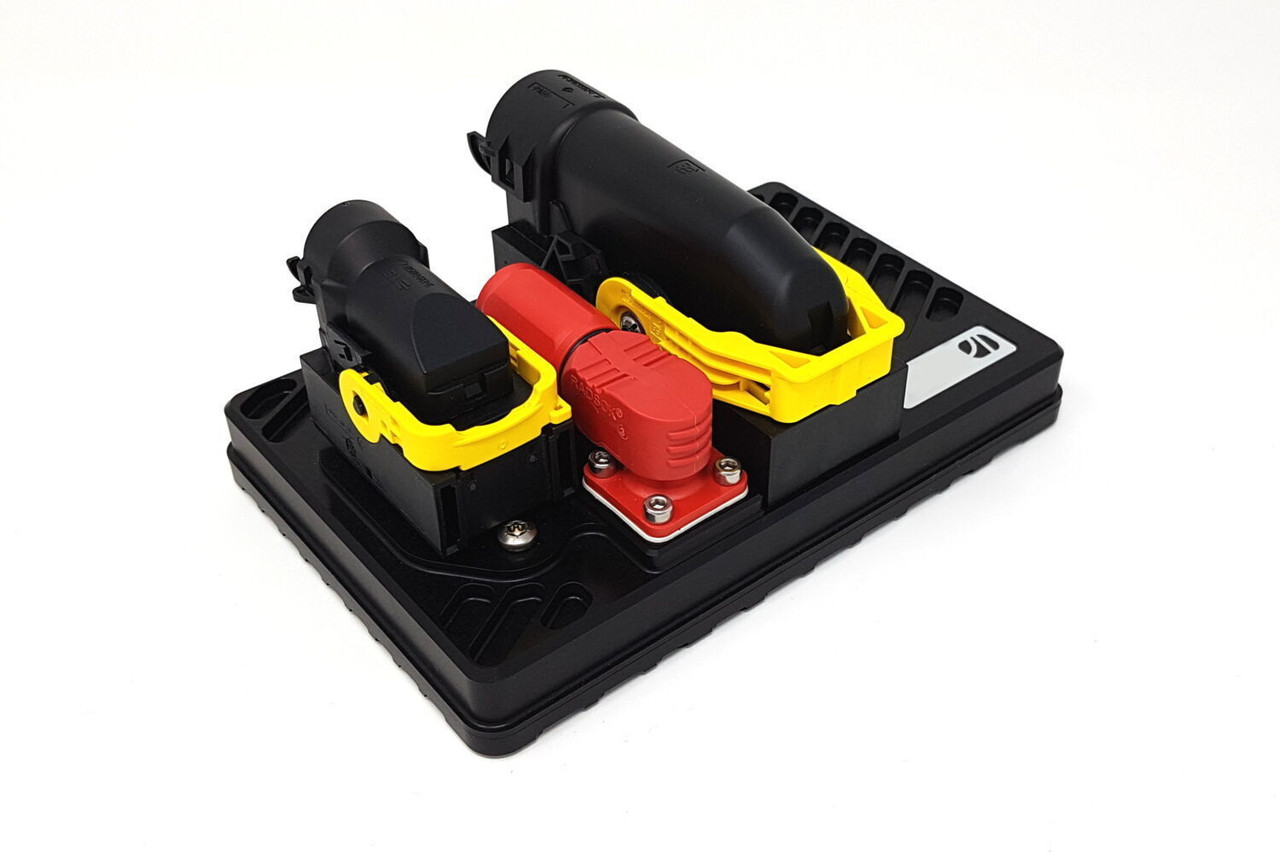

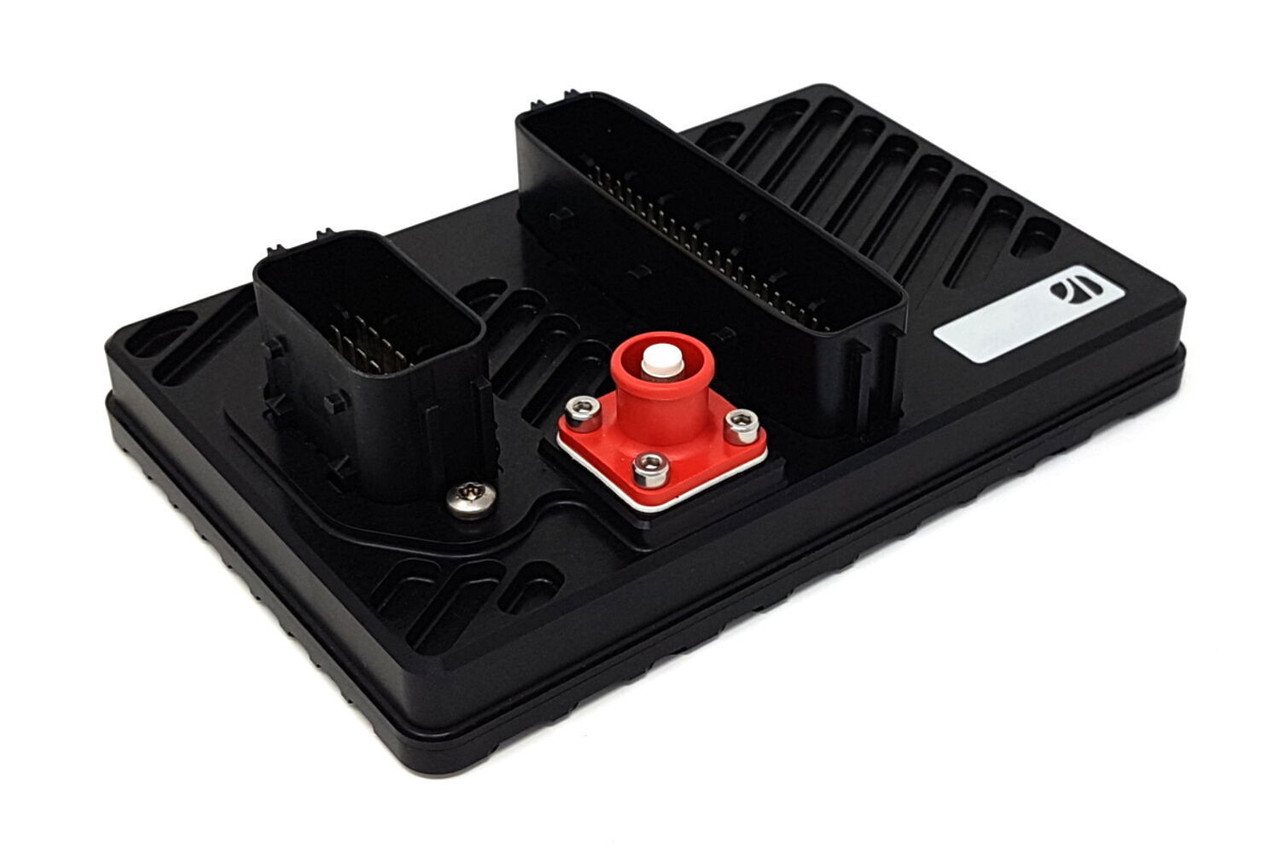

Life Racing PDUx3B Power Distribution Unit
High power motorsport Power Distribution Unit (PDU). Combines a robust billet aluminium case and the very latest power driving technology with the highest efficiency in the industry.
A total of 34 output channels with a maximum continuous current capacity of 200 amps*.
Clear and Powerful Fully Graphical Logic Programming Software - Easy to read and follow with full logic simulation ability, complete operational logic schematics can be physically printed giving quick and easy reference material for engineers working on building or maintaining the vehicle wiring.
Inputs - 16 flexible input channels capable of support 0-5v, Thermistor, Bi-polar and Frequency type signals
Slave Link - enables Life Racing ECU units to directly claim access to the PDUx3's input and output channels in order to receive data from or else control those channels with ultra-low latency
Flexible outputs - of the 34 outputs there are 10 extremely flexible output drivers configurable to operate as high power high side power switching, as Half-bridge or paired into 5x Full-bridges, these 10 outputs can also be configured to operate as low-side PWM drivers.
The PDUx3's combined flexibility allows racing vehicle system designers the freedom to use these robust PDU output channels to perform high speed control tasks managed by any Life Racing ECU. Some examples of are, direct closed loop power control of electric engine coolant pumps, fuel and oil pump power, VVT position actuators (both motors and solenoids) and direct control of DBW systems.
The PDUx3 is capable of configurable soft starting of electrical loads as well as closed loop current limitation, this can be used to reduce large, short duration inrush current which can be generated when switching on large electrical loads such as high power radiator cooling fans.
Powerful Networking - 3x CAN 2.0b, 1x LIN as well as a two port Ethernet switch
Advanced Power Management - the PDUx3 can be user configured with options for simple on/off operation with the units main supply voltage. But is also capable of automatic wake/sleep operation which can be set to be triggered either by switching dedicated "wake" pin, or can be configured to wake on activation of inputs channels 13 to 16. The wake and sleep operation of the unit can also be controlled by CAN bus operation, wake on bus activity or upon receipt of a specific CAN message, all with fully user configurable address's and operational parameters as well as timeout settings for auto sleep.
Features
- Schematic based calibration including logic simulation and live monitoring
- I/O slaving to an LR ECU
- Low power state woken on physical input, CAN activity, or specific CAN frame
Outputs
- 34 main Power Outputs
- 10 multifunction high side, low side, PWM, H-Bridge outputs (40A continuous, soft-start inrush limiting 40A)
- 10 High Side outputs (40A continuous, hard-start inrush 125A)
- 14 High Side outputs (15A continuous, hard-start inrush 50A)
- Output teaming to support very high current devices
- 4 Additional Low Side Outputs (PWM capable)
- All outputs short circuit and thermally protected with multi-stage in-rush control
- Combined diagnostic output with reset input
- Up to 64 soft outputs via CAN
Inputs
- 16 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
- 8x frequency measurement inputs (4 optionally bi-polar)
- software selectable 3k ohm pull-up resistors
- 4x inputs capable of programmable “wake up” functionality
- Dedicated wake pin
- Up to 64 soft inputs via CAN with configurable validation and debounce time
Interfaces
- 2x 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
- 3x CAN 2.0B
- RS232C serial interface
- LIN Bus
Power Supply
- 6.5V to 20V input voltage (12V option)
- Dedicated logic power input
- Regulated 5V sensor supply output with short circuit protection
Physical
- 2 Leavyseal connectors with a total of 113 pins
- Amphenol SurLok Power Stud
- Machined Aluminium enclosure
- 210x130x57mm (including connectors)
- 850grams
- Operating Temperature up to +85C
Please note that the price is for the Life Racing PDUx3B unit only. Mating connectors are not included.
* 350 amp version is available as a special order product. Lead time does vary on 350A version.
