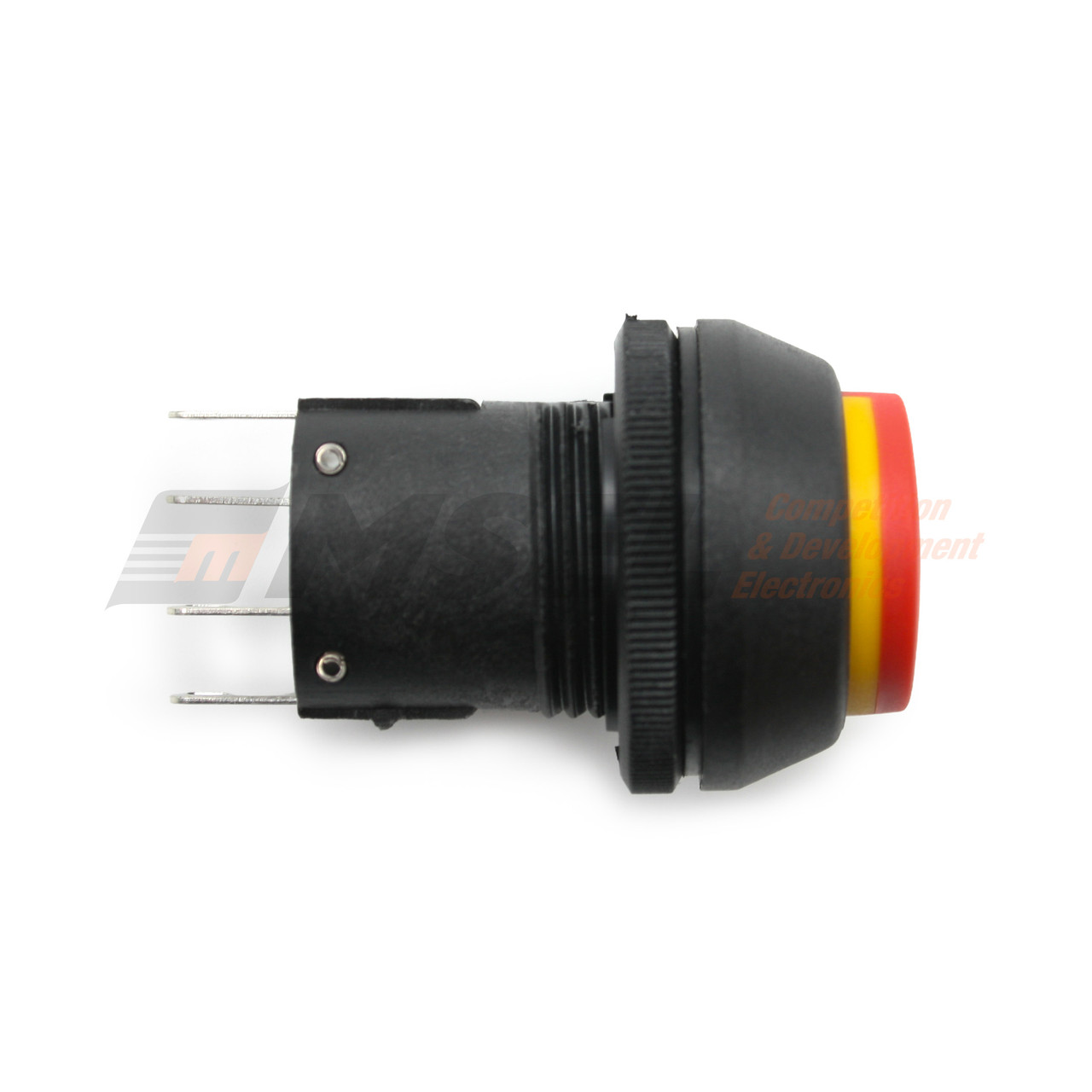

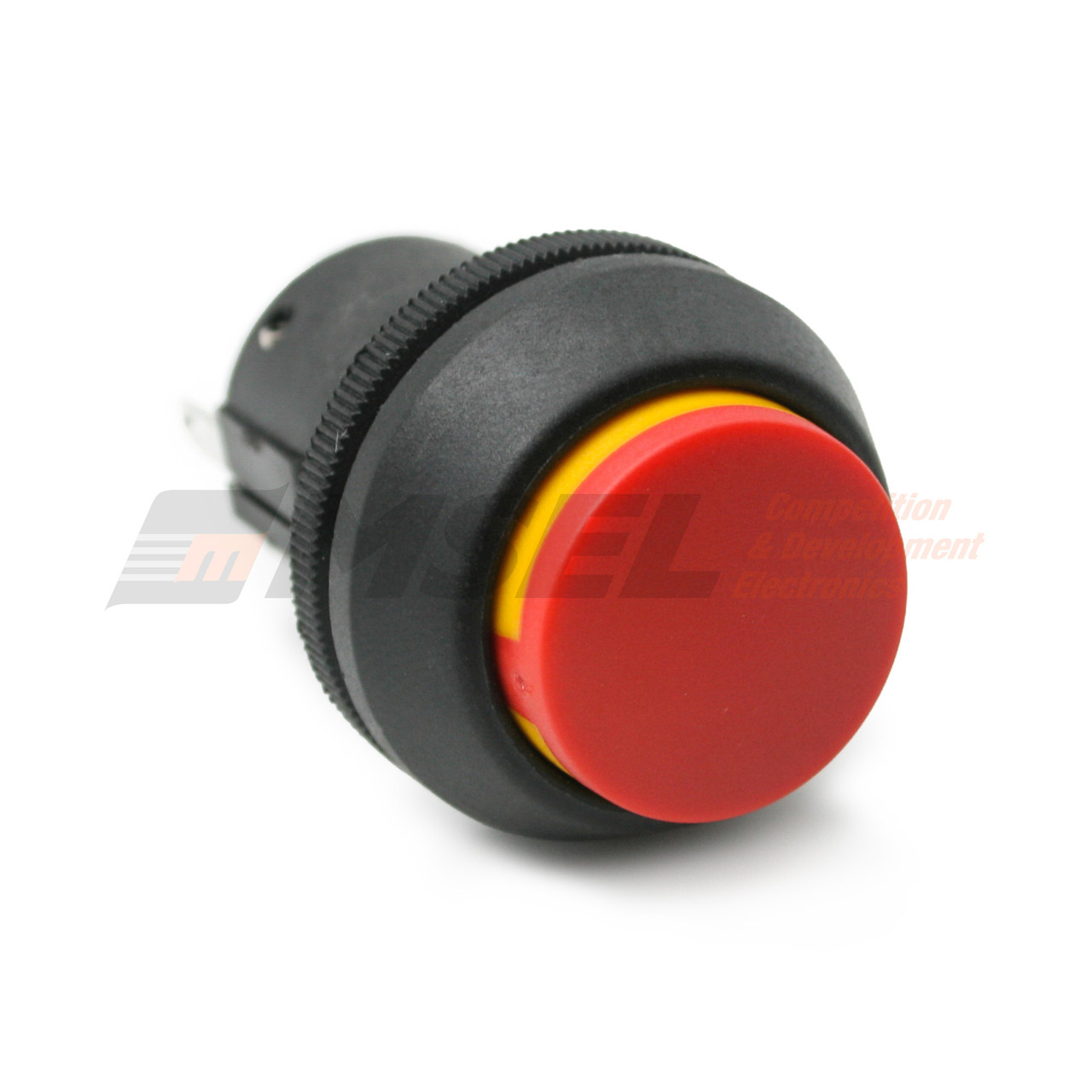

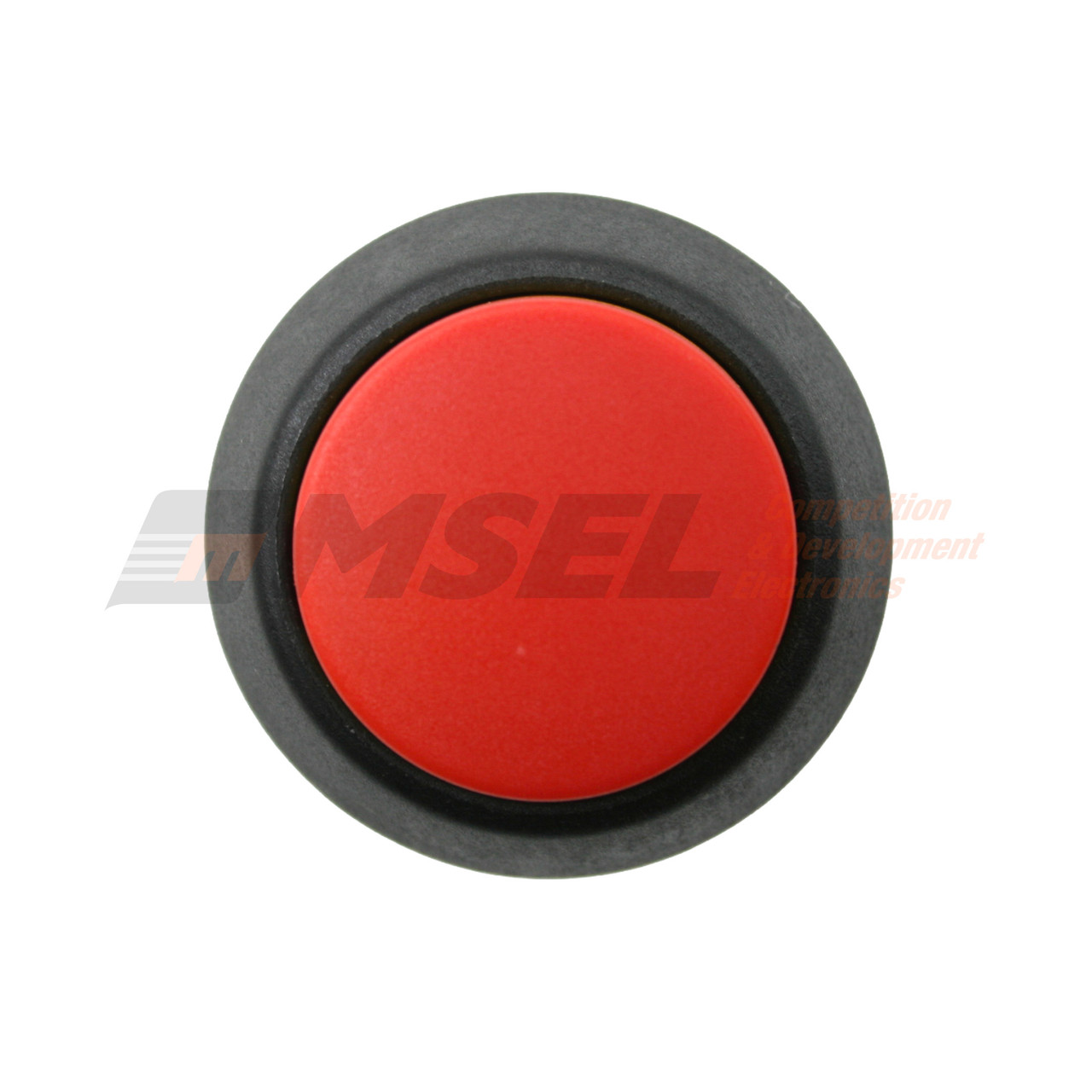

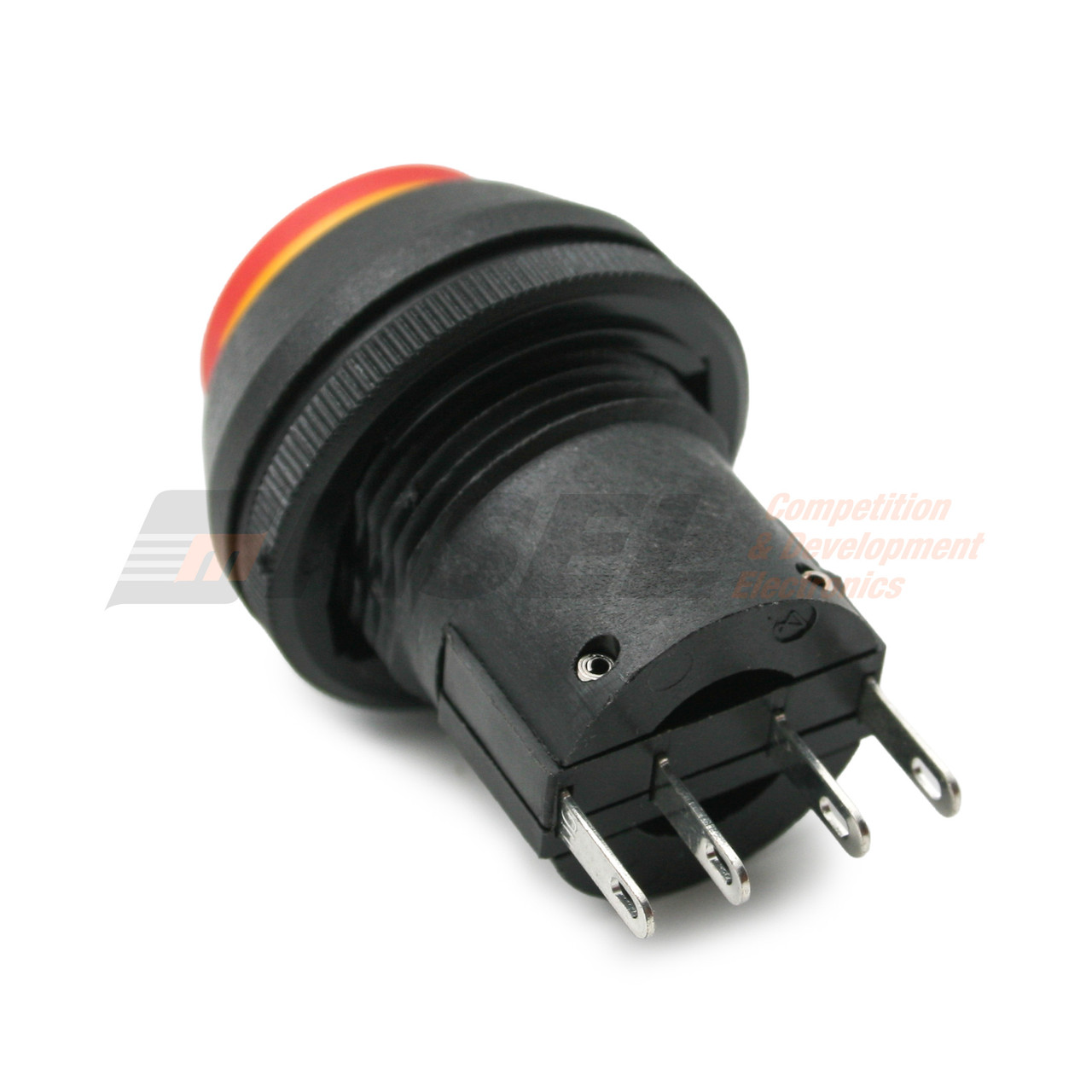

Latching Push Button Switch Sealed to IP67

SKU:
SWILATRED
Quantity Unit Price (Inc GST)
3 + $51.92 ($59.71)
10 + $46.15 ($53.07)
Per Unit
$57.69 ($66.34) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing. Shipping calculated at checkout.

Description

Sealed latching push button switch which is ideal as the external kill switch.

  • Switch Function Type:SPST
  • Contact Configuration:SPST
  • Max Contact Voltage AC:250V
  • Max Contact Current AC:10A
  • Terminal Type:Solder/Faston Terminals
  • Actuator / Cap Colour:Red
  • SVHC:No SVHC
  • Behind Panel Depth:27.4mm
  • Bezel Diameter:30mm
  • Colour:Red / Yellow
  • Contact Material:Fine Silver
  • Contact Resistance:25mohm
  • Current Rating:10A
  • Dielectric Strength, VAC:1000V
  • External Depth:40.6mm
  • External Length / Height:30mm
  • IP Rating:IP67
  • Insulation Resistance:1Gohm
  • Material:PBT
  • Max Operating Temperature:105øC
  • Max Panel Thickness:6mm
  • Min Temperature Operating:-40øC
  • Mounting Type:Panel Mounting
  • No. of Electrical Operations:100000
  • No. of Mechanical Operations:100000
  • No. of Poles:1
  • Operating Force:12N
  • Panel Cut-out Diameter:22.5mm
  • Resistive Current Rating:10A
  • Travel:3.5mm
