Description
Hellermann 120-41-G Straight Boot With Lip
HellermannTyton, Helashrink 120 series bottle shape, straight boot with lip - non glued
This style has a long tail providing extended strain relief for small diameter wires
Application
Heat shrinkable moulded shape for use in electrical and electronic cable harness applications.

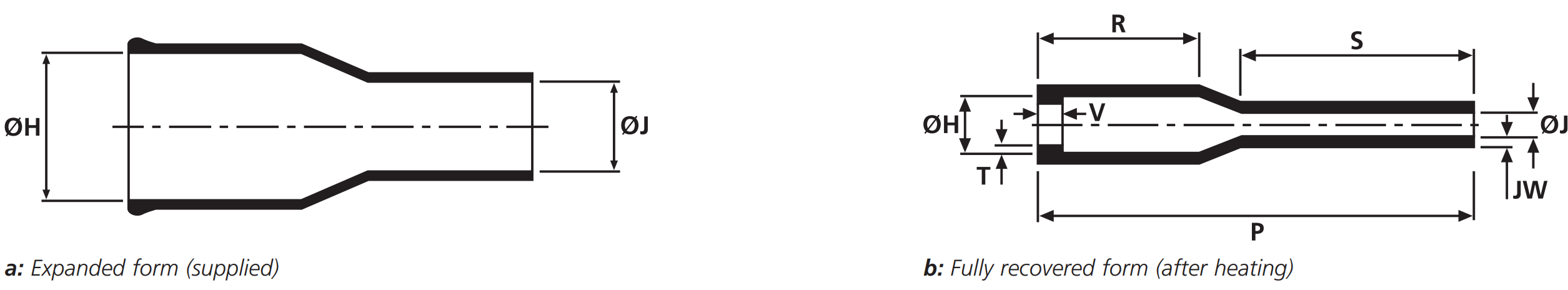

Product Dimensions
|
ØH
min. a
|
ØH
max. b
|
ØJ
min. a
|
ØJ
max. b
|
P
+/- 10%
|
R
max.
|
JW
+/- 20%
|
V
+/- 10%
|
S
nom
|
| 16.5 | 7 | 10.7 | 3.0 | 38.0 | 24.0 | 1.3 | 3.0 | 32 |
Note: all dimensions are in millimeters (mm)
Additional Product Information
Note that this boot is not pre-glued. Glue such as Resintech RT125 is recommended.
|
Feature
|
Specification
|
| Material | Polyolefin, cross-linked (PO-X) |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 202K111 |
