Description

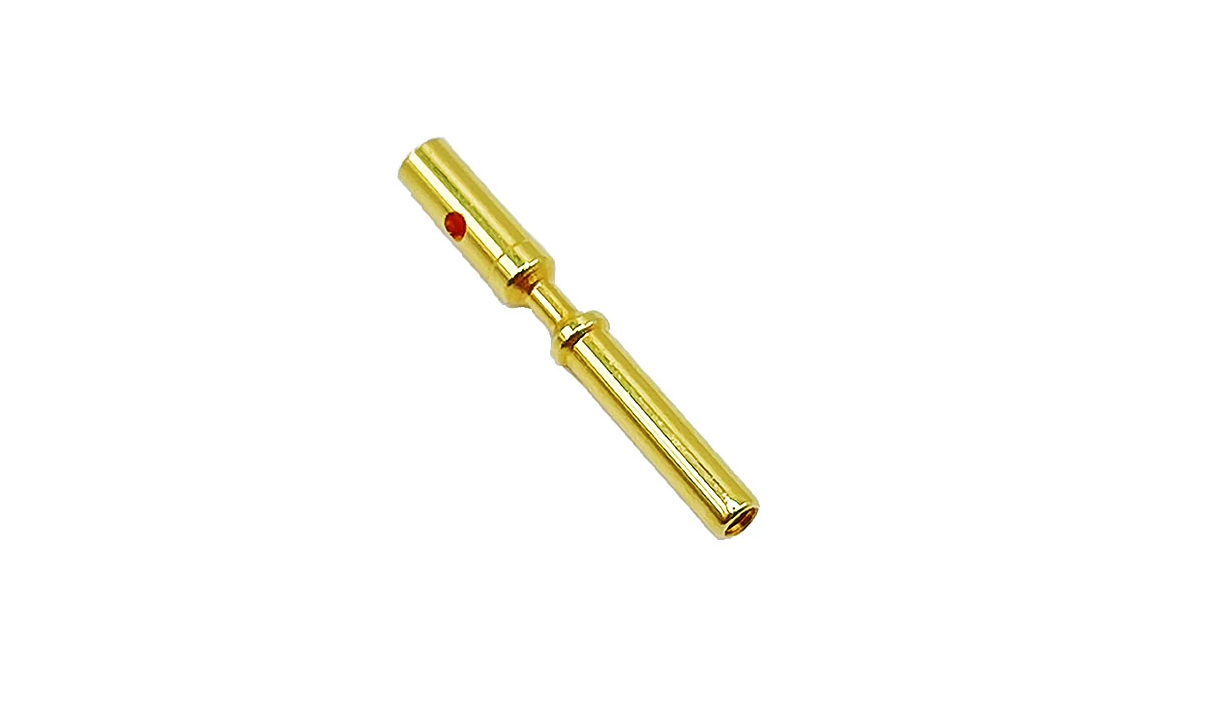

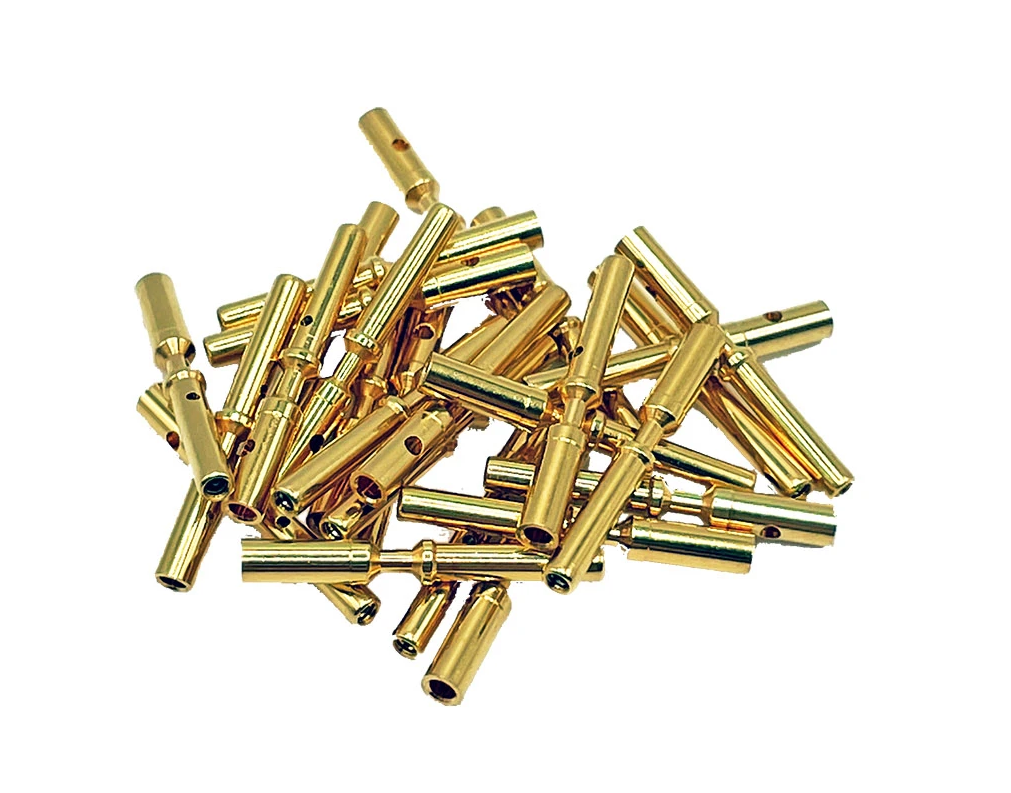

Gold plated solid formed Superseal 1.0 contact for 24 to 16AWG Wire
Crimp contacts quicker with improved quality control. Only one size terminal required for all wire sizes.
- Accepts 16-24AWG M22759/32 and similar specification wire
- Exceeds the ampacity rating of the Superseal 1.0 contact system
- Tested to (100) mating cycles with:
- Less than a 0.04 mV drop
- Less than 0.05 mΩ resistance change
- Provides superior pin engagement
- Gold plated
- Inspection hole
- 1-Piece design (hoodless)
- Direct replacement for AMP Superseal 1.0 contacts
- Recommended to be used with MSEL backshells and a HellermannTyton boot for adequate strain relief
- Fits genuine AMP Superseal 1.0 connectors (MoTeC, Haltech, Emtron, Link, Holley, FuelTech, etc)
- Higher quantity breaks are available, please contact us for more information
This contact is desiged to be used with the DMC Tools MH860 frame and RS locator / positioner.
No testing has been done for other crimp tool frames or locators and we do not advise on the use of any other tooling to terminate this contact other than the combination specified above. No warranty is expressed or implied should non-specified tooling be used.
