Description

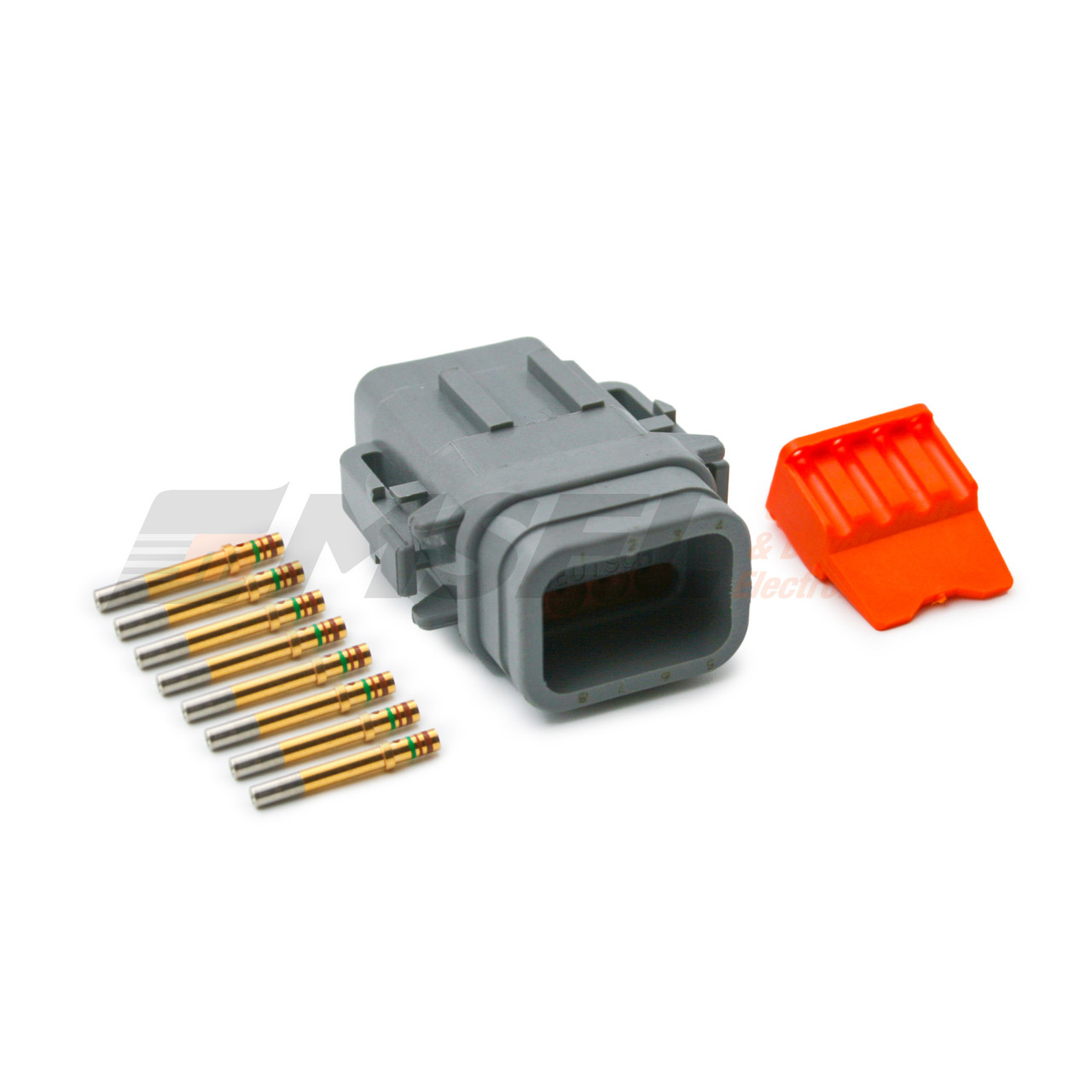

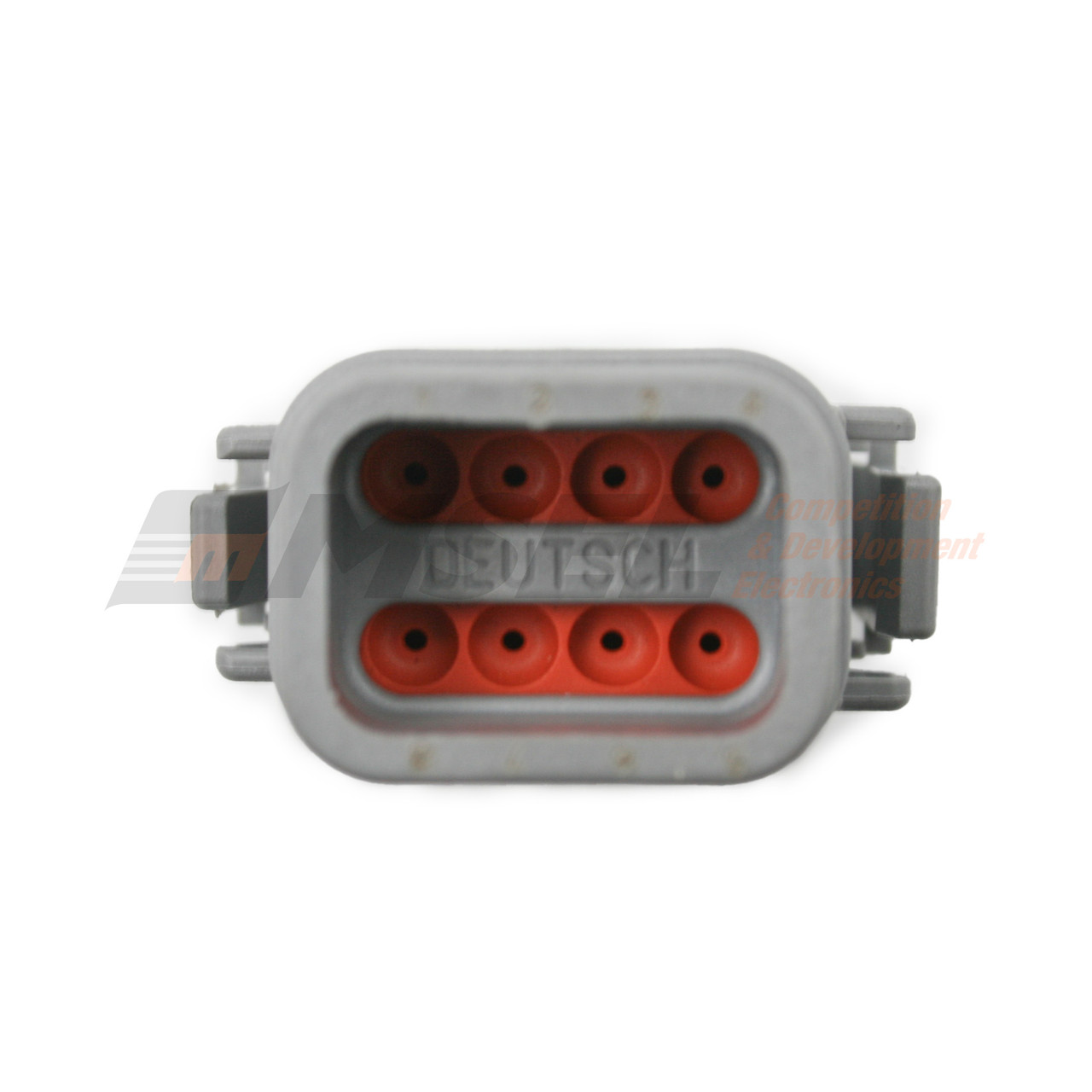

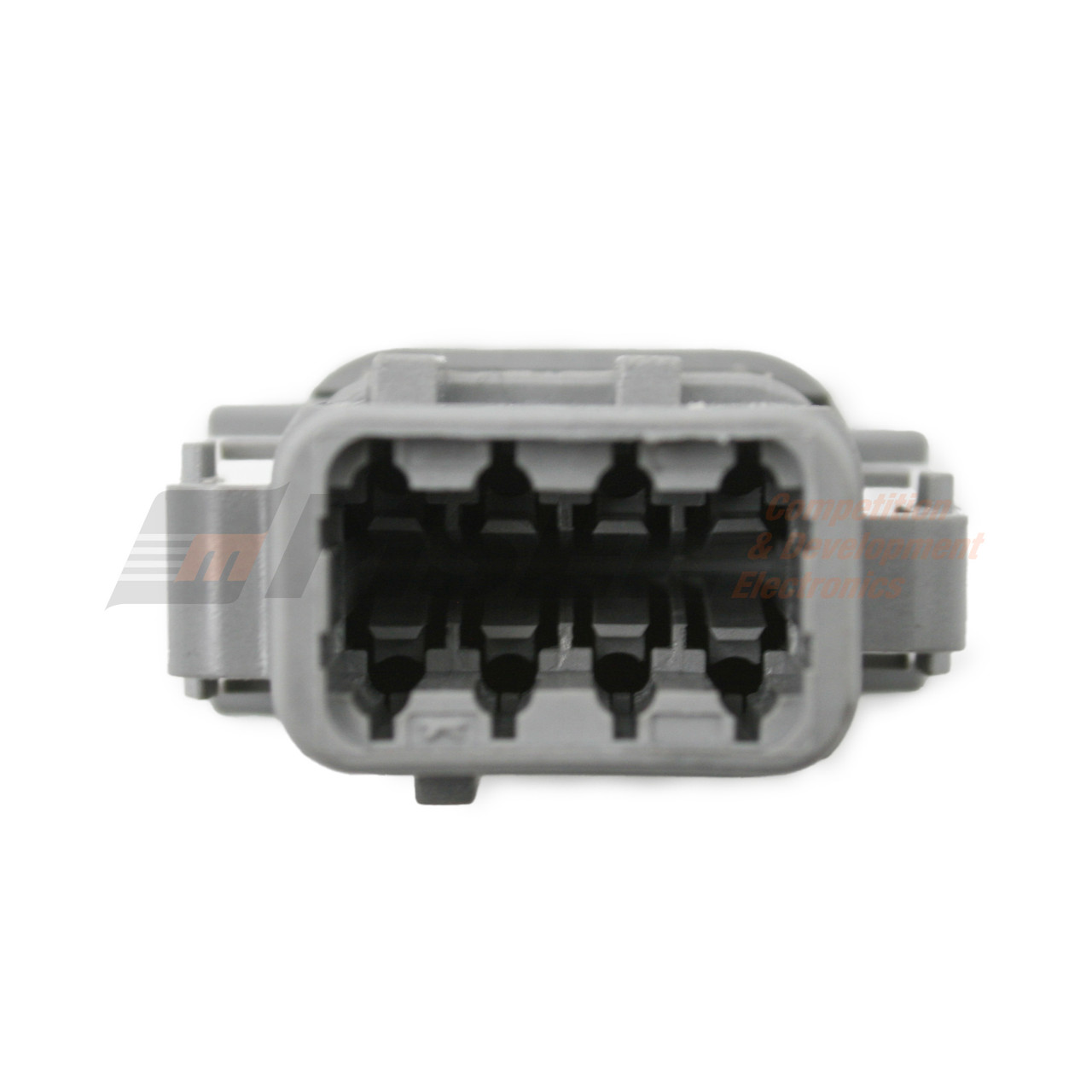

Deutsch DTM 8-Way Plug Kit
- Genuine TE / Deutsch
- Includes Connector, Locking Wedge, and Terminals
- Gold Plated Size 20 DTM Terminals
- See the related products for the receptacle kit, full kit containing both sides of the connector, and filler pins
Deutsch DTM connectors are widely used in automotive, motorsport, and industrial applications because of their compact,
reliable, and versatile design that is cost-effective and proven to perform under harsh environments with integrated silicone seals.
Available in multiple configurations (2,3,4,6,8, and 12-pin layouts) to provide consistency in performance and visual aesthetics.
Value Features
| OEM Deutsch Connector Part Numbers |
| With Backshell: | DTM06-08SA-E007 |
| Without Backshell: | DTM06-08SA |
Key Features
| General |
| Sealing: | Matte Sealed |
| Number of Ways: | 8 |
| Contact Size: | Size 20 |
| Wire Size: | 20AWG - 24AWG |
| Number of Rows: | 2 |
| Pitch: | 4.2mm |
| Row Spacing: | 7.1mm |
| Numbered Cavities: | Yes, numbered |
| Mechanical |
| Contact Type: | Female Socket, Circular |
| Termination: | Multi-option |
| Lance Type: | Housing Lance |
| Housing Material: | PA66+GF |
| Seal Material: | Silicone Rubber |
| Mounting Style: | Free hanging |
| TPA: | Yes |
| CPA: | No |
| Electrical |
| Current Rating[1]: | 7.5A |
| Voltage Rating: | 250V (AC,DC) |
| Environmental |
| Temp Range[2]: | -55 - 125°C |
| Protection Rating: | IP68, IP6K9K with Filler Pins Installed |
| Flammability Range: | UL94 V-0 |
[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
[2] Temperature range is for reference only, and may/may not include temperature rise. For detailed characteristics, see applicable product documents.

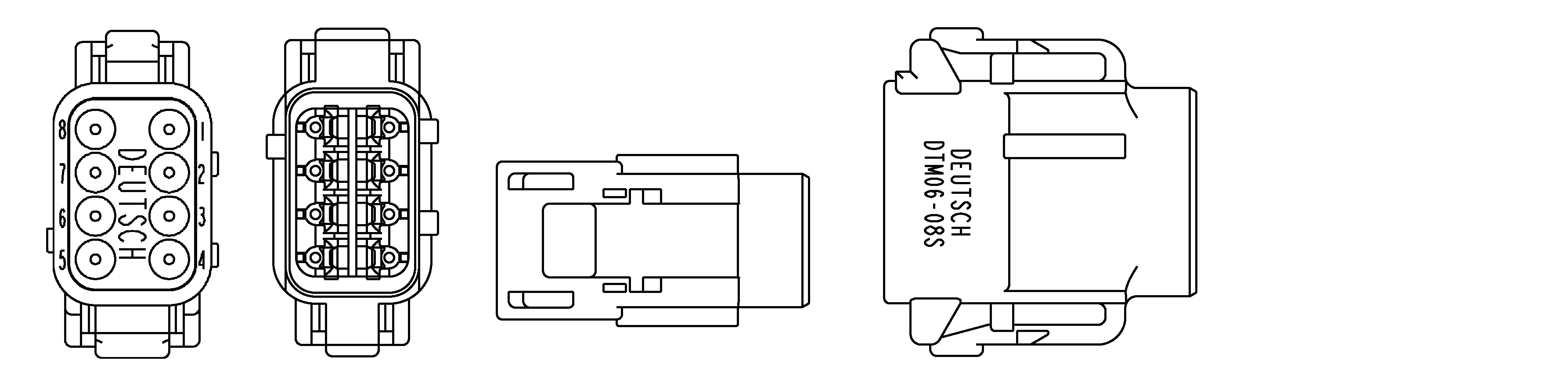

With Backshell

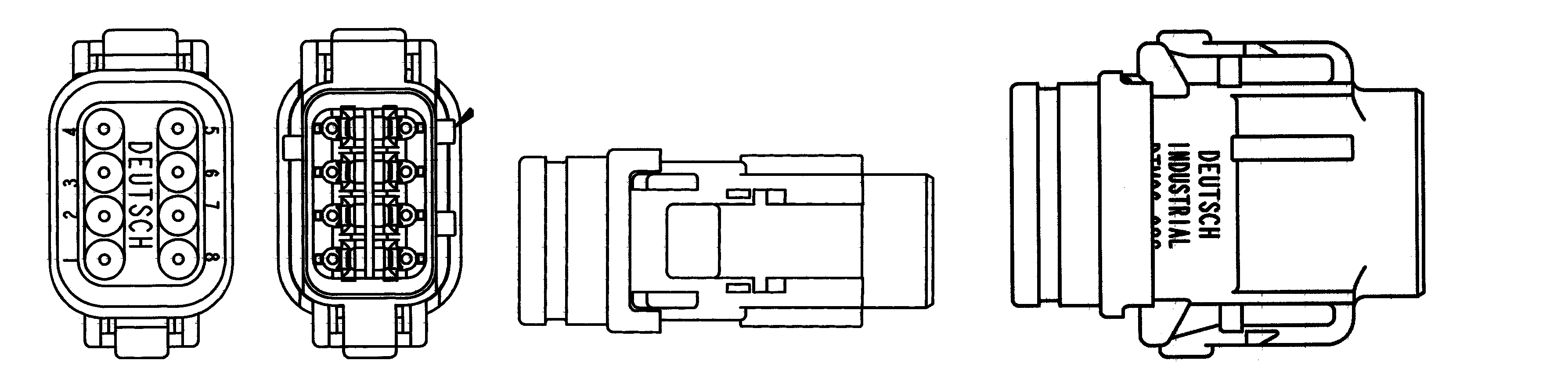

Without Backshell
