Deutsch Autosport Lite 5-Way Plug Connector with size 23 Pins - Blue

SKU:
CONASL60605PB
Quantity Unit Price (Inc GST)
3 + $69.44 ($79.86)
10 + $65.79 ($75.66)
  • ASL60605PB Deutsch Autosport Lite 5-Way Plug Connector Blue kit
  • ASL60605PB Deutsch Autosport Lite 5-Way Plug Connector Blue
Per Unit
$73.10 ($84.07) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

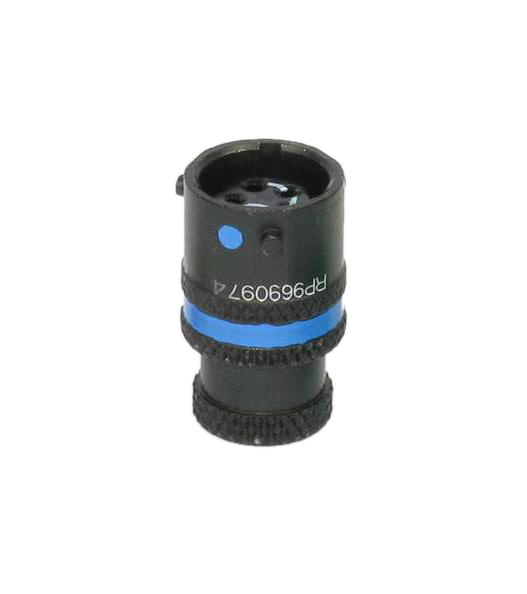

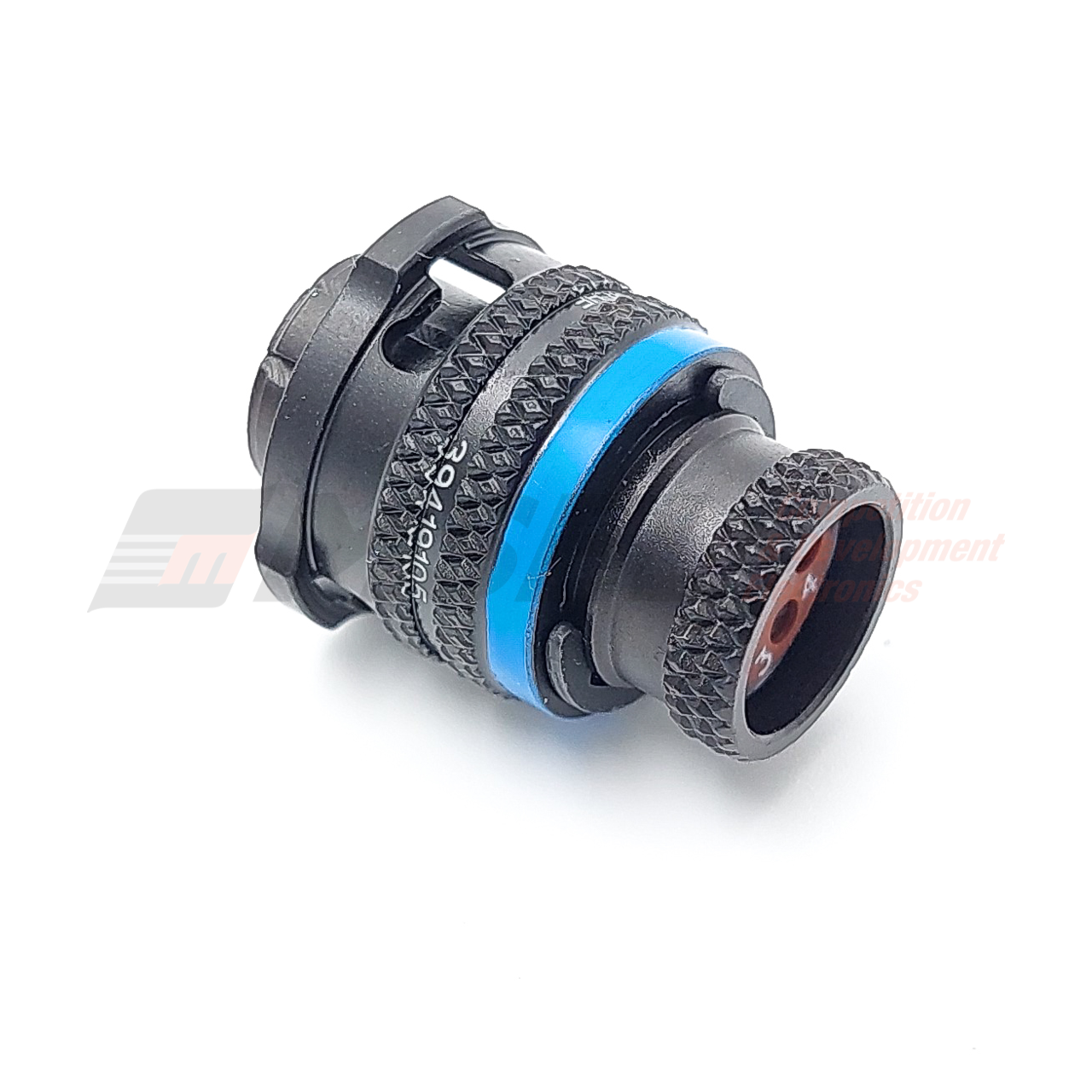

Deutsch Autosport Lite 5-Way Plug Connector with size 23 Pins - Blue

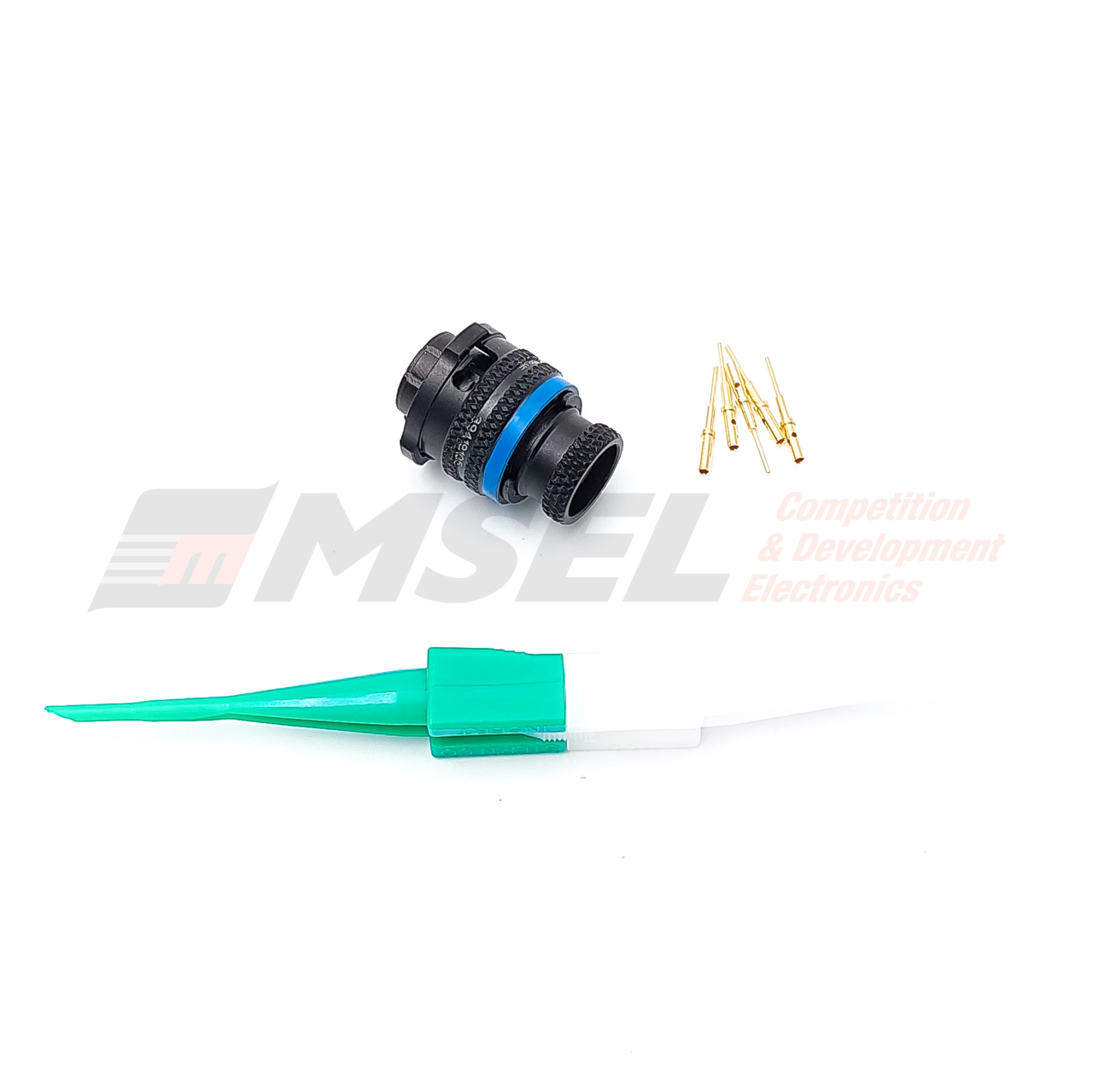

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.

Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.

Feature Specification Notes
 Part Number  60605PB
 Connector Type  Plug
 Shell Size
06

 Orientation  Blue (B)  Will only mate with blue connectors
 Number of Contacts  5
 Contact Size  23
 Contact Type  Pin  Male
 Current Rating  3 Amps
 Termination Type  Crimp
 Locator  TOOLOC1413  Refer to Related Products below (not incl.)
 Kit Contains
connector housing, contacts and insert/removal tool

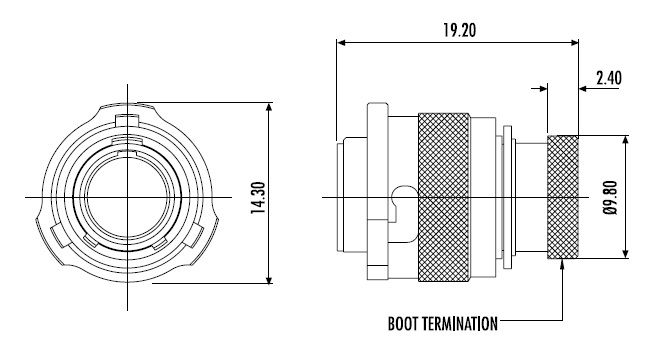

Note: all dimensions are in millimeters (mm)
