Deutsch Autosport Lite 5-Way Inline Receptacle with size 23 Sockets - Orange

SKU:
CONASL10605SC
Quantity Unit Price (Inc GST)
3 + $93.97 ($108.07)
10 + $89.03 ($102.38)
Per Unit
$98.92 ($113.76) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

Deutsch Autosport Lite 5-Way Inline Receptacle with size 23 Sockets - Orange

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.

Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.

Feature Specification Notes
 Part Number  10605SC
 Connector Type  Receptacle
 Shell Size

06


 Orientation  Orange (C)  Will only mate with orange connectors
 Number of Contacts  5
 Contact Size  23
 Contact Type  Socket Female
 Current Rating  3 Amps
 Termination Type  Crimp
 Locator  TOOLOC1414  Refer to Related Products below (not incl.)
 Kit Contains
connector housing, contacts and insert/removal tool

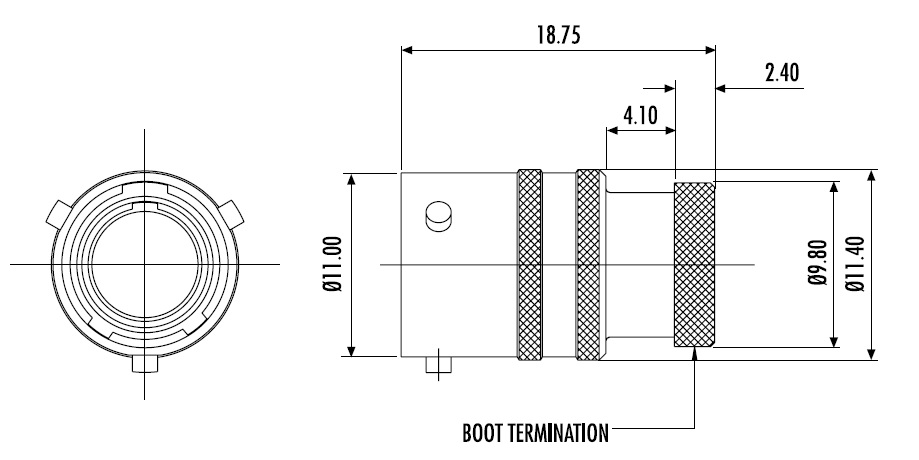

Note: all dimensions are in millimeters (mm)
