Description

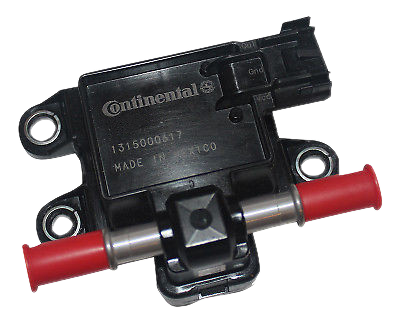

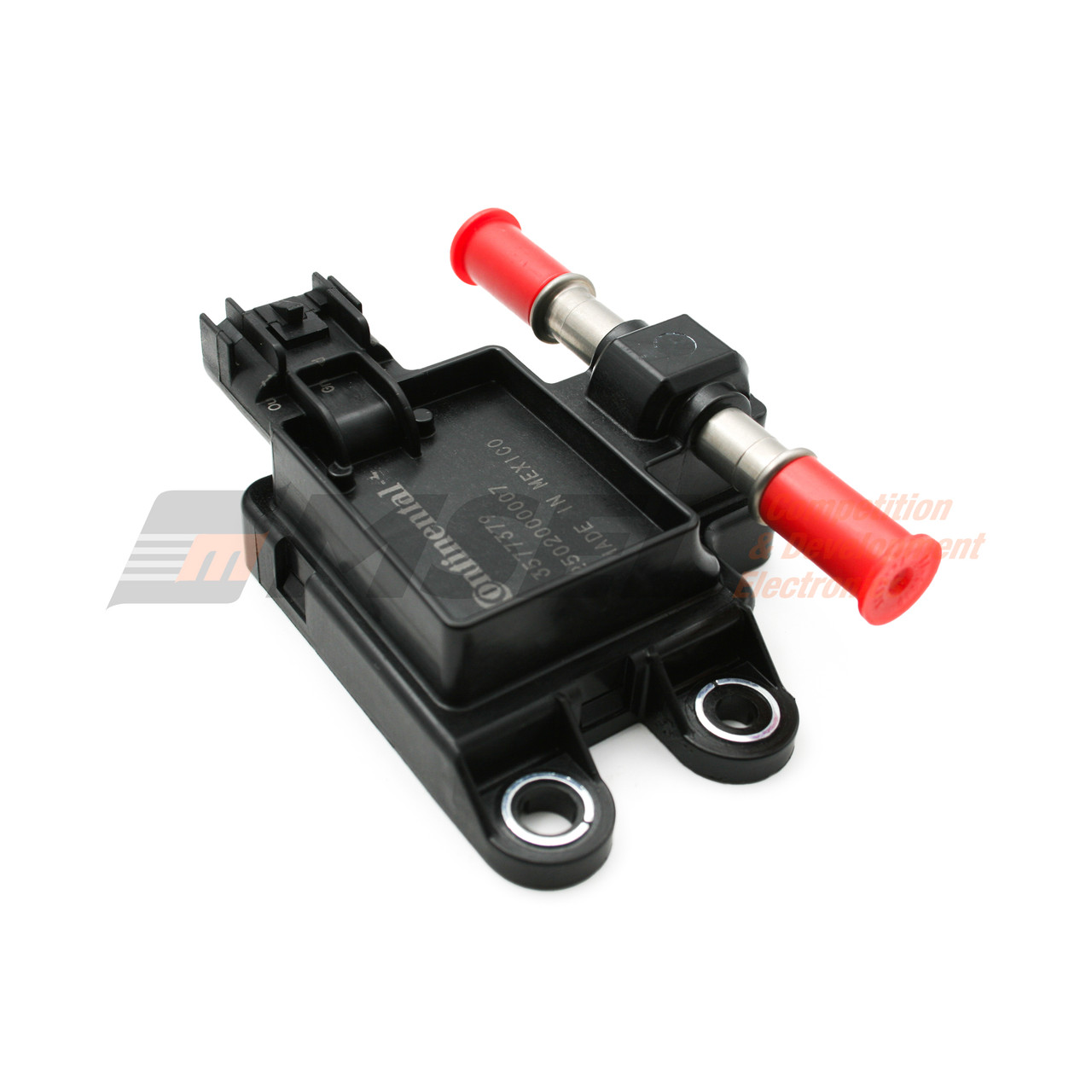

Genuine Continental E85 Flex Fuel Ethanol Content Sensor
Measures the ethanol content and temperature of the fuel flowing through the sensor. Helpful when setting up an ECU for flex fuel control such as the MoTeC M1 series (see guide here) along with most other aftermarket engine management systems.
We recommend this ethanol content sensor be fitted in the return line if you are not running a returnless fuel system.
Specifications:
Ethanol Content Calibration:
| Frequency (Hz) | 50 | 150 |
| Ethanol Content (%) | 0 | 100 |
Fuel Temperature Calibration:
| Pulse Width (ms) | 1 | 5 |
| Fuel Temperature (C) | -40 | 125 |

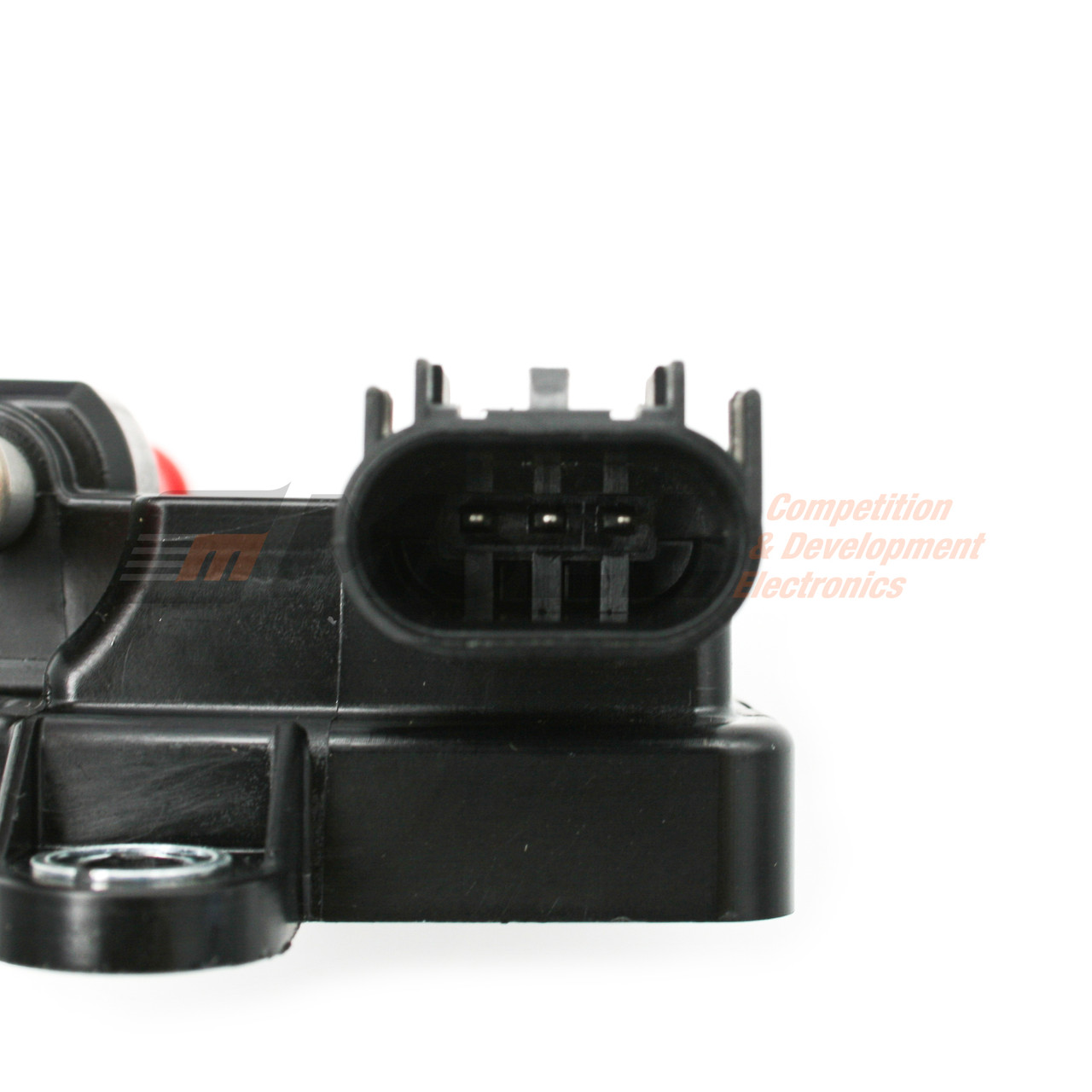

Pinout:
Connector sold seperately (click here.)
Accessories (sold separately)
- 3/8" Female Quick Disconnect Fuel Line to Dash 6AN Male Adapter click here.
- 3/8" Female Quick Disconnect Fuel Line to Dash 8AN Male Adapter click here.
