Description

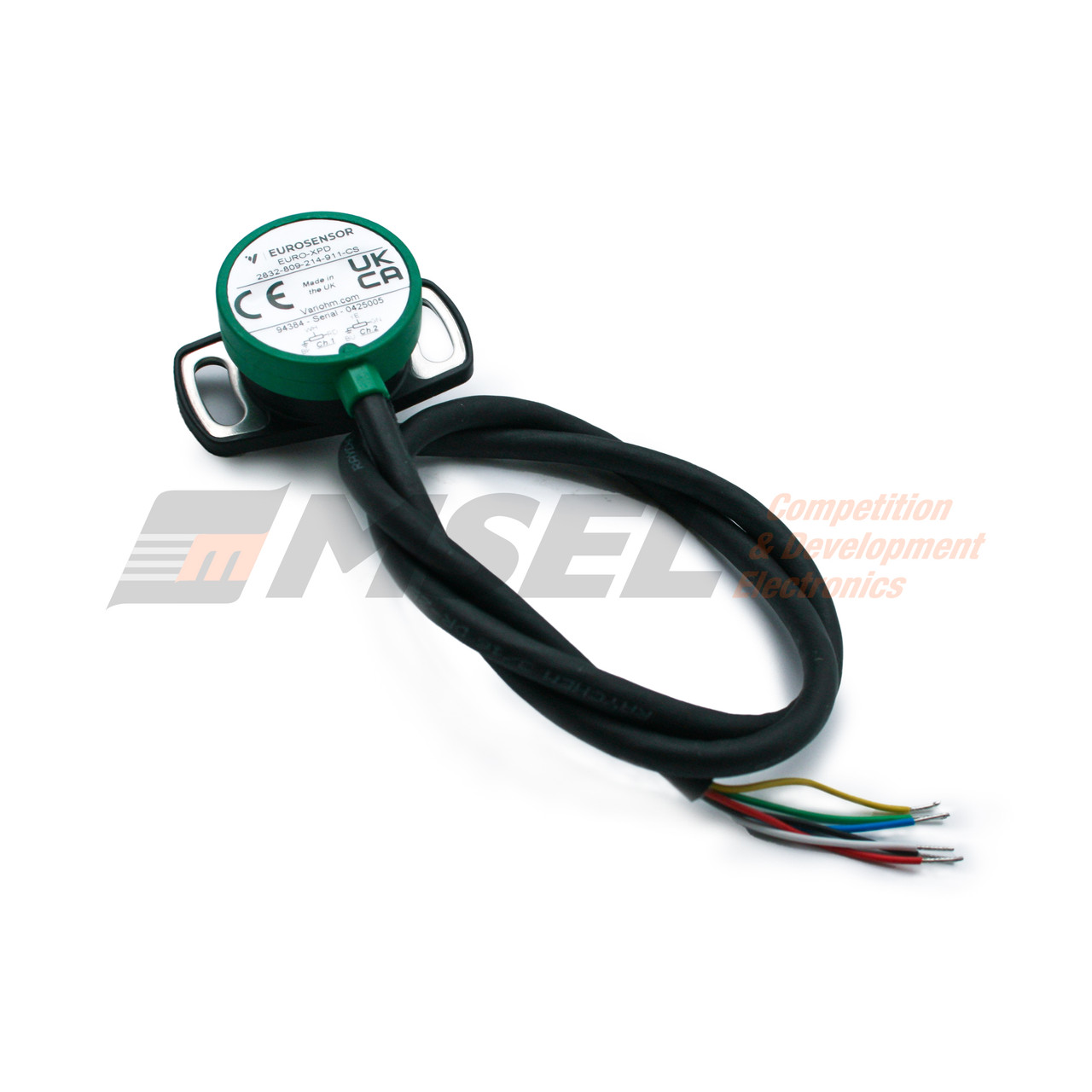

Contactless 32mm Dual Track D-Drive Rotary Sensor for Tilton Pedal Boxes
Ideal for measuring throttle position on drive by wire throttle bodies.
This sensor features dual-track redundancy and a durable mechanical life exceeding 50 million movements. With redundant output this compact and contactless hall effect sensor features IP68 sealing and will suit arduous high-duty cycle position feedback applications in all areas of motorsports.
Features
Mechanical
| Typical Life Cycle | >50 million movements (restriction by mechanics) |
| Torque | < 0.1 Ncm |
| Measuring Range | 360º redundant, signal 1 cw, signal 2 ccw |
| Housing | High Grade Temperature Resistant Plastic |
| D-Shaft | Nylon 66 |
| Tightening Torque | Maximum recommended tightening Torque 2Nm |
| Mounting | Customer to ensure correct suitability and fitment of mounting bolts |
Environmental
| Operating Temperature | -40°C to +125°C (Short Term 150°C) |
| Vibration | 20...2000 Hz; Amax = 0.75 mm; amax = 31.4 g to IEC 60068-2-6 |
| IP Rating | IP68 (minimum) |
Electrical
| Supply Voltage | 5V +/- 0.5V |
| Output Signal | Ratiometric 5%...95% of supply (+/-25mv of specified electrical output range for both start & end voltage) PWM frequency 100Hz… 1000Hz, 1000Hz default, duty cycle between 5%-95% |
| Independent Linearity | +/- 0.5% of each signal range |
| Isolation Resistance | 200 MΩ (500 VDC, 1 bar, 2s) |
| Cable Type | Raychem Spec 55, 24 AWG; Sleeving - Raychem DR25 |
| MTTFd | 370 years |
Wiring
Sensor Dimensions

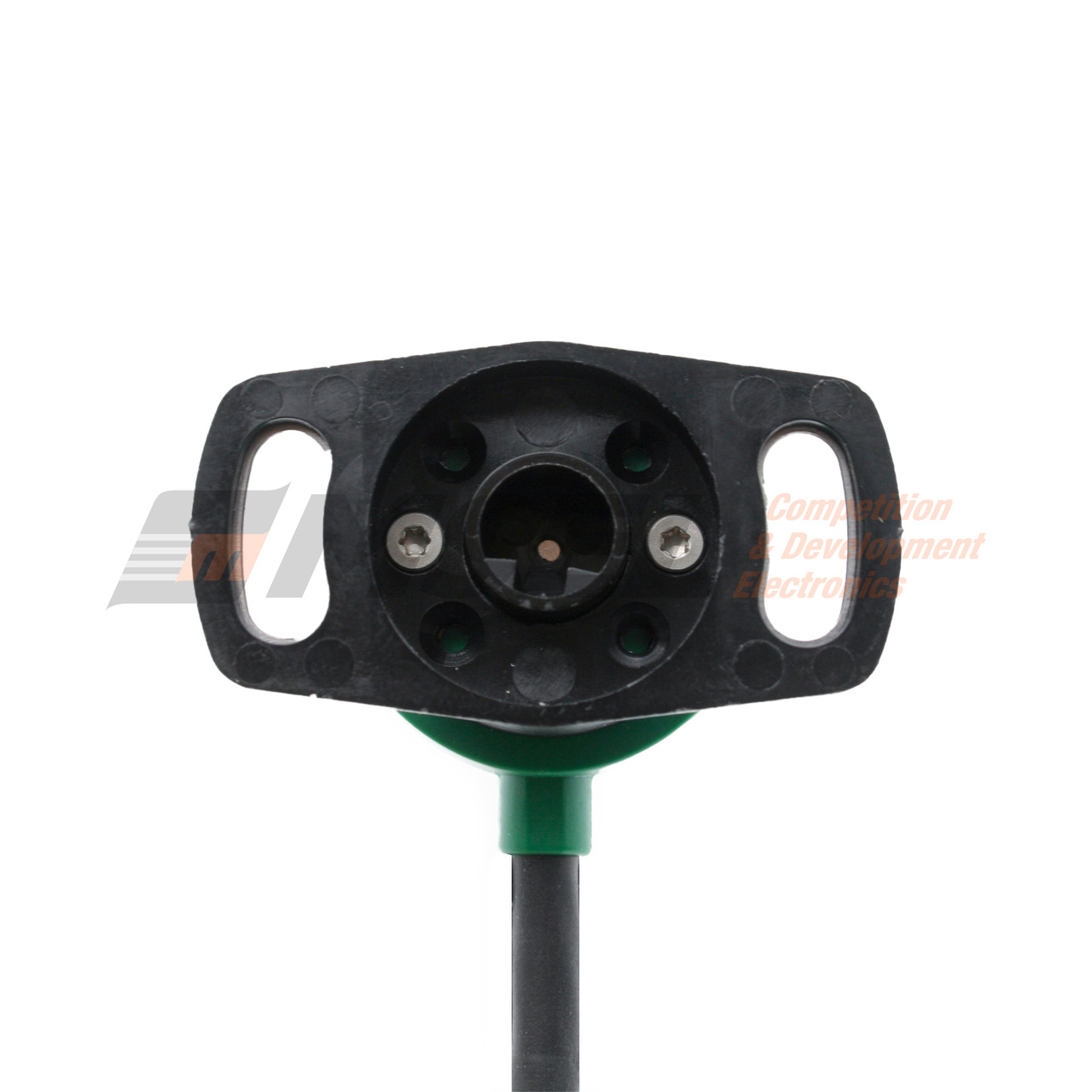

Mating 8mm D-Shaft detail
