Description

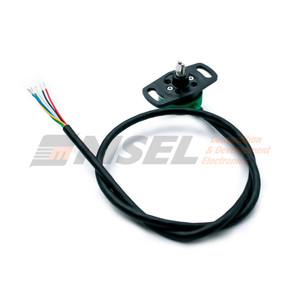

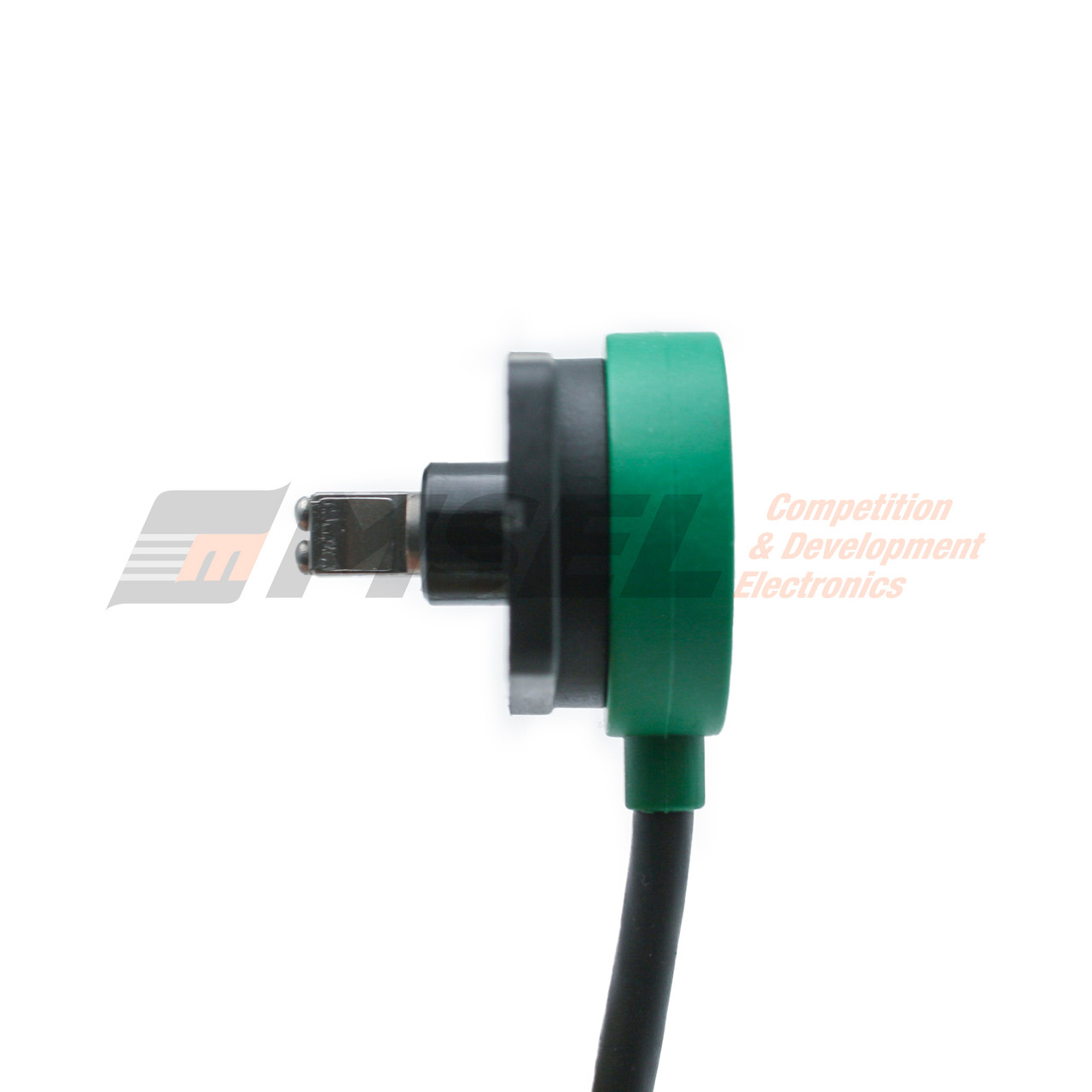

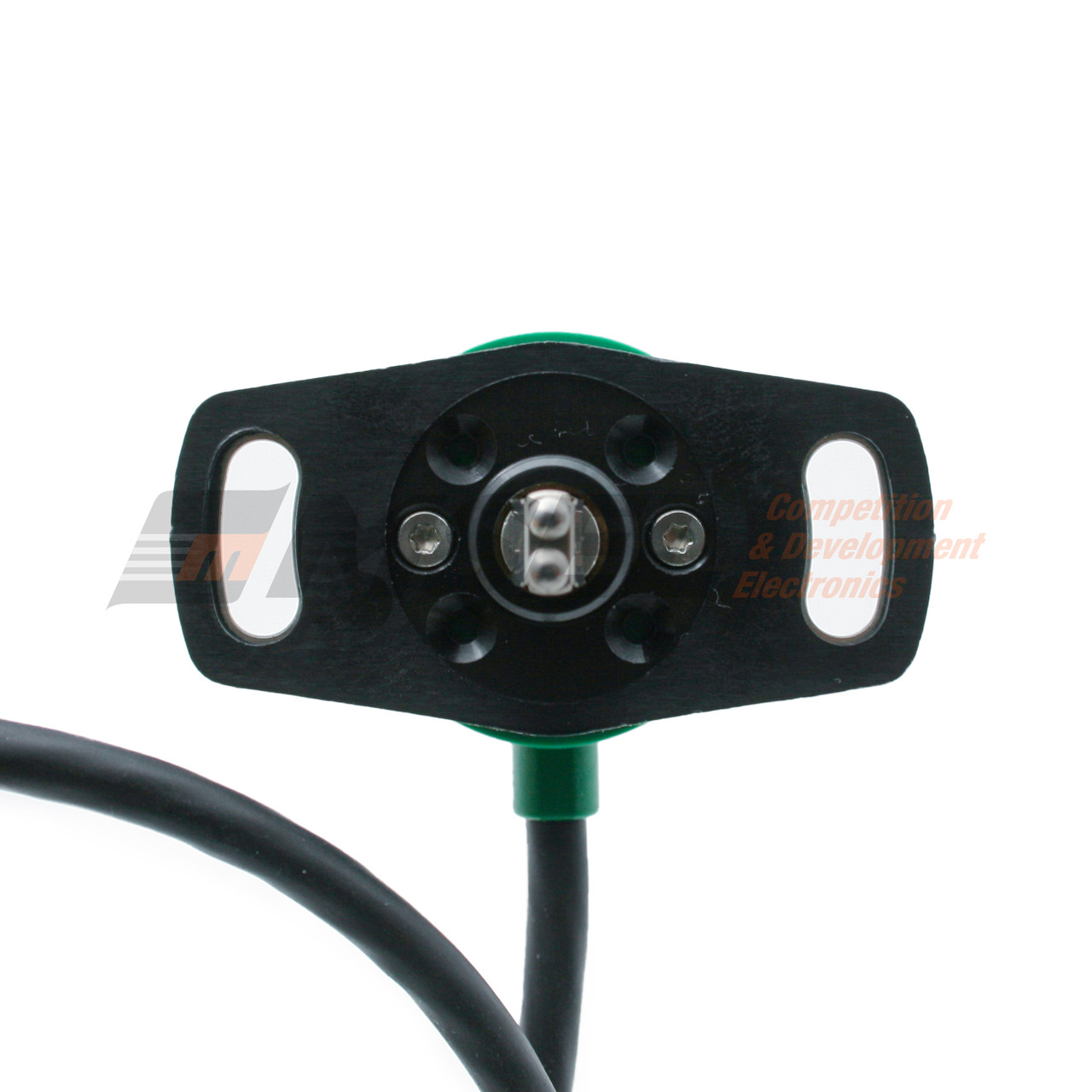

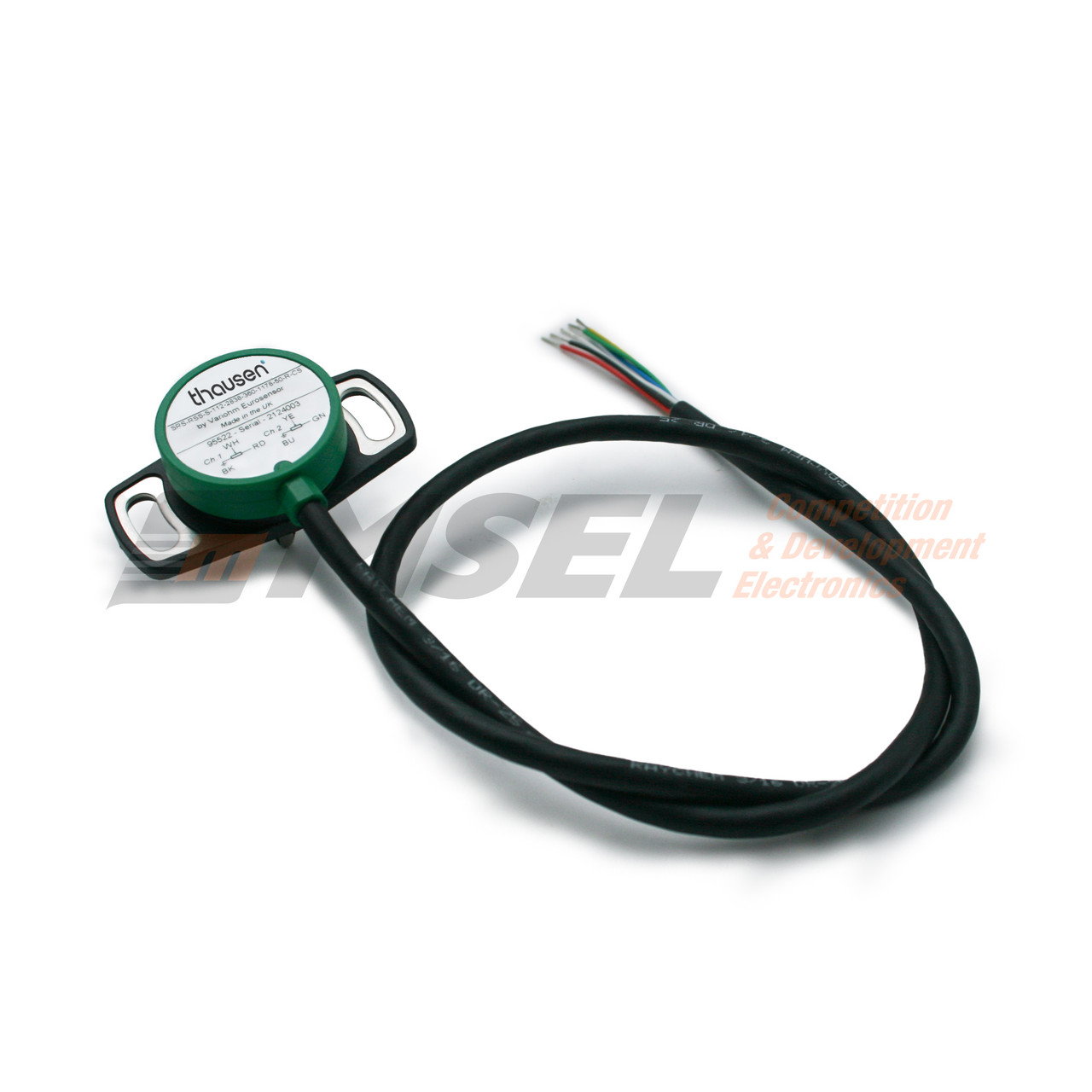

Contactless 32mm Dual Track 40 Degree Male Spring Drive Rotary Sensor
Ideal for measure throttle pedal position on drive by wire systems with its dual tracks and high reliability.
This sensor features dual-track redundancy and a durable mechanical life exceeding 50 million movements. The Spring Drive shaft allows it to adapt to various gearbox configurations and mounting requirements to ensure precision feedback in gearbox applications.
Features
Mechanical
| Typical Life Cycle | >50 million movements (restriction by mechanics) |
| Torque | < 0.8 Ncm |
| Measuring Range | 40º redundant, signal 1 cw, signal 2 ccw |
| Max. Operating Speed | 120 U/min |
| Housing | High Grade Temperature Resistant Plastic |
| Bearing | Oilite |
| Shaft | Stainless Steel - 316 Spring Coupling |
| Tightening Torque | Maximum recommended tightening Torque 2Nm |
| Mounting | Customer to ensure correct suitability and fitment of mounting bolts |
Environmental
| Operating Temperature | -40°C to +125°C (Short Term 150°C [DR25 Cable]) & -40°C to +85°C (Short Term 90°C[Low Temp PUR Cable]) |
| Vibration | 20...2000 Hz; Amax = 0.75 mm; amax = 31.4 g to IEC 60068-2-6 |
| IP Rating | IP68 (minimum) |
Electrical
| Supply Voltage | 5V +/- 0.5V |
| Output Signal | Ratiometric 5%...95% of supply (+/-25mv of specified electrical output range for both start & end voltage) PWM frequency 100Hz… 1000Hz, 1000Hz default, duty cycle between 5%-95% |
| Independent Linearity | +/- 0.5% of each signal range |
| Isolation Resistance | 200 MΩ (500 VDC, 1 bar, 2s) |
| Repeatability | <= 0.2% (dependent on mounting tolerances) |
| Cable Type | Raychem Spec 55, 24 AWG; Sleeving - Raychem DR25& FEP, 24 AWG; Sleeving- PUR |
Wiring

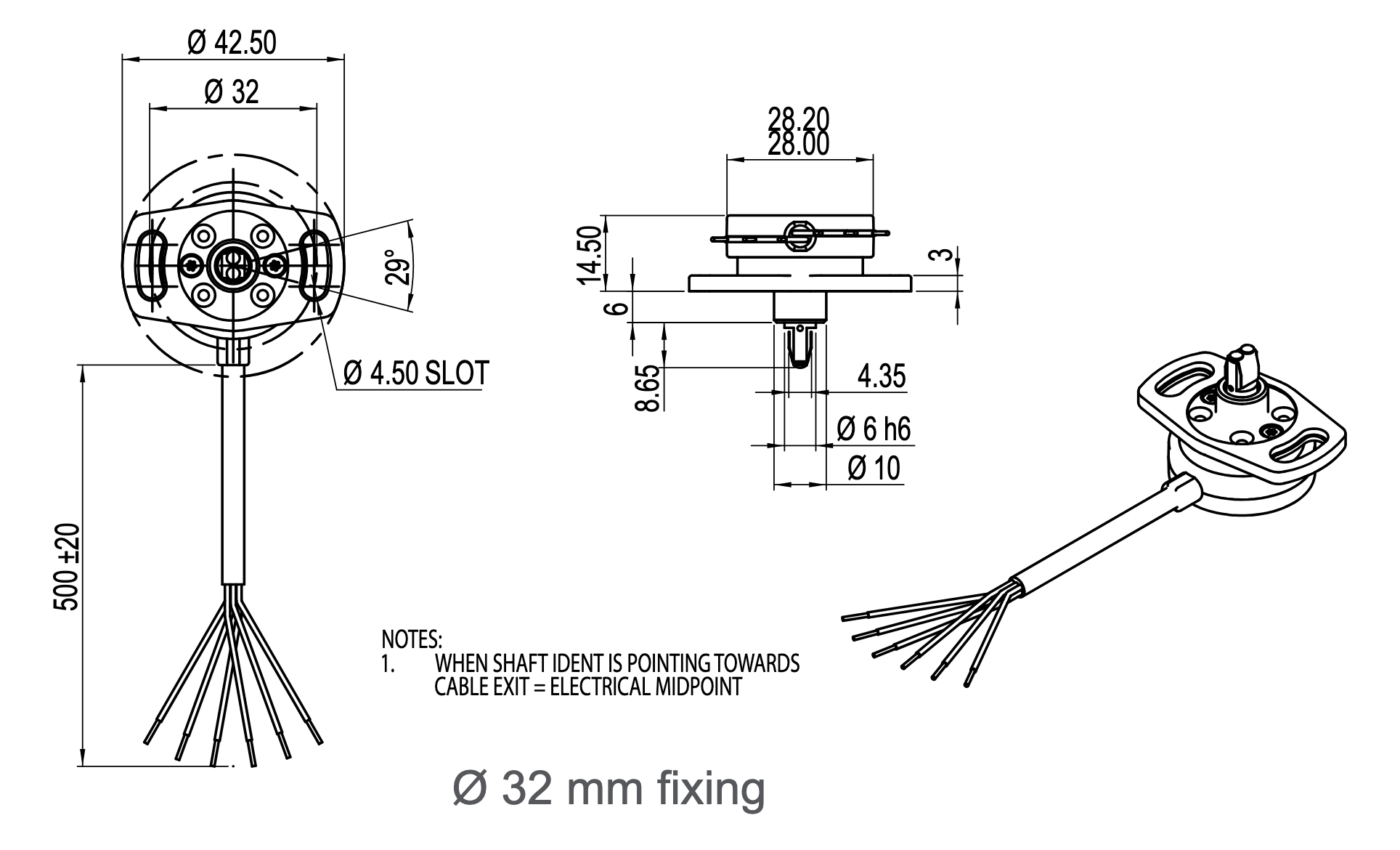

Sensor Dimensions
Recommended Installation Guide
