Description
The Motec CDL3 is a fully configurable backlit display and logger. It offers the same quality and advanced technology as Motec's top of the line systems, designed for club level motorsport activities. Now includes logging and all inputs and outputs activated as standard.
Specifications:
Communications
- 2 x Configurable CAN or RS232 bus with individually programmable CAN bus speeds
- 1 x Dedicated RS232
- Includes serial and CAN templates for most common ECUs on the market
Physical

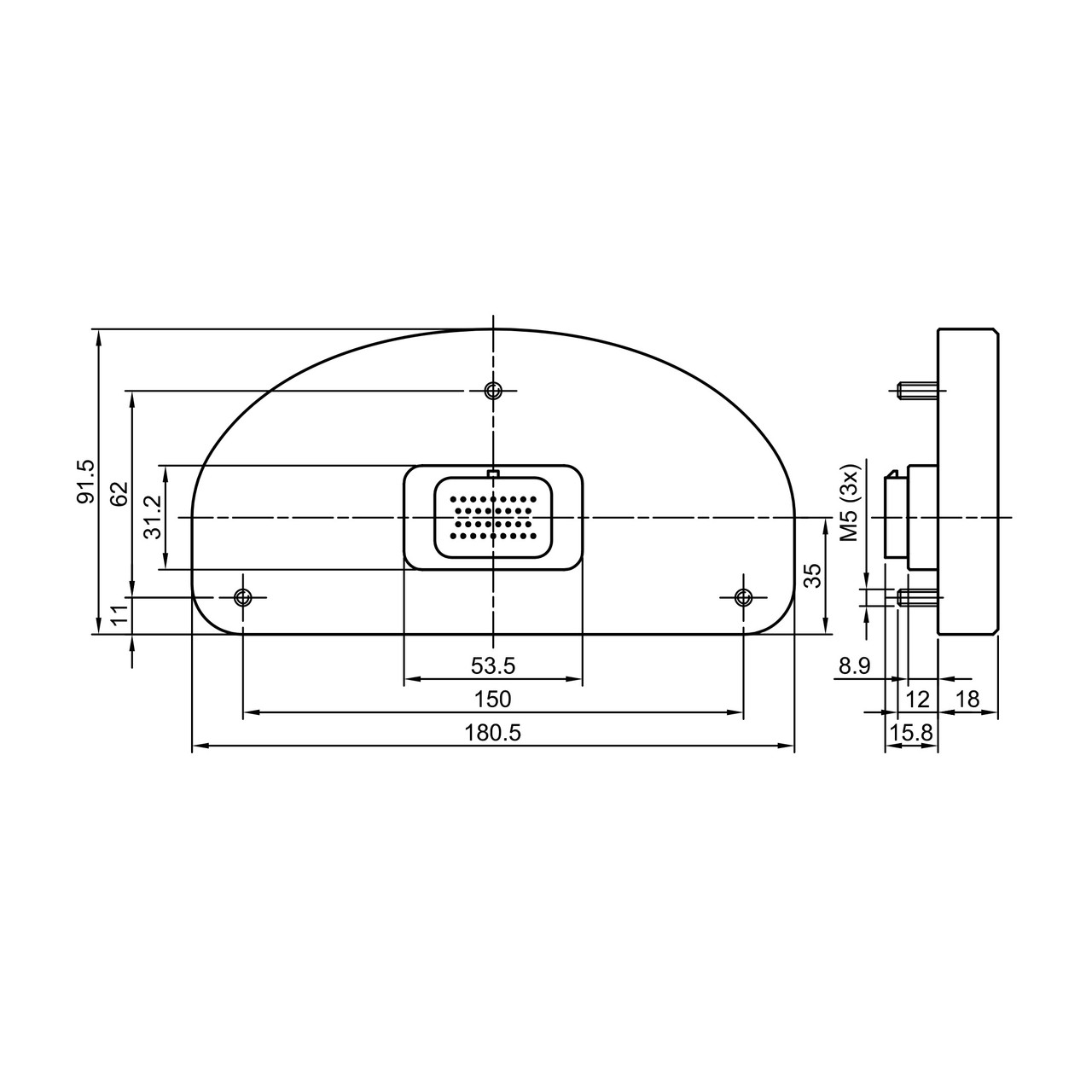

- Dimensions 180 x 91 x 18 mm excluding connector
- Weight 385 g

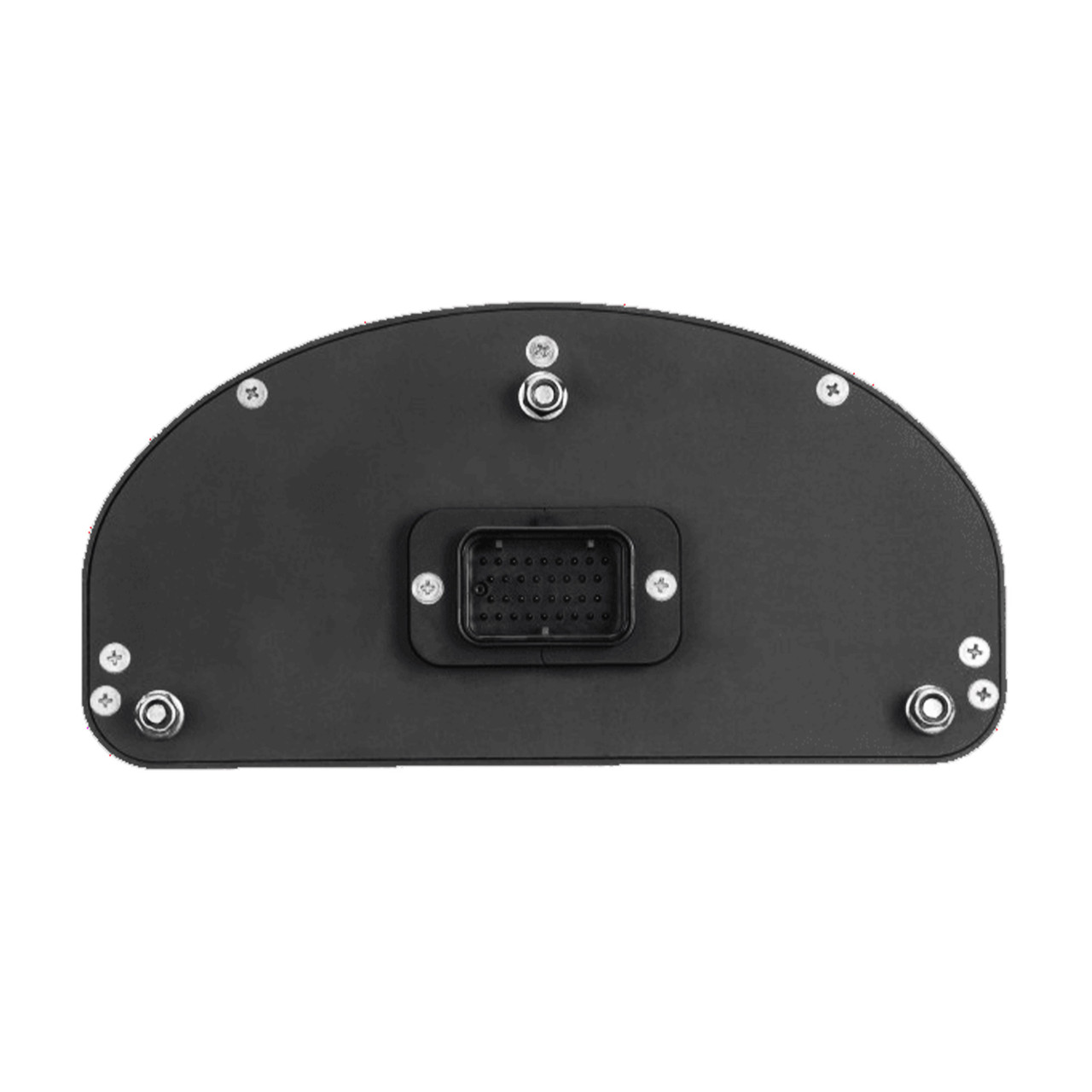

- 1 x 34 pin AMP connector
Inputs (optional)
- Provision for 4 x analogue voltage high resolution inputs
- Provision for 2 x analogue temperature inputs
- 2 x Digital inputs
- 3 x Speed inputs with voltage measuring capability
- Compatible with E888 expander (8 Thermocouples only)
Outputs - now included as standard
- 4 x PWM, switched or digital outputs
Logging - now included as standard
- 8 MB logging memory
- Logging rates up to 500 samples per second
- Fast Ethernet download
