Description
Connect easily to any car with an OBD-II port. No extra wiring required.
This version of the Gear Indicator can be plugged directly into the OBD2 port of the majority of vehicles fitted with this type of connector. It is supplied with a dedicated 1.5 meter OBD2 cable and connector so no additional wiring is necessary.
The Gear Indicator OBD2 determines the selected gear by calculating the ratio between Engine Speed and Road Speed (Ratiometric method).
On power up the Gear Indicator OBD2 will search for the correct OBD2 protocol. When the engine is switched off, the Gear Indicator OBD2 will enter sleep mode to minimise battery consumption.
Please note the Gear Indicator OBD2 is not compatible with OBD splitters and should be the only device plugged into the OBD port. It cannot be hardwired to the vehicle network.
Full installation manual can be download from here

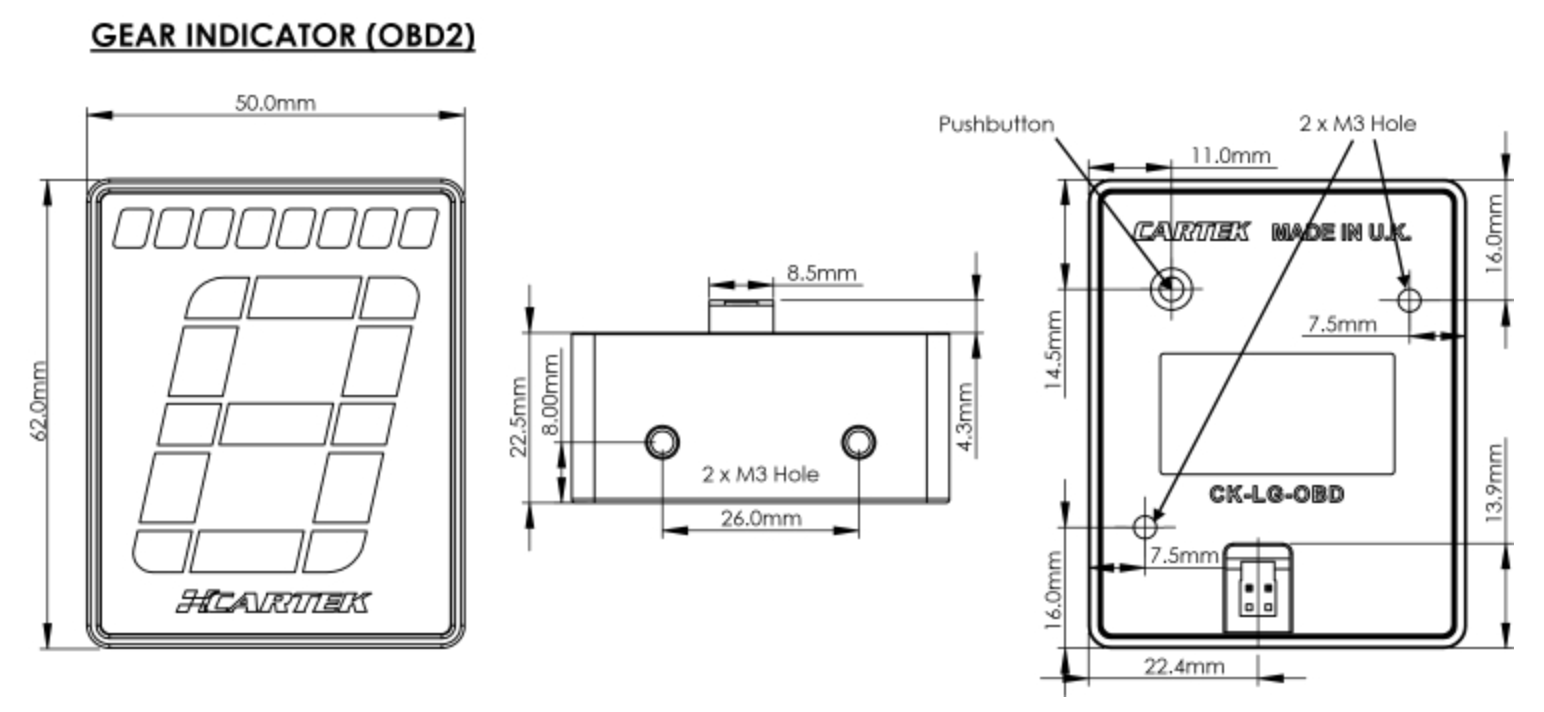

Size: W = 50.0mm, H = 62.0mm, S = 22.5mm
Weight: 200g
Operational Voltage: 7v – 18v
Operation Temperature: -10 -+85 degrees C
Storage Temperature: -40°C – +125°C
Enclosure: PA 2200 Nylon fully potted. IP64 rated
Current Draw: 1.0A
