Description

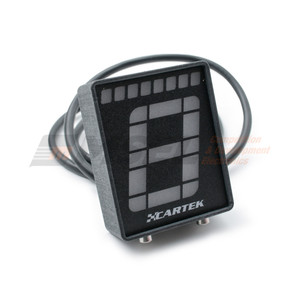

The GEAR INDICATOR from CARTEK is a dashboard mounted device that is designed to indicate to a driver the current selected transmission gear but also incorporates a sequential shift-light display which can indicate to a driver the optimum time to shift up a gear.
The selected gear is indicated by a large, multi-coloured, 7 segment numerical display while the shift-light function is displayed at the upper part of the unit by 8 multi-coloured LEDs. These 8 LEDs form a display sequence that will commence at an engine speed prior to optimum and complete at precisely the optimum speed thereby giving the driver early indication to shift up before the rev limiter is reached or engine damage occurs.
- Configure the lower and upper RPM settings with or without the engine running. Engine only needs to be revved to 50% of max RPM if setting up with engine running, or manually input RPM values using Push Button at rear of Shift Light.
-

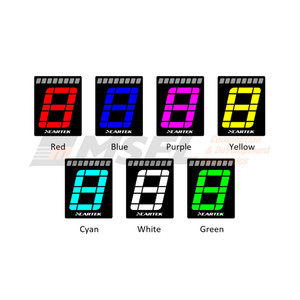

Select from 6 LED display patterns for the Shift Light sequence and 7 Gear Indicator Digit Colours.
- Configure day and night brightness of the LEDs. Switch between brightness levels by pressing Push Button at rear of Gear Indicator.
- Can display 8 forward Gears as well as Reverse (R) and Neutral (N).
- Be fitted to cars with H-Pattern, DSG or Automatic Gearboxes.
- Gear Indicator (Club) also has a dedicated sensor for Sequential Gearboxes.
- Fully potted – can be fitted to cars/ motorbikes with little environmental protection.

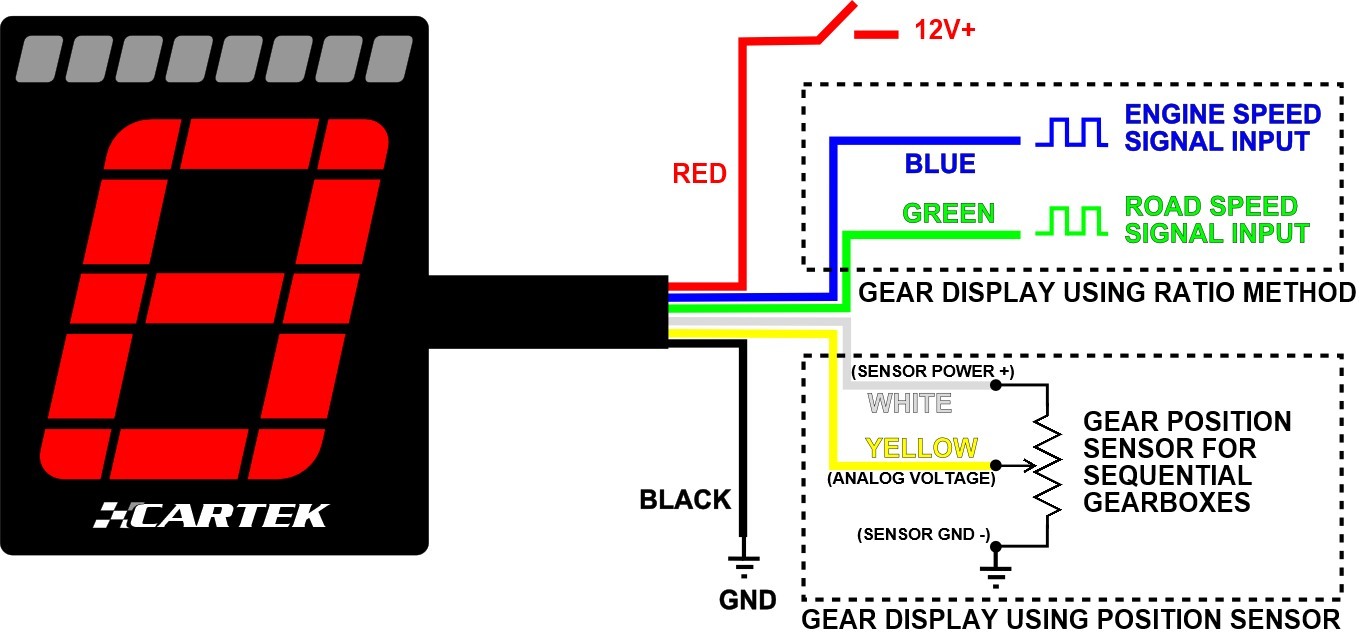

The Gear Indicator (Club) can either:
- Be connected directly to sequential gearboxes that are equipped with an analogue voltage gear position sensor (Sensor Voltage method)
- Determine the selected gear by calculating the ratio between Engine Speed and Road Speed (Ratiometric method).
This Gear Indicator comes with a 70cm cable which will need to be wired into the Engine Speed and Road Speed/Analogue Voltage signals of your vehicle.
Please note this Gear Indicator is not suitable for engines with older CDI Ignition systems.
Full installation manual can be download from here

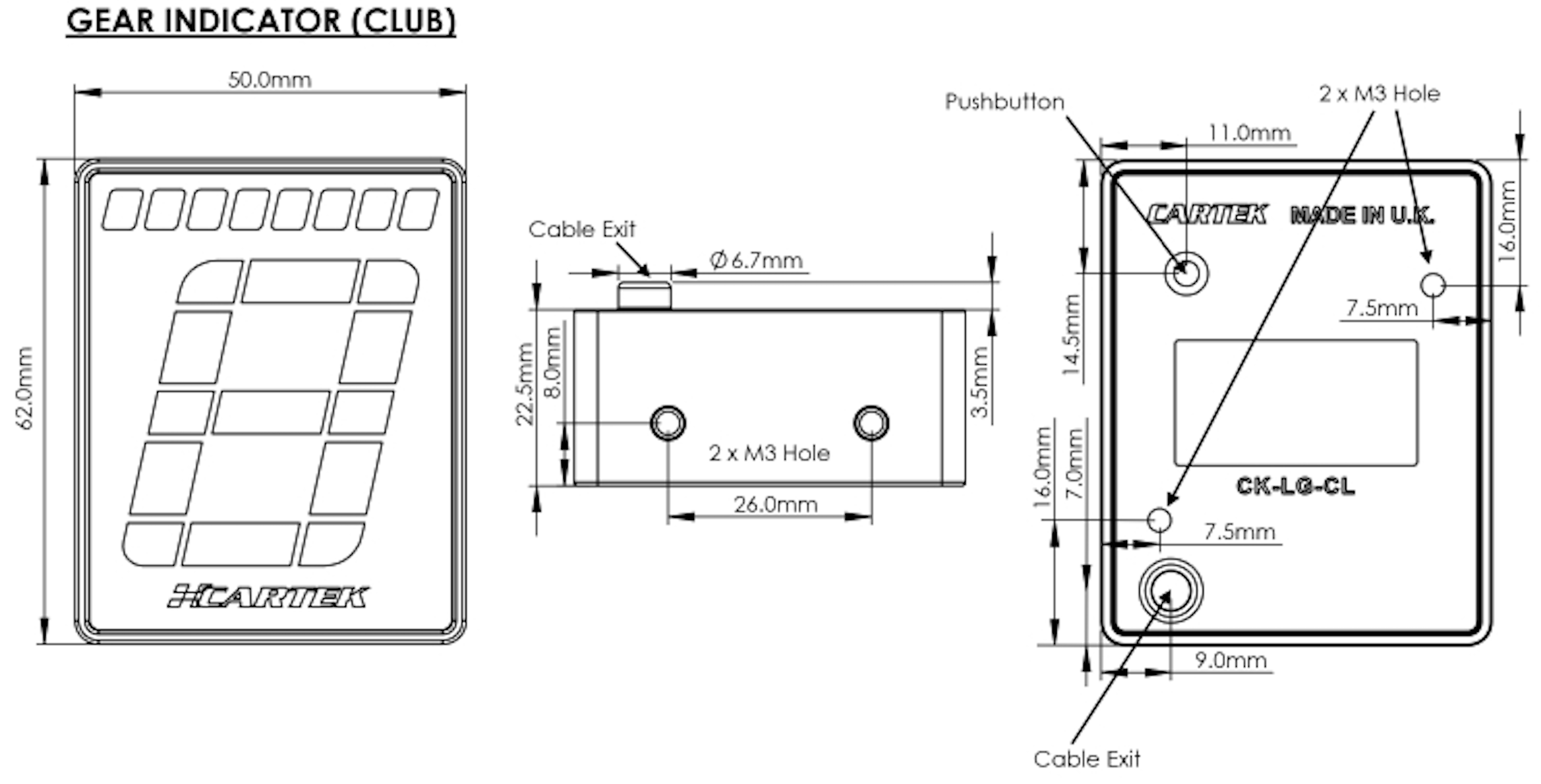

Size: W = 50.0mm, H = 62.0mm, S = 22.5mm
Weight: 200g
Operational Voltage: 7v – 18v
Operation Temperature: -10 -+85 degrees C
Storage Temperature: -40°C – +125°C
Enclosure: PA 2200 Nylon fully potted. IP64 rated
Current Draw: 1.0A
