Description
The PDM-5 is a configurable Power Distribution Module featuring 5 x 20A outputs. This PDM can also be configured to become a dedicated headlight or spot lamp controller.
Key Features
- Fully potted for protection from water and dirt, shock and vibration.
- All programming is through integrated pushbutton on PDM – no laptop required.
- Maximum output current can be configured in 5A steps (20A max) per channel. Selectable ‘Soft Start’ option for driving devices with high inrush such as fans or pumps. Outputs can be combined for higher current.
- Control inputs can be configured for high or low level signal activation, rising edge or falling edge triggers, or PWM input signals (200hz max).
- Outputs have selectable functions including Flashing (for indicators), Time delay On (for heated screens etc), Time delay Off (to operate fans when car is switched off).
- Includes a configurable ‘Aux’ Input pin that can act as an Ignition input e.g. signal from Battery Isolator, master switch or ignition switch.
- RGB status LED’s on PDM indicate status of Inputs and Outputs.
- The PDM-05 can be configured to become a dedicated headlight or spot lamp controller.

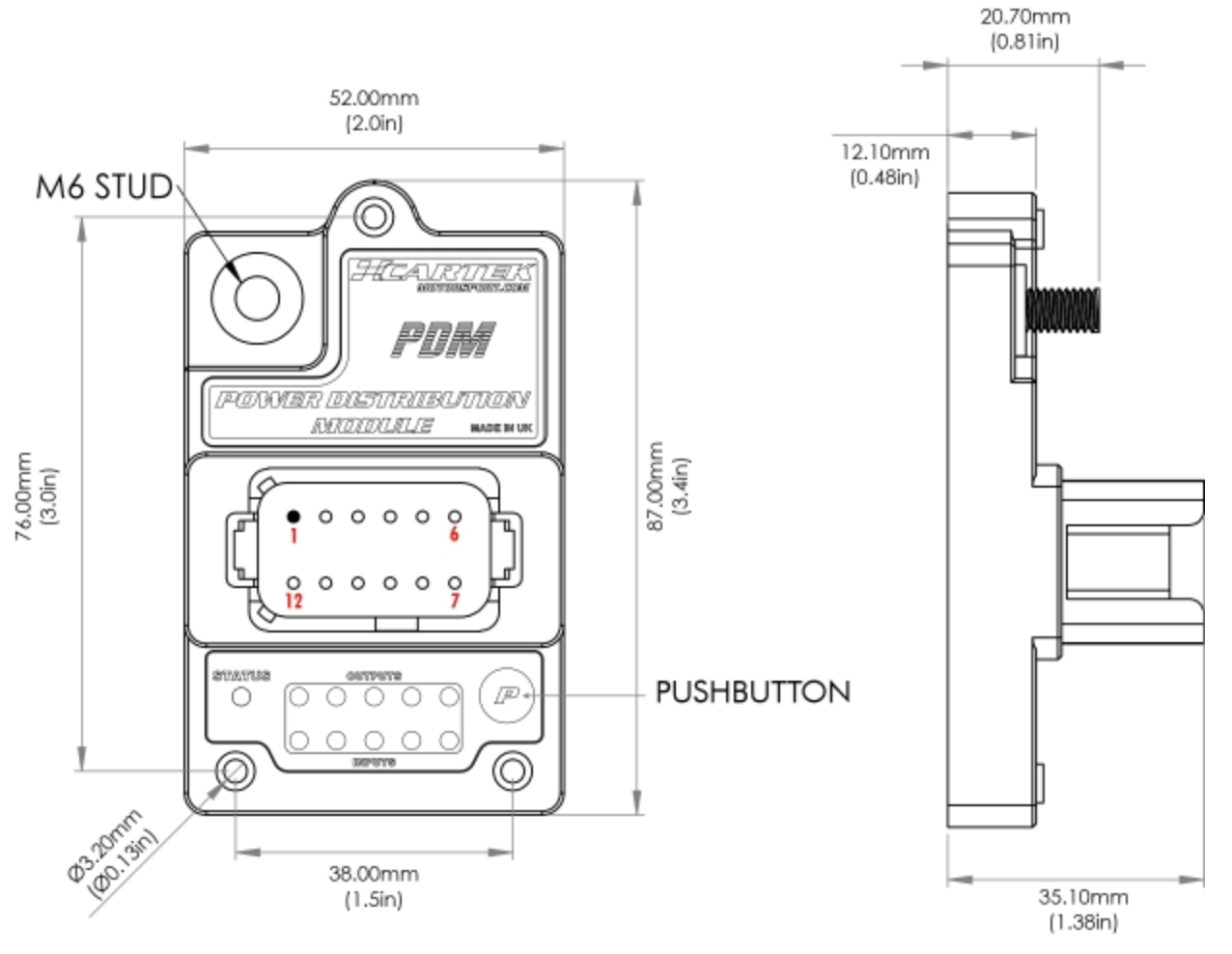

Dimensions
