Description

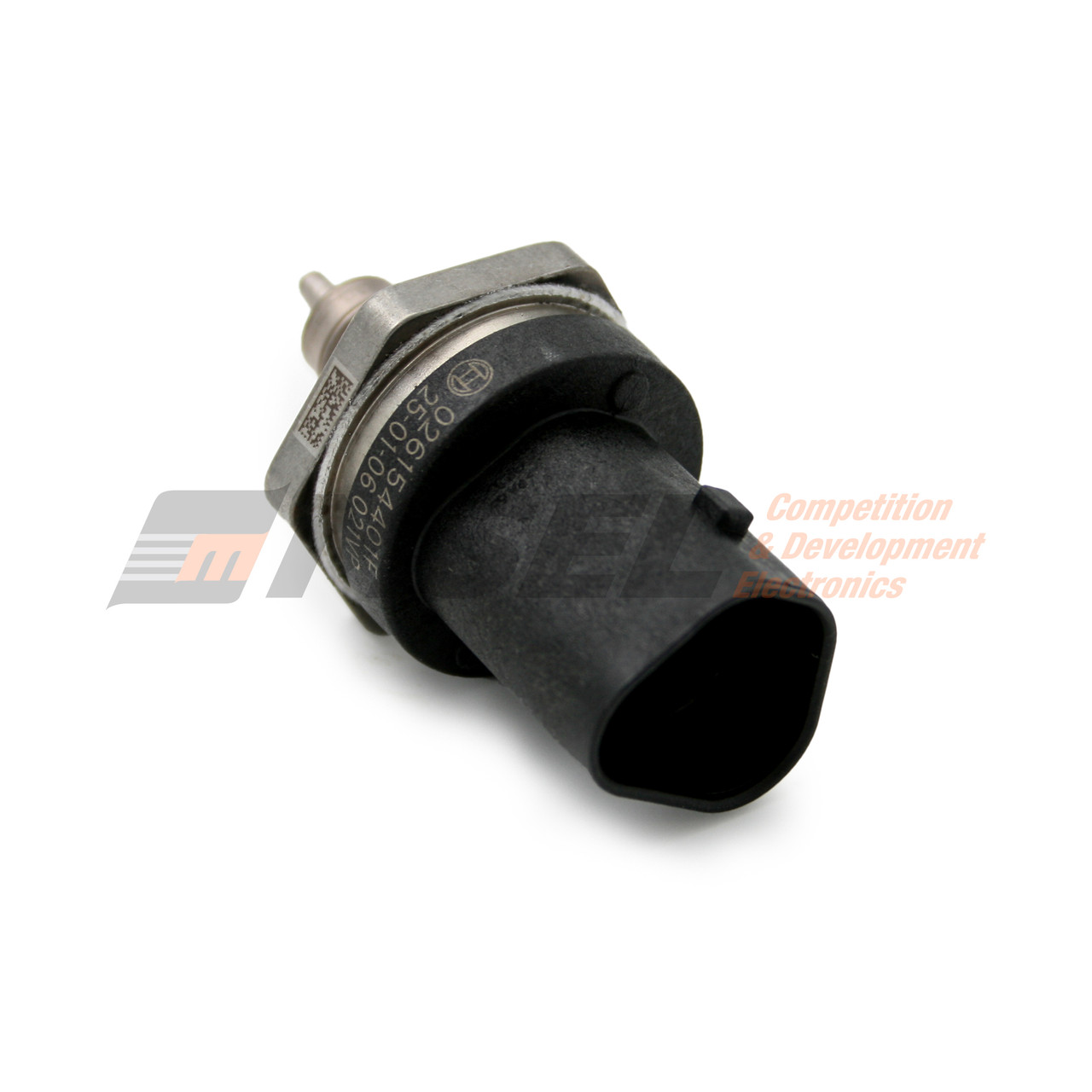

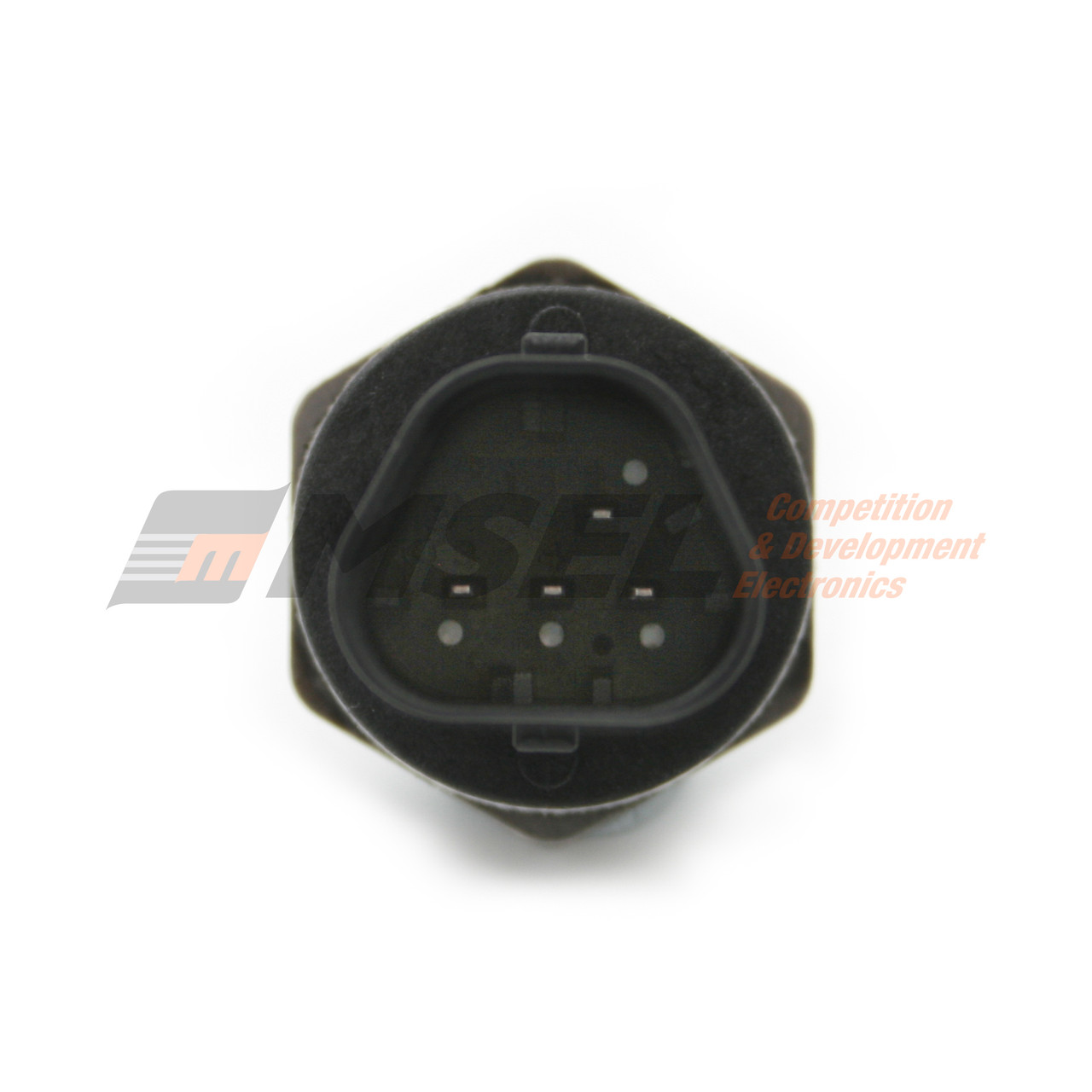

Bosch 10-bar combination fluid temperature and pressure sensor in one makes mounting easier and reduces costs of wiring.
Ideal for measuring fuel or oil pressure and temperature in one sensor.
Not recommended for measuring water temperature and pressure.
- 0 to 10 bar (145psi) pressure measurement
- -40 to 140 degrees C temperature measurement
- M10 x 1 male thread
- Suitable for Diesel, gasoline, engine oil, transmission oil and E85
Disclaimer: Usage in off-Highway-applications and media not mentioned above have not been validated by Bosch.
Mount with pressure/temperature port pointing downwards up to 45 degrees from vertical.
OEM quality sensor at an affordable price, even if you don't use the temperature sensor function.
As used by Toyota Gazoo Racing New Zealand for oil pressure and temperature in the FT-60 F3R car.
Accessories (sold separately)
- Bosch Trapez 5-Way Connector Kit click here.

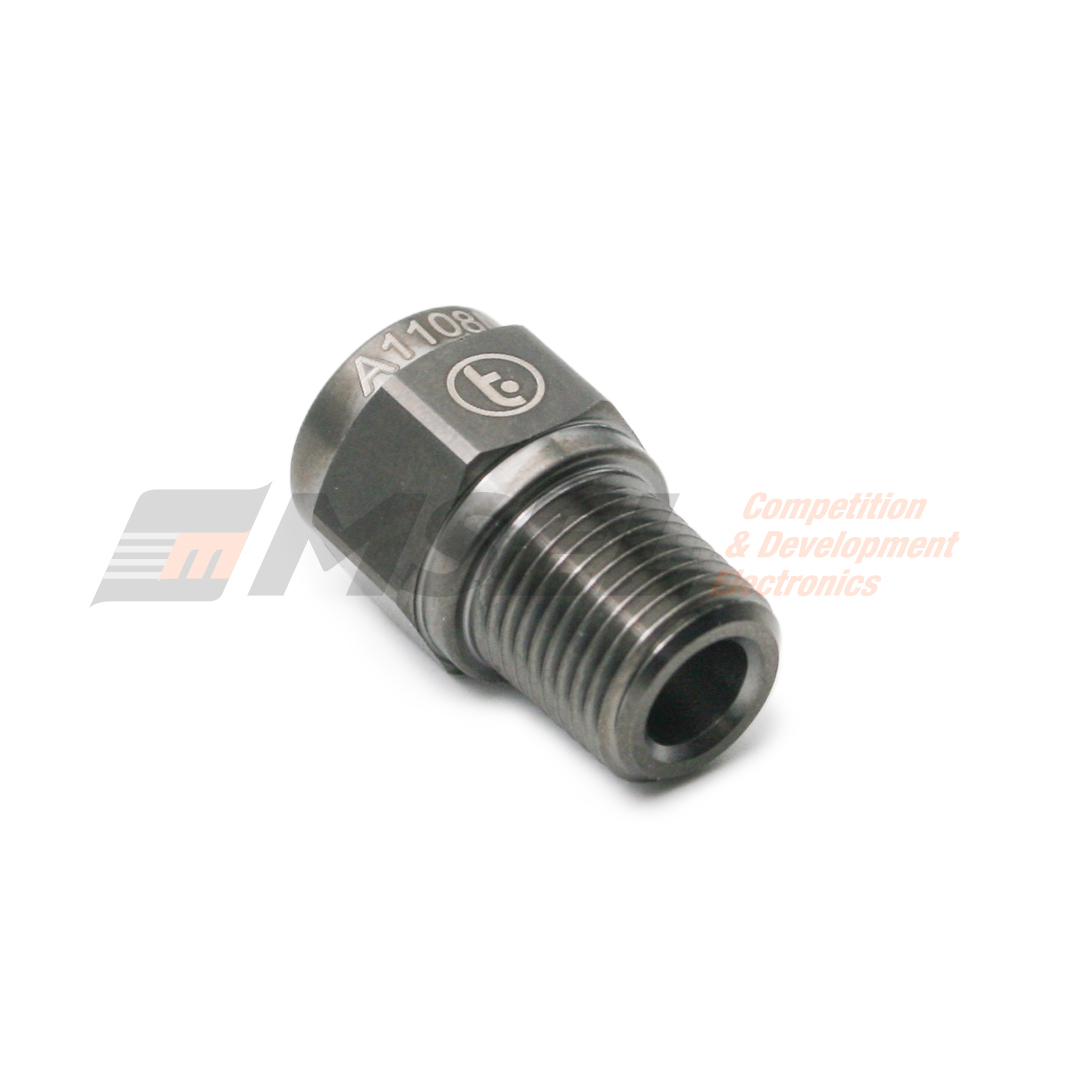

- M10 x 1 to 1/8" NPT Pressure Sensor Adapter click here.

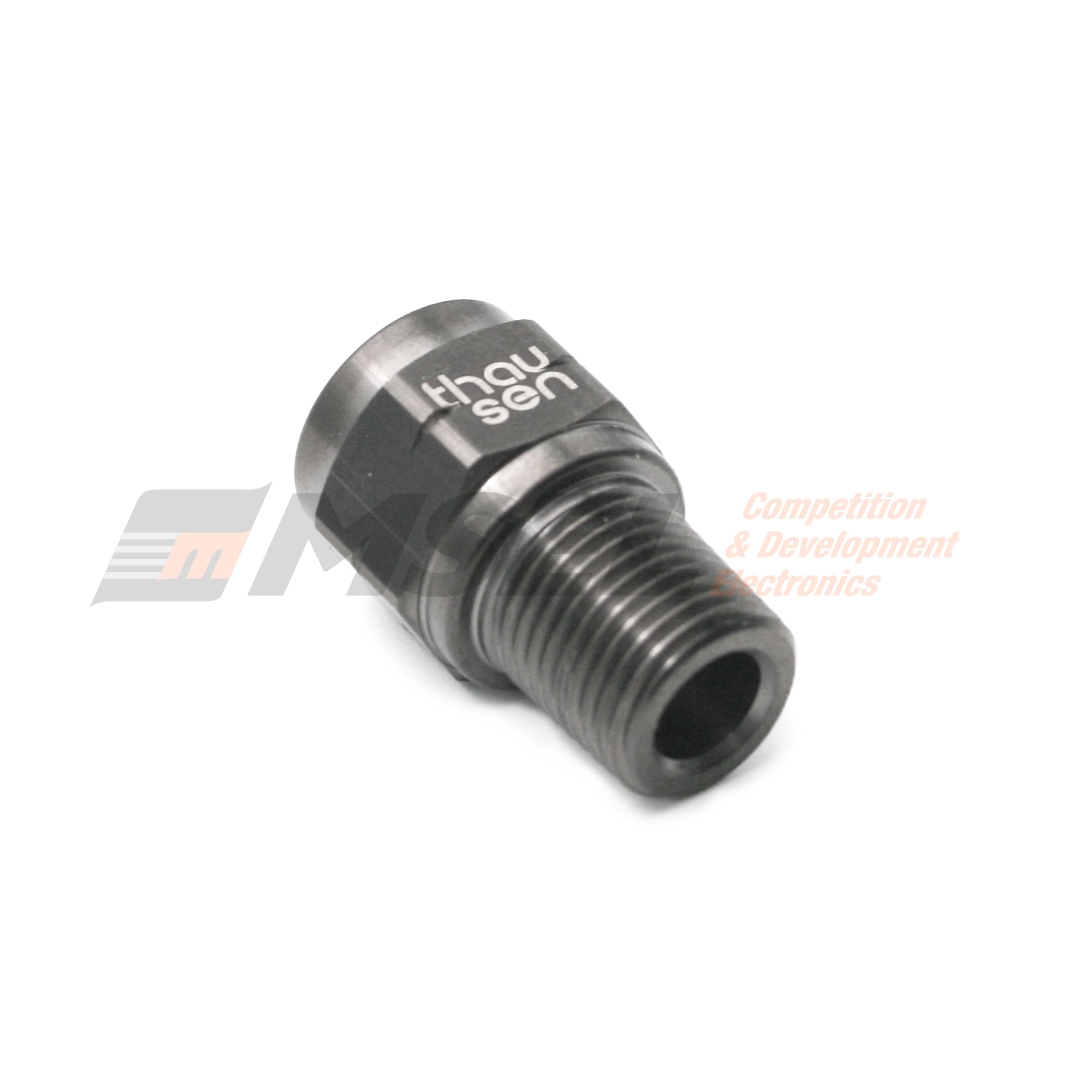

- M10 x 1 to 1/8" BSP Pressure Sensor Adapter click here.
