Description

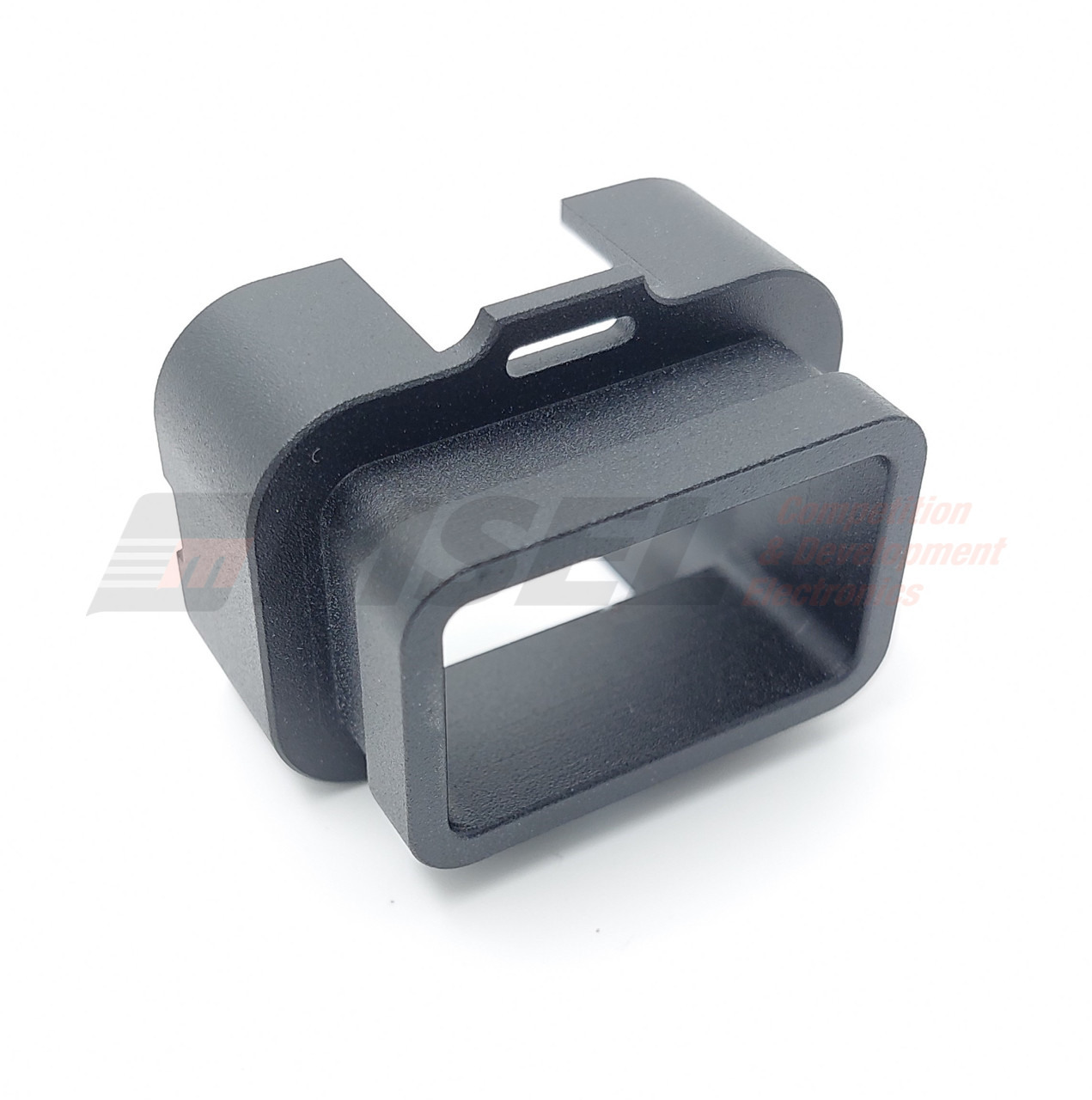

Backshell for AMP Superseal 1.0 34-way connector
- Black Anodised CNC machined Aluminium housing
- Push on tolerance fit
- Allows the use of a heat shrink moulded boot on the 34-way Superseal connector commonly found on products like MoTec ECU's, Dash Loggers, PDM's as well as products from Link, Haltech, DTA, Emtron, Syvecs and many more
Straight Boot - Hellermann Tyton 155-42-GW24 or 156-42-GW24
90 Degree Boot - Hellermann Tyton 1155-42-GW24 or 1156-42-GW24
The 155 and 1155 boots are tight on the backshell before shrinking, but they do shrink to a smaller diameter on the wiring loom side. Depending on the specification and size of the wire used in the connector and the number of wires used in the application the larger 156 and 1156 boots may be more suitable. Please check the boot dimensions against the size of the wiring bundle in your application.
Please note that recommended boots will not fit over the terminated connector. Please allow for this during loom production.
Heat shrink moulded boots are not included in the price of the backshell.
