Autosport 79-Way Plug Connector with Size 22 Pins - Red

SKU:
CONAS62035PN
Quantity Unit Price (Inc GST)
3 + $248.46 ($285.73)
10 + $235.38 ($270.69)
  • AS62035PN 62035PN Autosport 79-Way Plug Connector

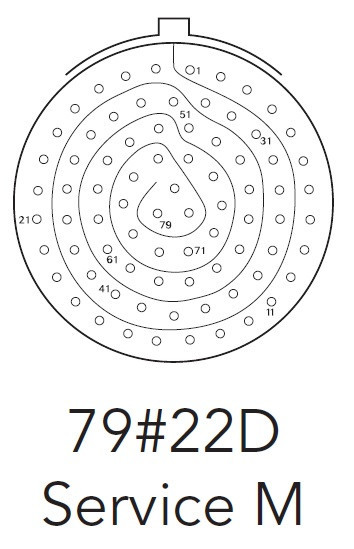

  • AS62035PN 62035PN Autosport 79-Way Plug Connector layout
Per Unit
$261.54 ($300.77) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

Autosport 79-Way Plug Connector with size 22 Pins - Red

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.

Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.

Feature Specification Notes
Part Number  62035PN
Connector Type  Plug
Shell Size  20
Orientation  Red (N)  Will only mate with red connectors
Number of Contacts  79
Contact Size  22D  Supports 28 to 22AWG wire
Contact Type  Pin   Male
Current Rating  5 Amps
Termination Type  Crimp
Locator   TOOLOCK42  Refer to Related Products below (not incl.)
Kit Contains
connector housing, contacts and insert/removal tool


ØA max. B max.
38.20 19.30

Note: all dimensions are in millimeters (mm)
