Autosport 6-Way Bulkhead Connector with size 20 Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
Feature | Specification | Notes |
Part Number | 01098SN | |
Connector Type | Oval flange receptacle | Bulkhead mounting |
Shell Size | 10 | |
Orientation | Red (N) | Will only mate with red connectors |

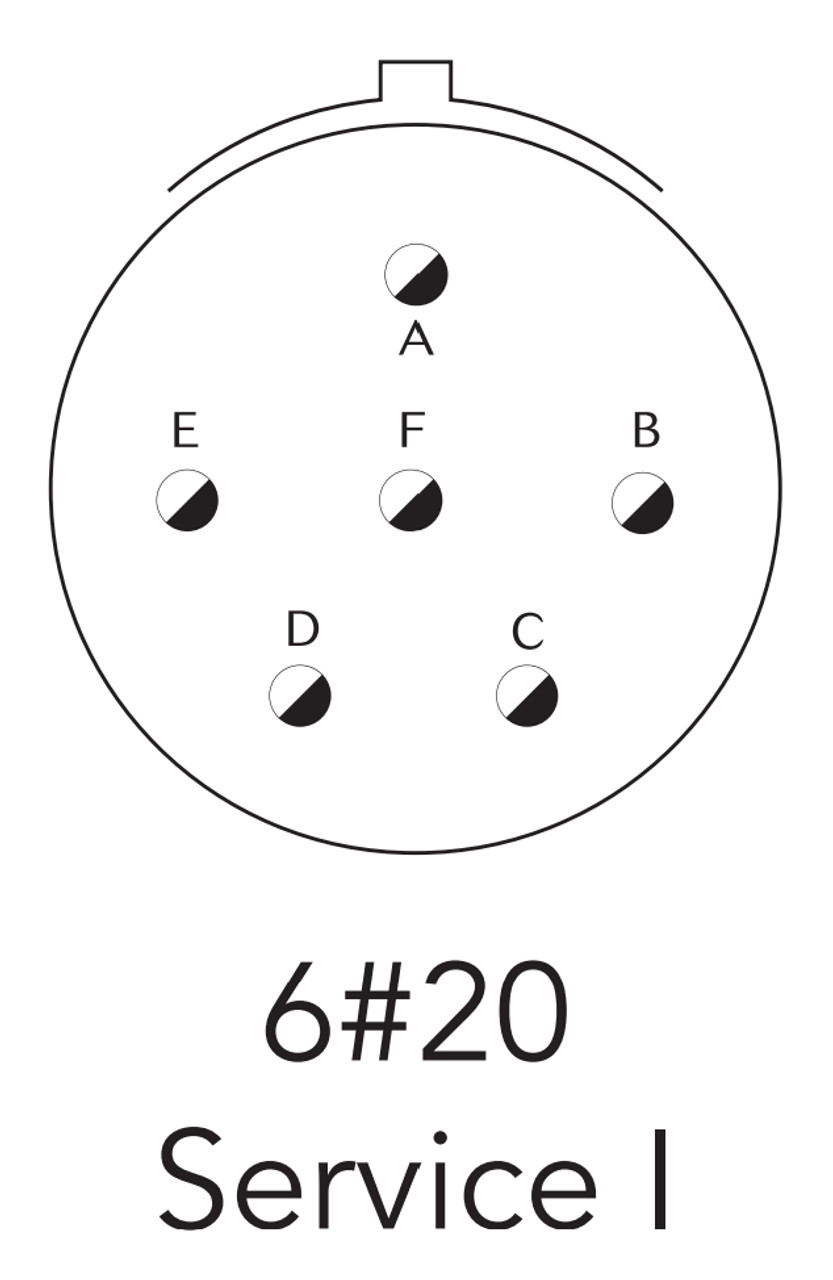

Number of Contacts | 6 | |
Contact Size | 20 | Supports 24 to 20AWG wire |
Contact Type | Socket | Female |
Current Rating | 7.5 Amps | |
Termination Type | Crimp | |
Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
Kit Contains | connector housing, contacts and insert/removal tool |
A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
19.50 | 25.90 | 3.20 | 15.00 | 17.21 | 16.05 | 33.50 | 33.00 | 3.00 | 17.40 | 25.90 | 3.60 |
Note: all dimensions are in millimeters (mm)
