Description

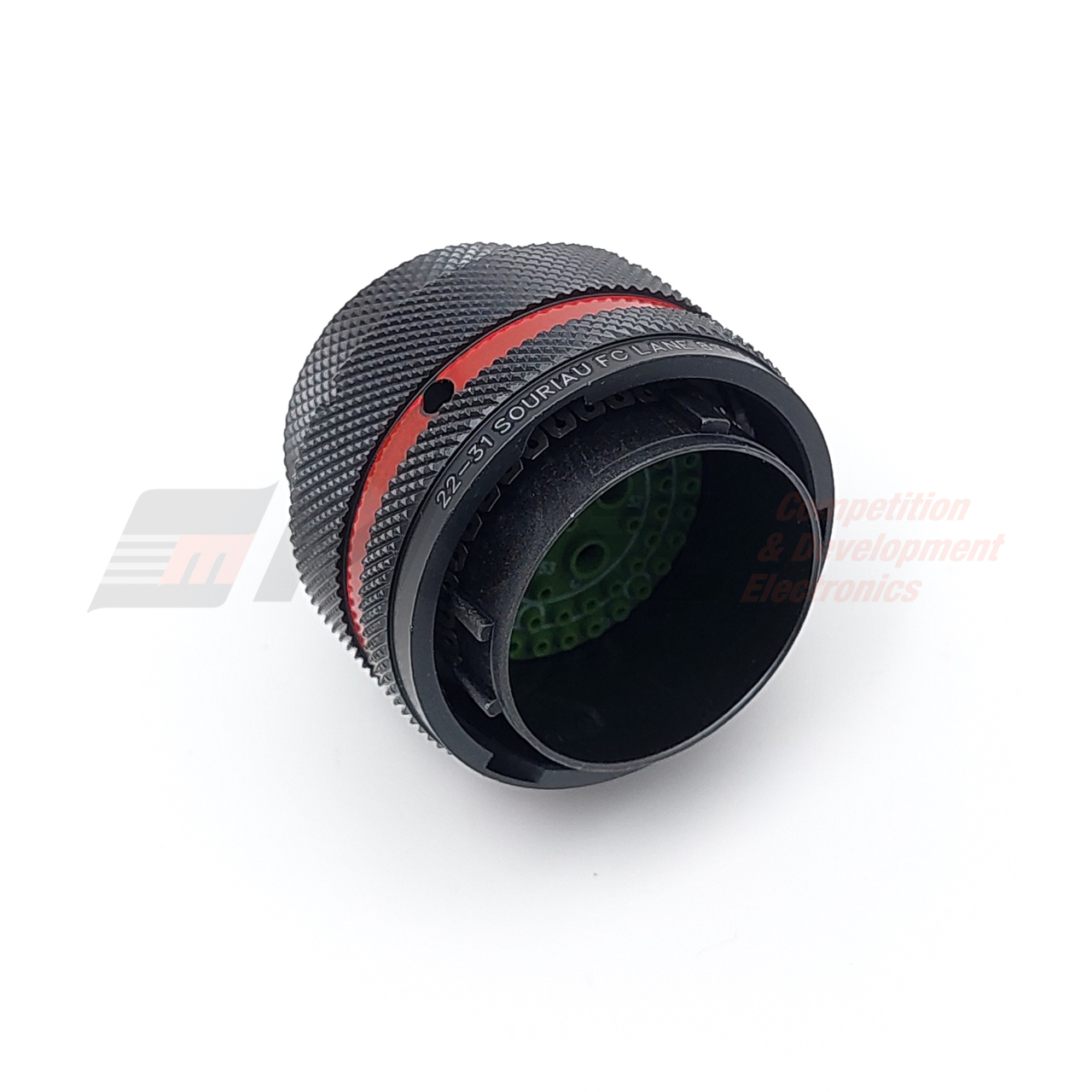

Autosport 59-Way Mixed Plug Connector with 55 x Size 22 and 4 x Size 12 Pins - Red

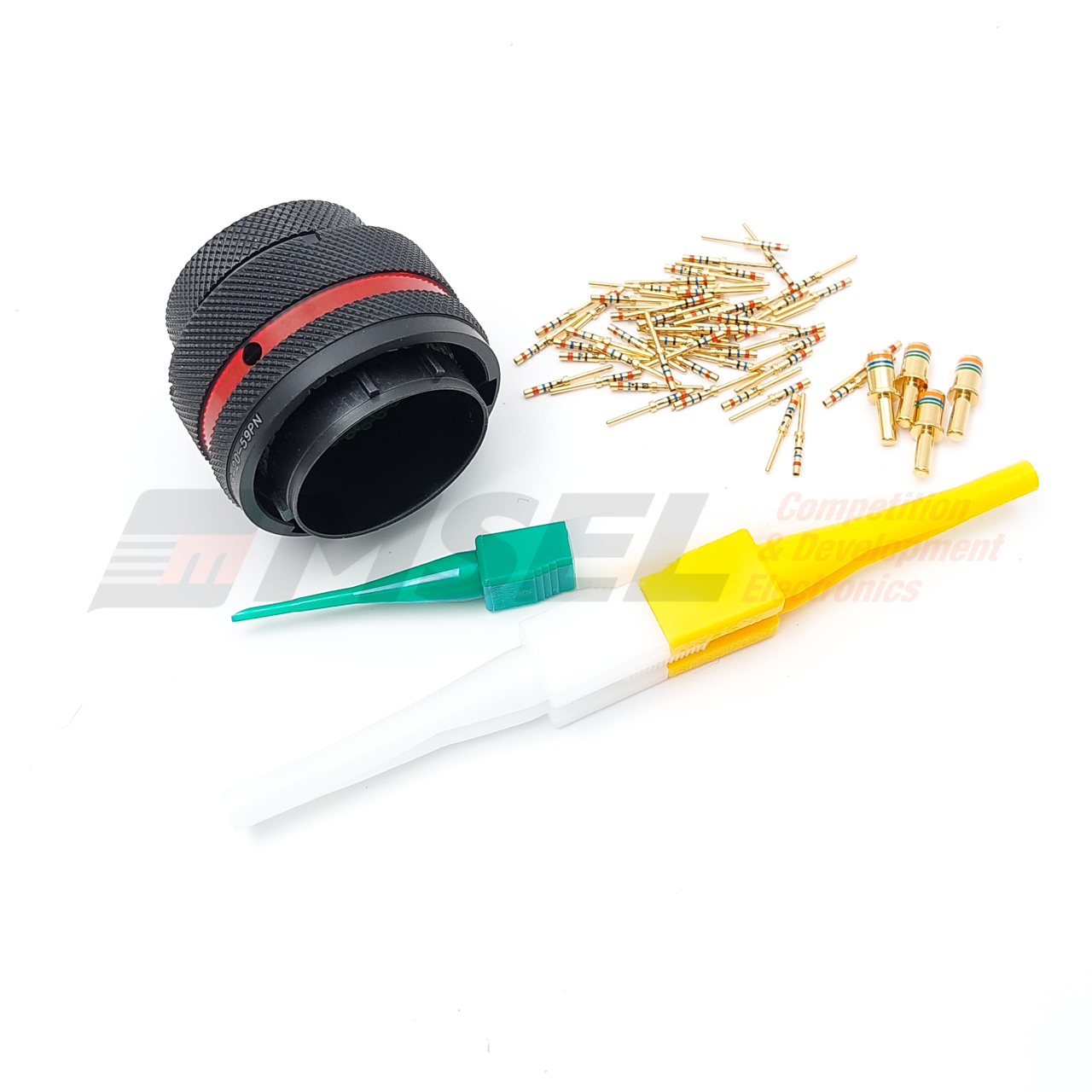

Connector kit includes contacts and insert/removal tool.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 62059PN | |
| Connector Type | Plug | |
| Shell Size | 20 | |
| Orientation | Red (N) | Will only mate with red connectors |

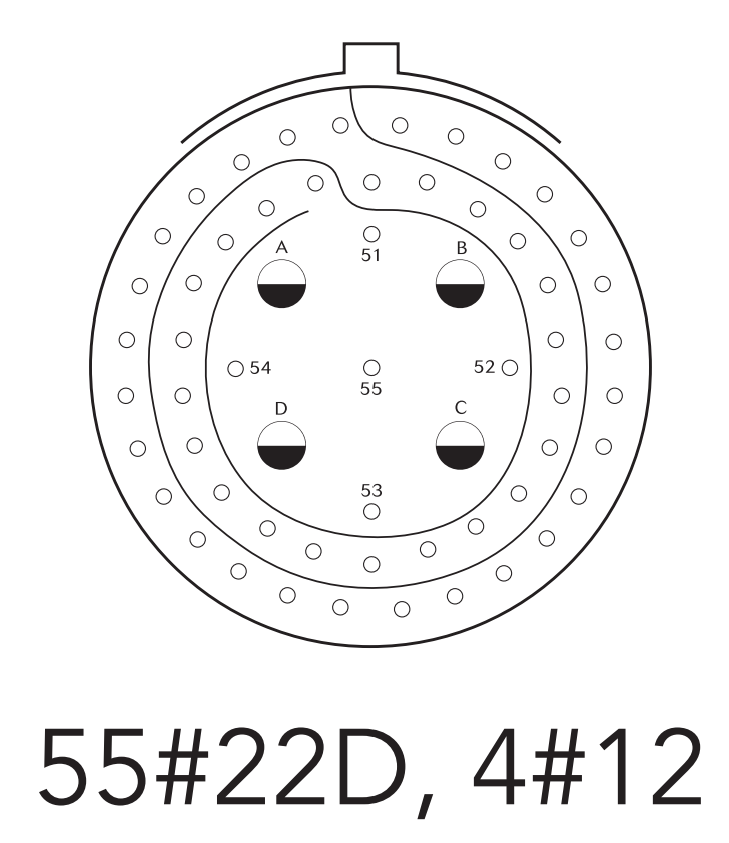

| Number of Contacts | 59 | 55 size 22 contacts and 4 size 12 contacts |
| Contact Size | 55 x 22 4 x 12 | Supports 26 to 22AWG wire Supports 14 to 12AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 55: 5 Amps 4: 25 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK42 TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| ØA max. | B max. |
| 38.20 | 19.30 |
Note: all dimensions are in millimeters (mm)
