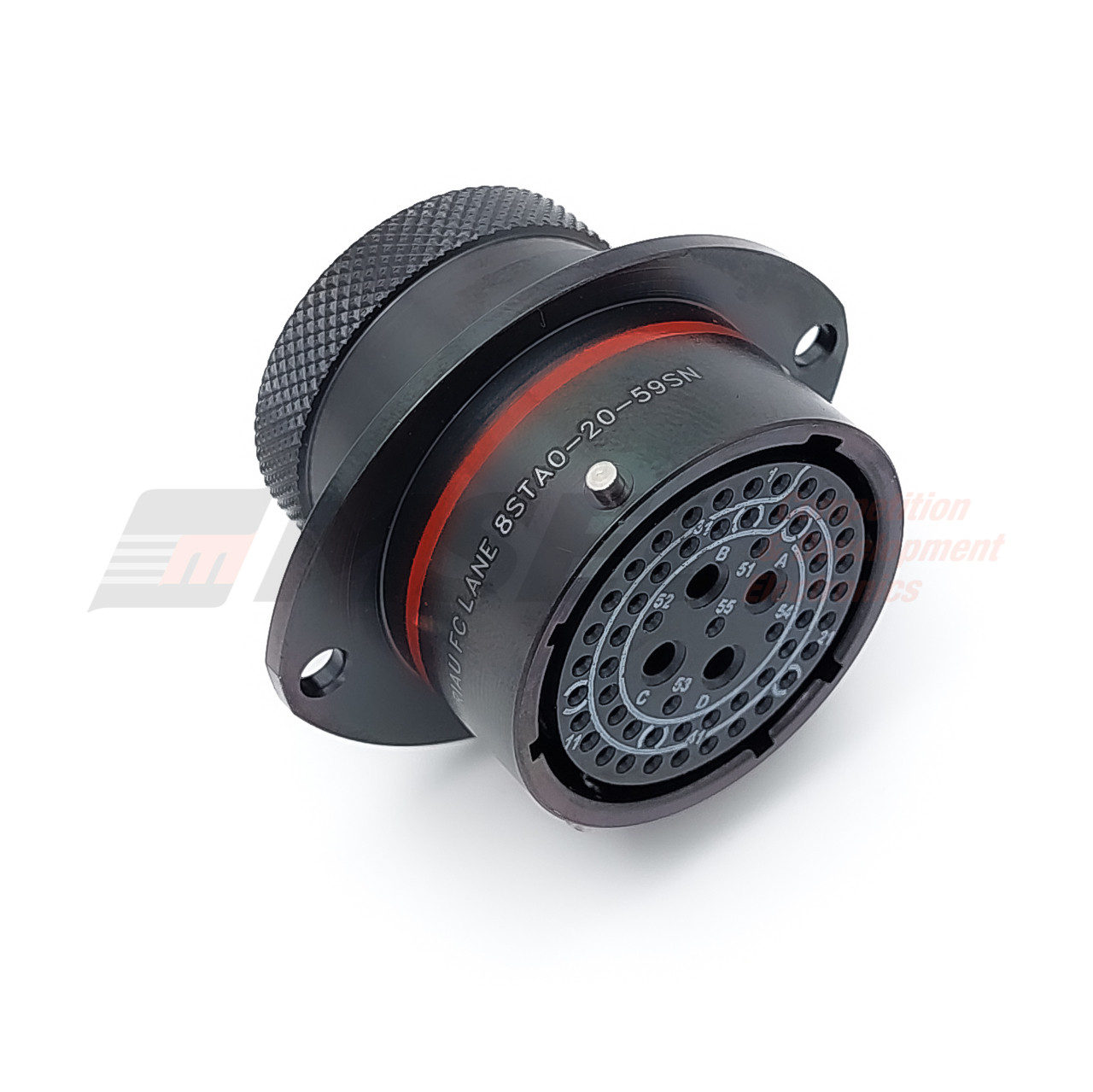

Autosport 59-Way Mixed Bulhead Connector with 55 x Size 22 and 4 x Size 12 Sockets - Red
Connector kit includes contacts and insert/removal tool.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 02059SN | |
| Connector Type | Bulkhead | |
| Shell Size | 20 | |
| Orientation | Red (N) | Will only mate with red connectors |

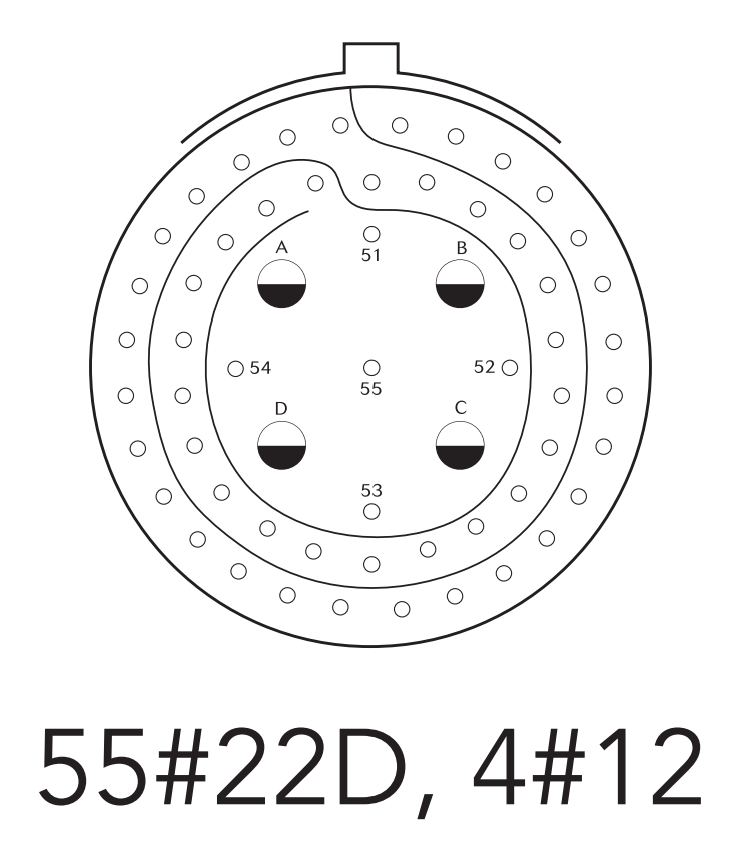

| Number of Contacts | 59 | 55 size 22 contacts and 4 size 12 contacts |
| Contact Size | 55 x 22 4 x 12 | Supports 26 to 22AWG wire Supports 14 to 12AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 55: 5 Amps 4: 25 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK40 TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 37.00 | 41.60 | 3.20 | 31.75 | 17.21 | 16.05 | 33.50 | 47.90 | 3.00 | 34.60 | 41.60 | 3.60 |
Note: all dimensions are in millimeters (mm)
