Autosport 56-Way Mixed Bulkhead Connector with Size 48x size 20 & 8x size 16 Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with black zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 02404SN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 24 | |
| Orientation | Red (N) | Will only mate with red connectors |

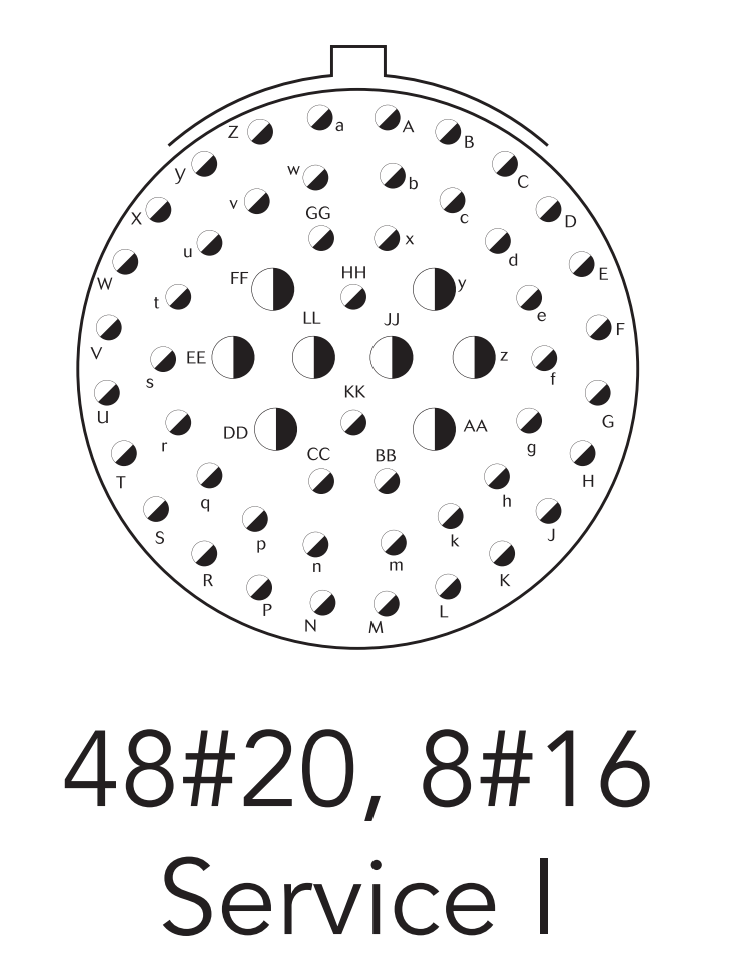

| Number of Contacts | 56 | 48 size 20 contacts and 8 size 16 contacts |
| Contact Size | 48x 20 8x 16 | Supports 24 to 20AWG wire Supports 20 to 16AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 48: 7.5 Amps 8: 13 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 43.40 | 49.50 | 3.77 | 38.10 | 18.20 | 15.29 | 33.50 | 55.80 | 3.00 | 41.00 | 49.50 | 4.10 |
Note: all dimensions are in millimeters (mm)
