Description

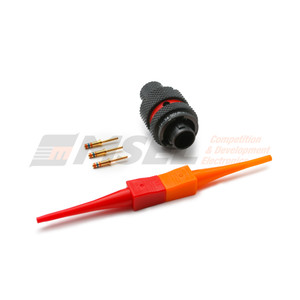

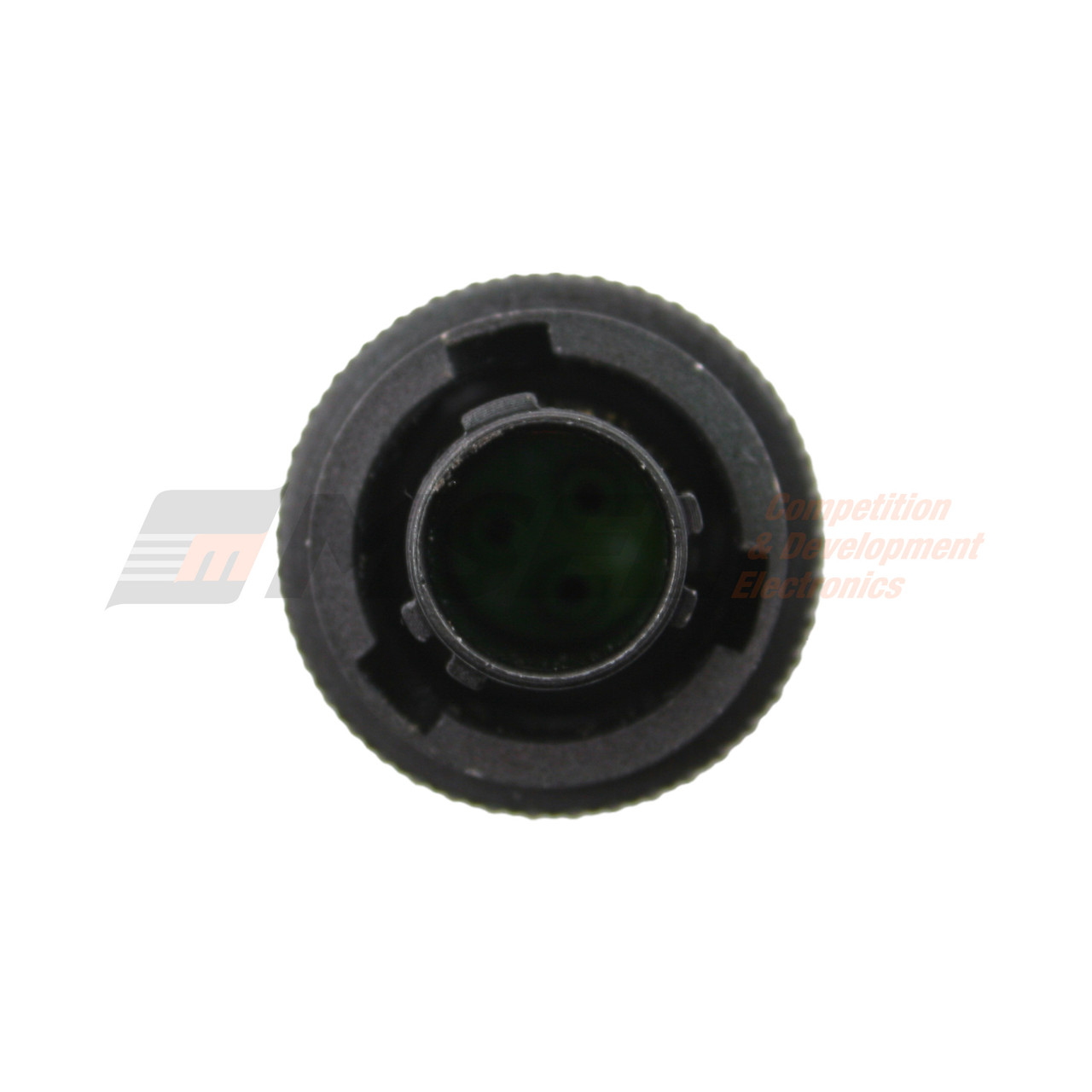

Autosport 608-98PN 3-Way Plug with Pins - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 60898PN | |
| Connector Type | Plug | |
| Shell Size | 08 | |
| Orientation | Red (N) | Will only mate with red connectors |

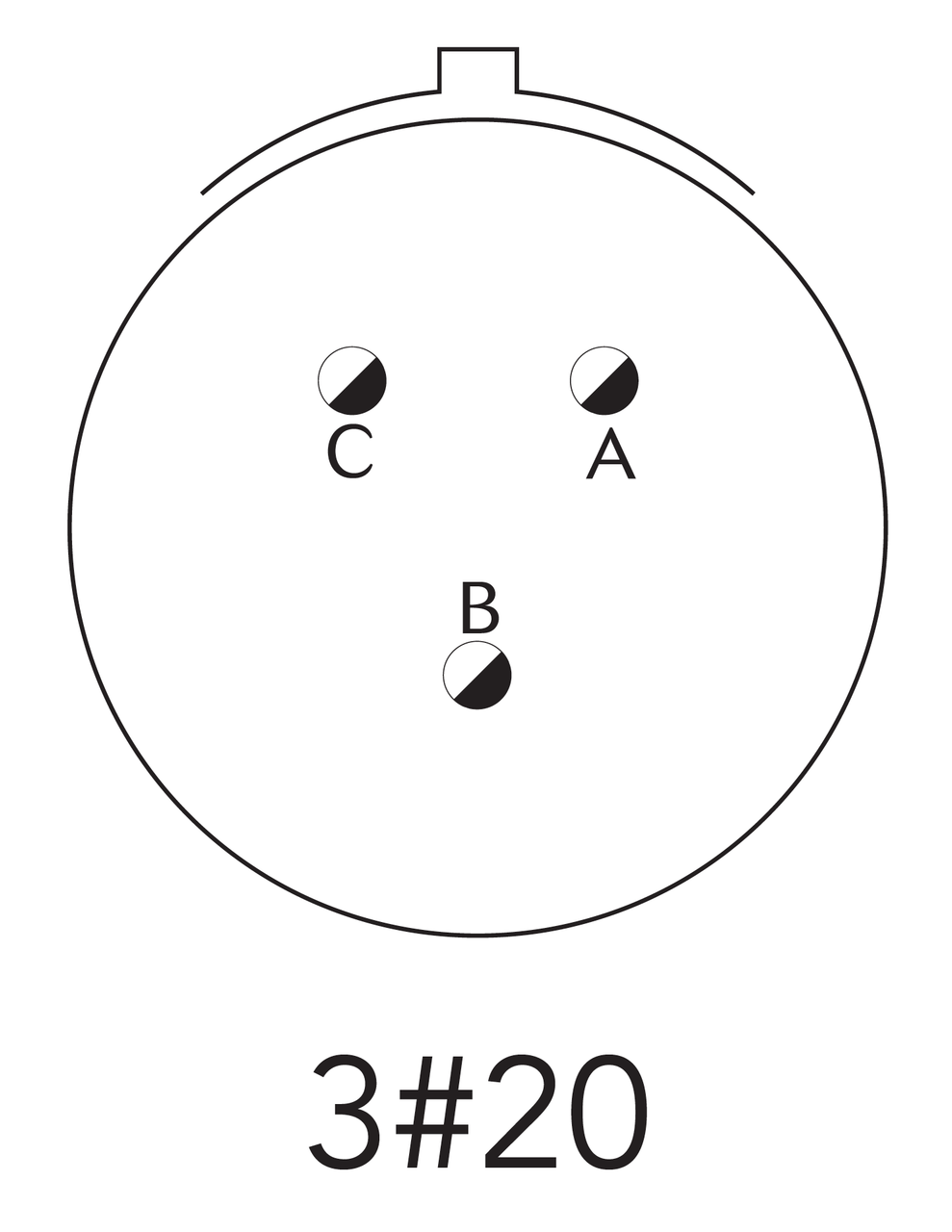

| Number of Contacts | 3 | |
| Contact Size | 20 | Supports 24 to 20AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 7.5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
| ØA max. | B max. |
| 18.70 | 18.55 |
Note: all dimensions are in millimeters (mm)
