Description
Autosport 3-Way Bulkhead Connector with Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 00898SN | |
| Connector Type | Bulkhead Connector | |
| Shell Size | 08 | |
| Orientation | Red (N) | Will only mate with red connectors |

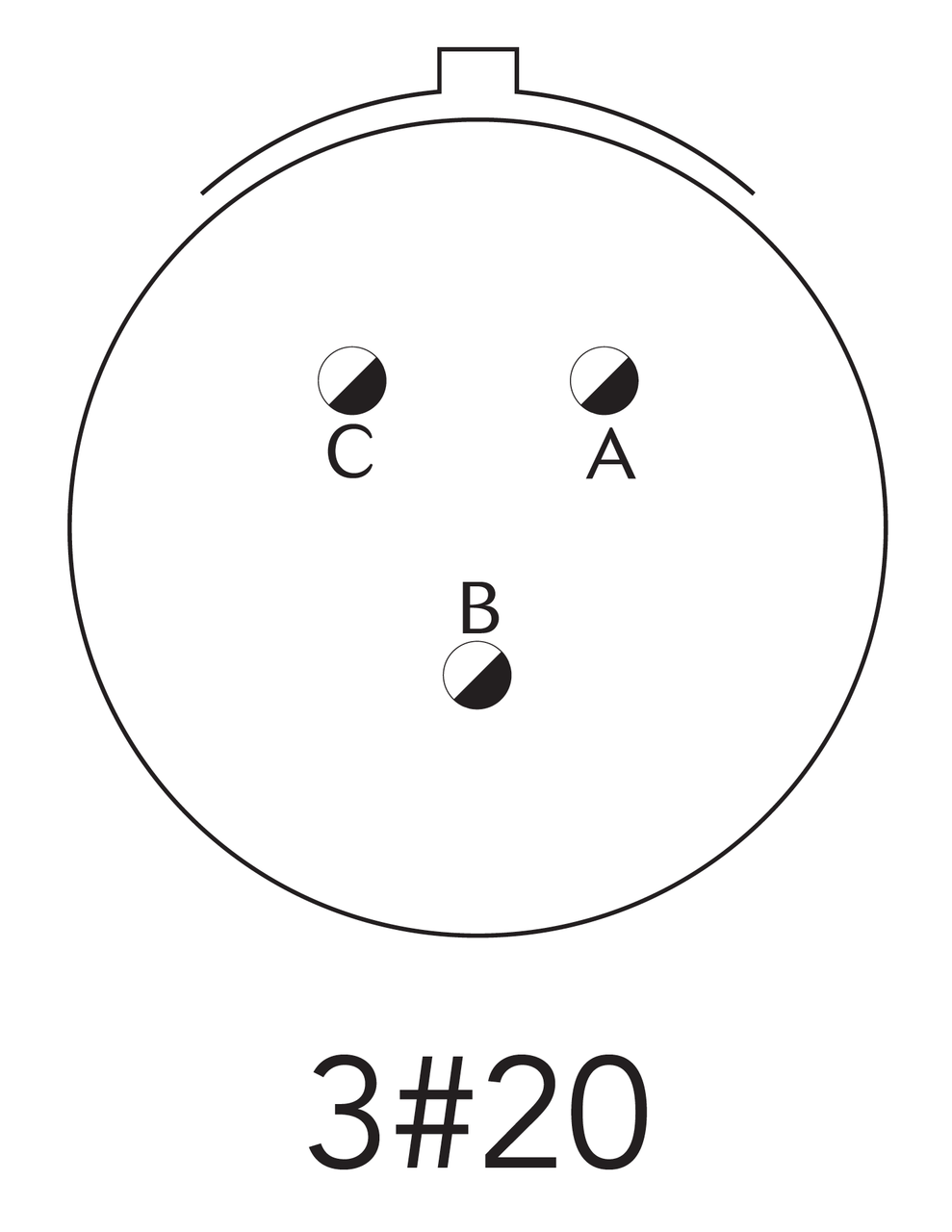

| Number of Contacts | 3 |
|
| Contact Size |
20
|
Supports 24 to 20AWG wire
|
| Contact Type |
Socket
|
Female |
| Current Rating |
7.5A
|
|
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 16.50 | 21.40 | 3.20 | 12.00 | 17.21 | 16.05 | 33.50 | 27.20 | 3.00 | 14.50 | 21.40 | 3.60 |
Note: all dimensions are in millimeters (mm)
