Description

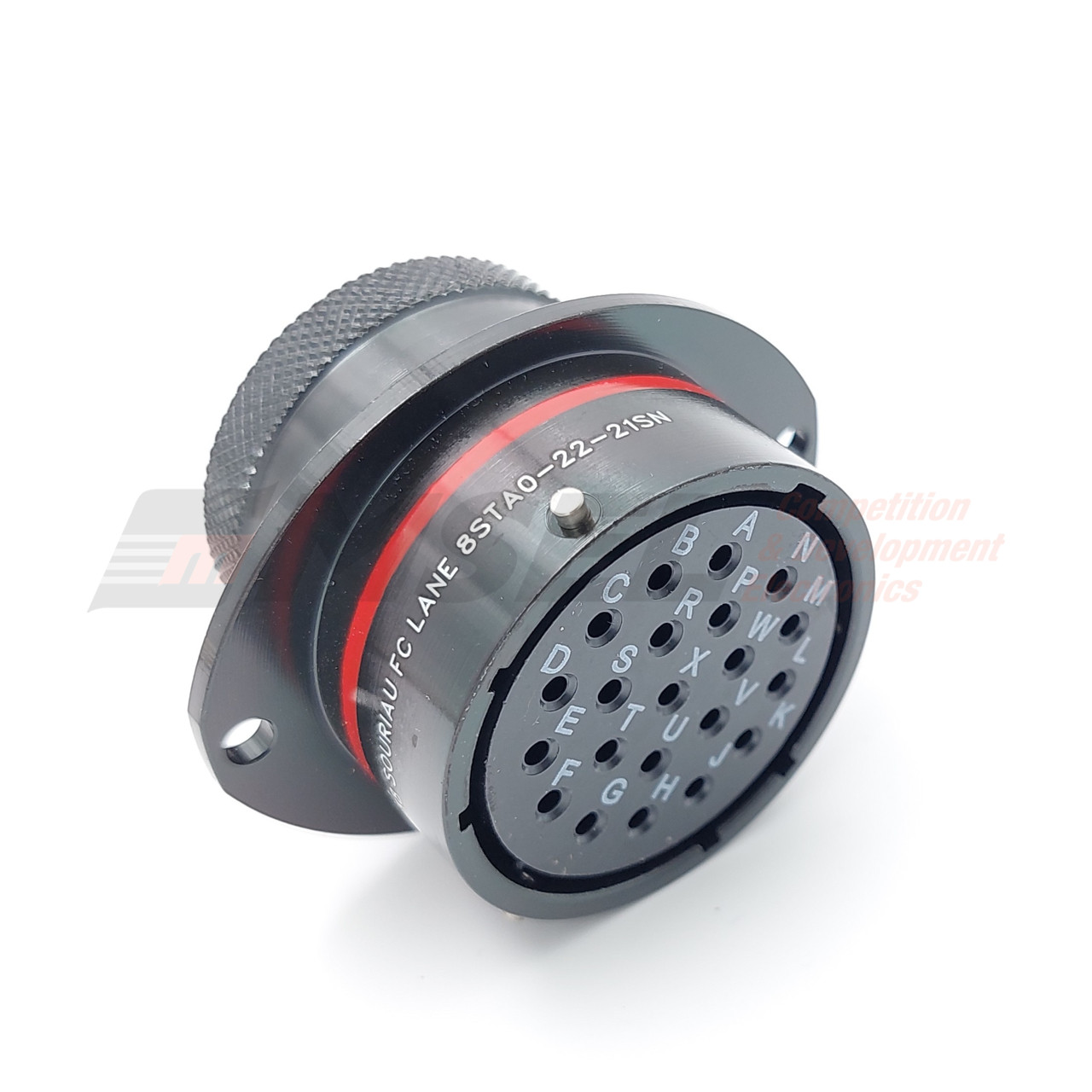

Autosport 21-Way Bulkhead Circular Connector with Size 16 Socket Terminals
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 02221SN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 22 | |
| Orientation | Red (N) | Will only mate with red connectors |

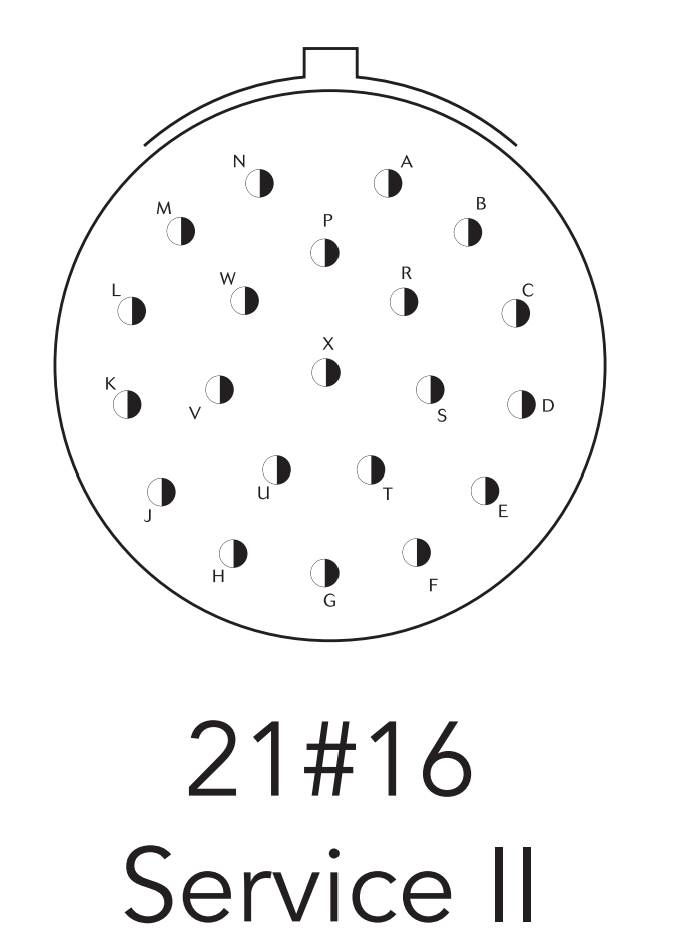

| Number of Contacts | 21 | |
| Contact Size | 16 | Supports 20 to 16AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 13 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 40.40 | 45 | 3.2 | 34.9 | 17.21 | 15.29 | 33.5 | 51 | 3 | 37.6 | 45.0 | 3.6 |
Note: all dimensions are in millimeters (mm)
