Autosport 16-Way Bulkhead Connector With Sockets - Red

SKU:
CONAS02016SN
Quantity Unit Price (Inc GST)
3 + $270.90 ($311.53)
10 + $256.65 ($295.15)

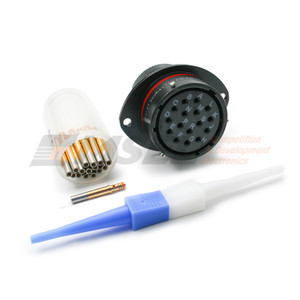

  • Autosport 16-Way Bulkhead Connector With Sockets - Red 02016SN

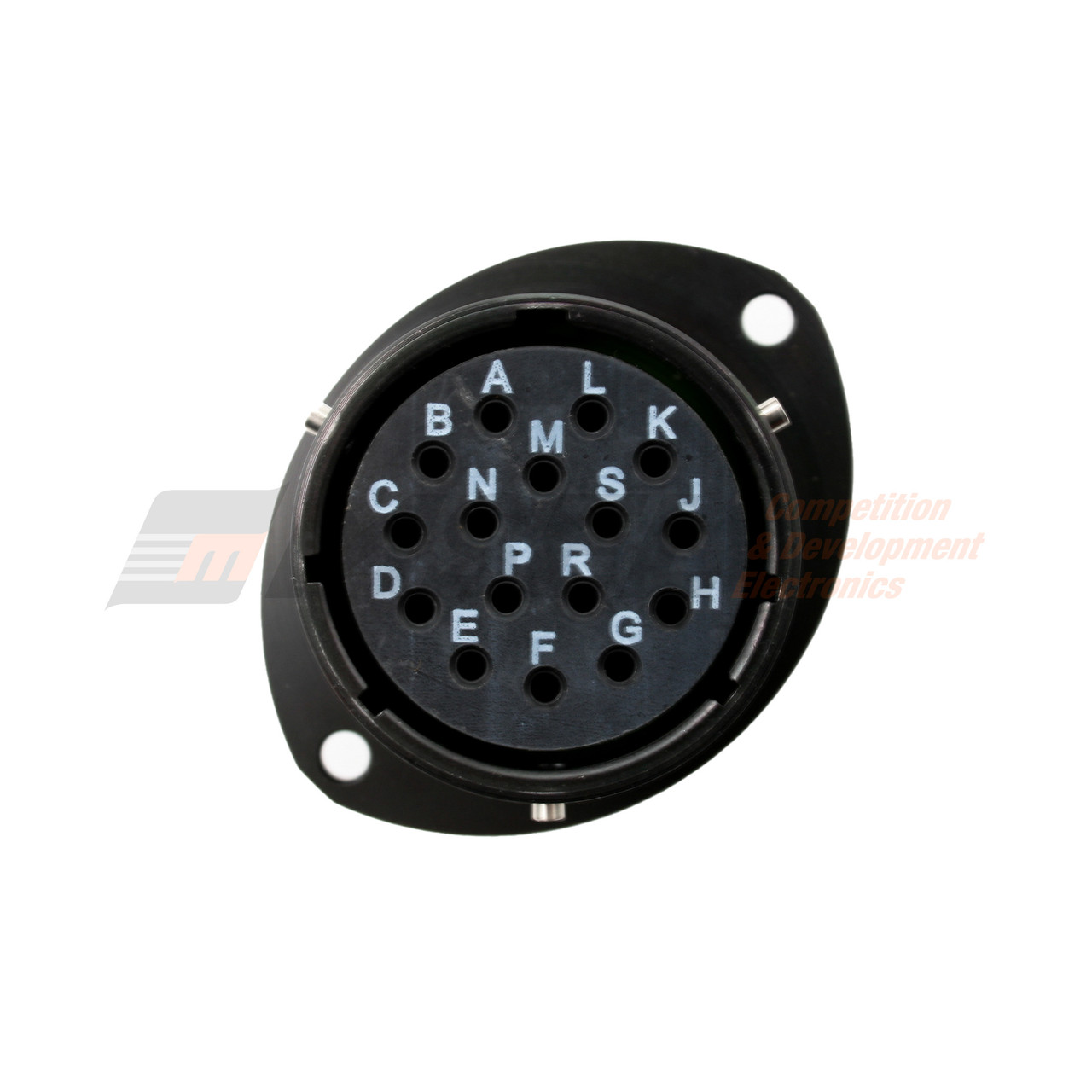

  • Autosport 16-Way Bulkhead Connector Keyway - Red 02016SN

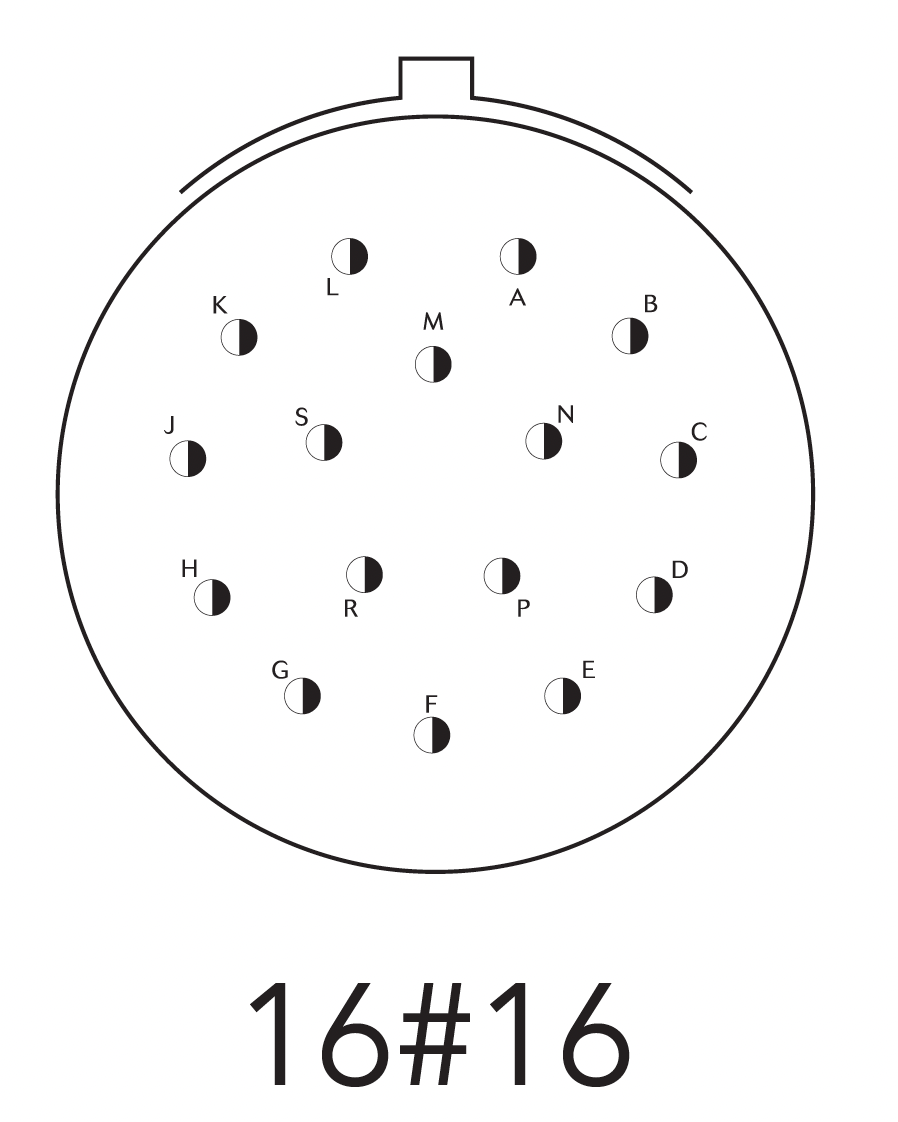

  • Autosport 16-Way Bulkhead Keyway Contact Layout 02016SN
$285.16 ($327.93) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing. Shipping calculated at checkout.

Description

Autosport 16-Way Bulkhead Connector with Size 16 Sockets - Red

Connector kit includes contacts and insert/removal tool.

Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.

Feature Specification Notes
 Part Number  02016SN
 Connector Type  Oval flange receptacle  Bulkhead mounting
 Shell Size  20
 Orientation  Red (N)  Will only mate with red connectors
 Number of Contacts  16
Contact Size  16  Supports 20 to 16AWG wire
 Contact Type  Socket  Female
 Current Rating  13 Amps
 Termination Type  Crimp
 Locator  TOOAF8TH1A  Refer to Related Products below (not incl.)
 Kit Contains  connector housing, contacts and insert/removal tool



Autosport bulkhead connector dimensions

A max. B ØC ØD E F G max. H max. P max. ØJ K ØL
37.00 41.60 3.2 31.75 17.21 15.29 33.50 47.90 3 34.60 41.60 3.60

Note: all dimensions are in millimeters (mm)
