Description
Autosport 12-Way Mixed Bulkhead Connector with 8x size 20 & 4x size 16 Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 01497SN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 14 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 12 | |

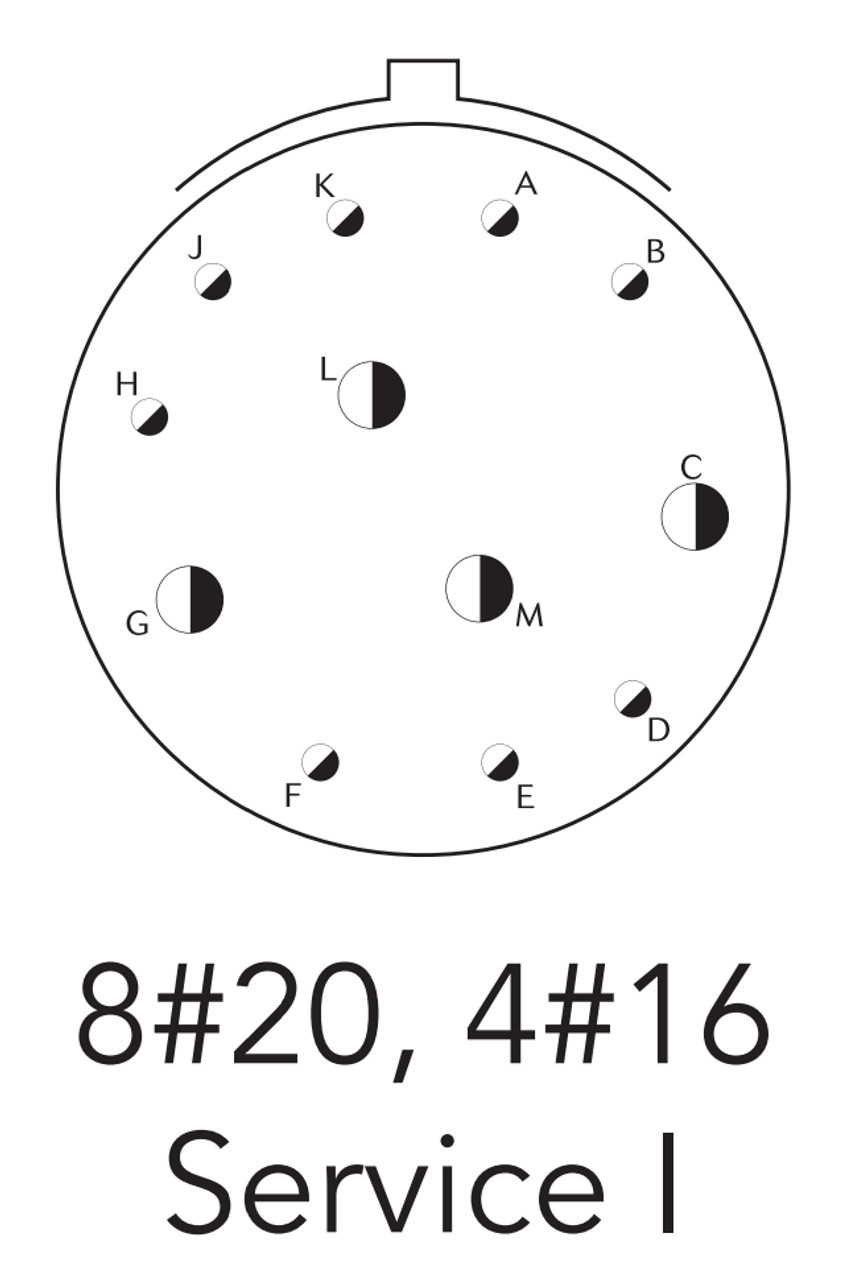

| Contact Size | 8x20 & 4x16 | Supports 8x 24 to 20 & 4x 20 to 16AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 8x 7.5 Amps & 4x 13 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 27.00 | 32.50 | 3.20 | 22.22 | 17.21 | 16.05 | 33.50 | 38.40 | 3.00 | 25.00 | 32.50 | 3.60 |
Note: all dimensions are in millimeters (mm)
