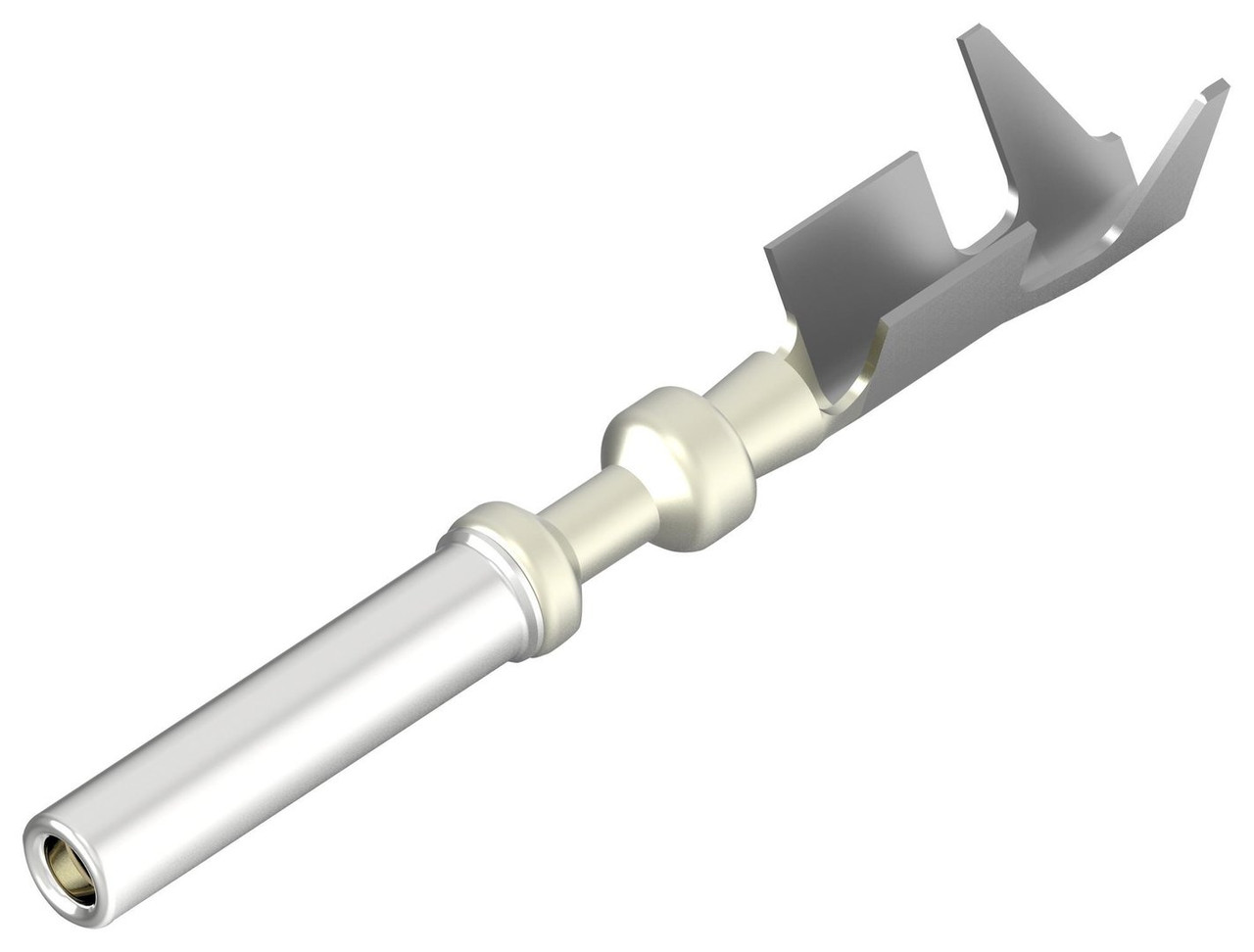

AMP SuperSeal 1.0 22AWG Socket Terminal

SKU:
TERAMPSS122
Quantity Unit Price (Inc GST)
10 + $0.85 ($0.98)
100 + $0.75 ($0.86)
500 + $0.70 ($0.80)
1000 + $0.65 ($0.75)
Per Unit
$1.00 ($1.15) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
10
Minimum Purchase:
10 units
We ship worldwide at competitive pricing. Shipping calculated at checkout.

Description

Female receptacle crimp contacts for use with SUPERSEAL Series 1.0 automotive connectors. These crimp contacts are made from copper alloy with a gold over nickel contact area and a tin over nickel crimp area

  • Terminal & Splice Type : Socket
  • Mating Pin Diameter : 1 mm [ .039 in ]
  • Terminal Transmits : 0 – 24 A (Low Power)
  • Wire Size : 22AWG / 0.34mm²

Suitable for use with common connectors found on MoTeC products as well as those from Link, Emtron, Wolf, Haltech and Syvecs.
