Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Sockets - Yellow

SKU:
CONASL00605SA
Quantity Unit Price (Inc GST)
3 + $96.21 ($110.64)
10 + $91.15 ($104.82)
  • ASL00605SA Deutsch Autosport Lite  5-Way Bulkhead Connector with Size 23 Sockets KIT
  • ASL00605SA Deutsch Autosport Lite  5-Way Bulkhead Connector with Size 23 Sockets
Per Unit
$101.28 ($116.47) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

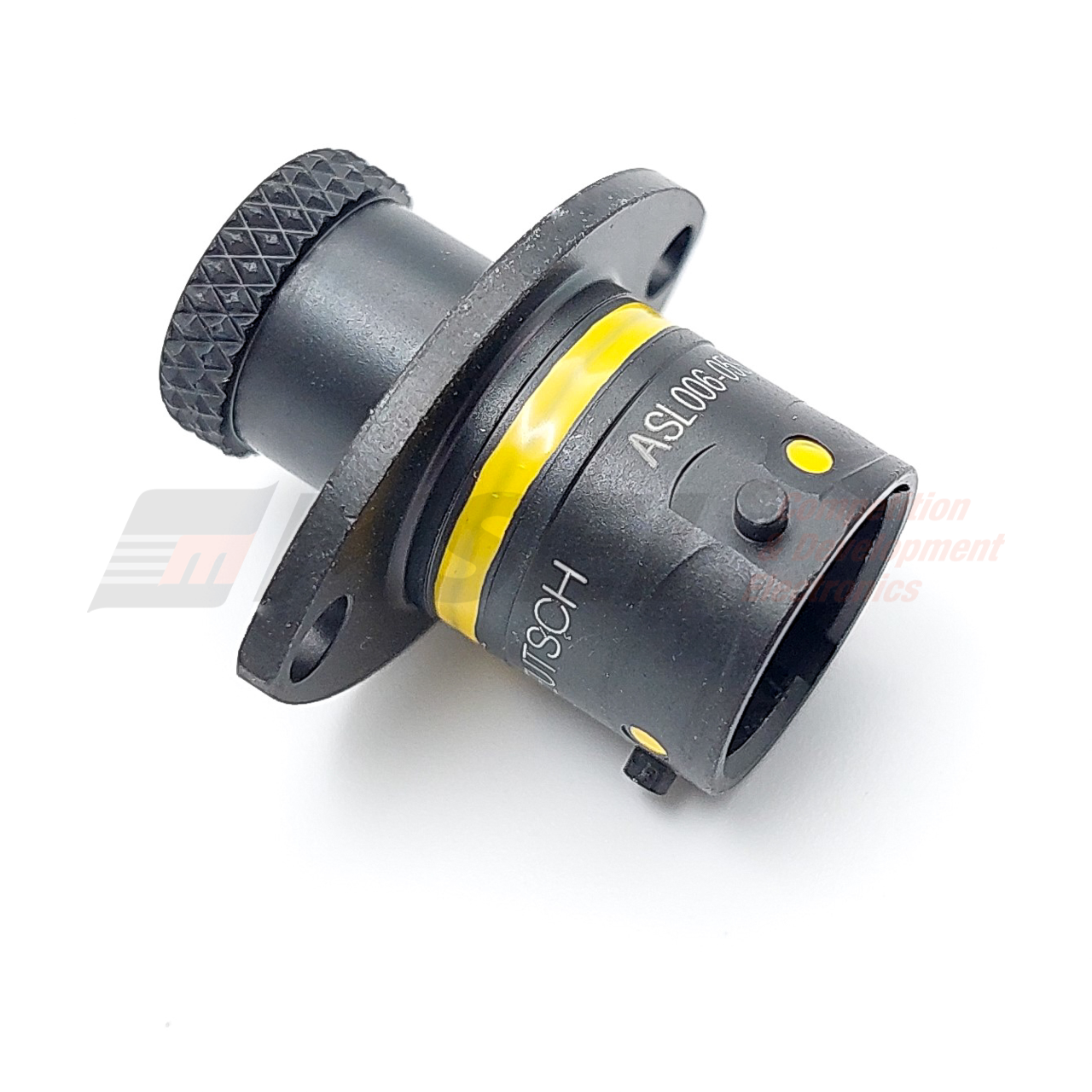

Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Sockets - Yellow

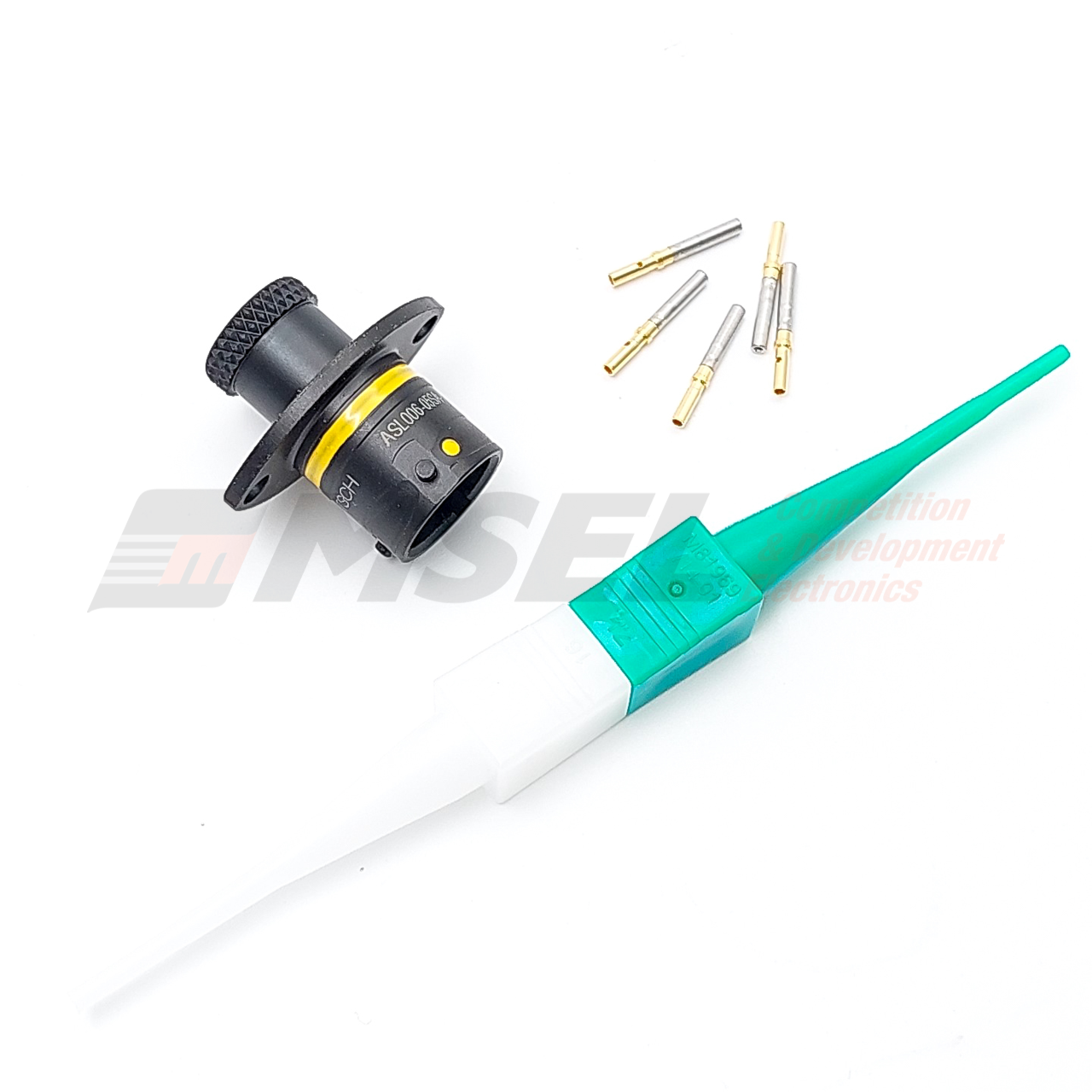

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.

Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.

Feature Specification Notes
 Part Number  00605SA
 Connector Type  Oval flange receptacle  Bulkhead mounting
 Shell Size  06
 Orientation  Yellow (A)  Will only mate with yellow connectors
 Number of Contacts  5
 Contact Size  23  Supports 28 to 22AWG wire
 Contact Type  Socket  Female
 Current Rating  3 Amps
 Termination Type  Crimp
 Locator  TOOLOC1414  Refer to Related Products below (not incl.)
 Kit Contains
connector housing, contacts and insert/removal tool

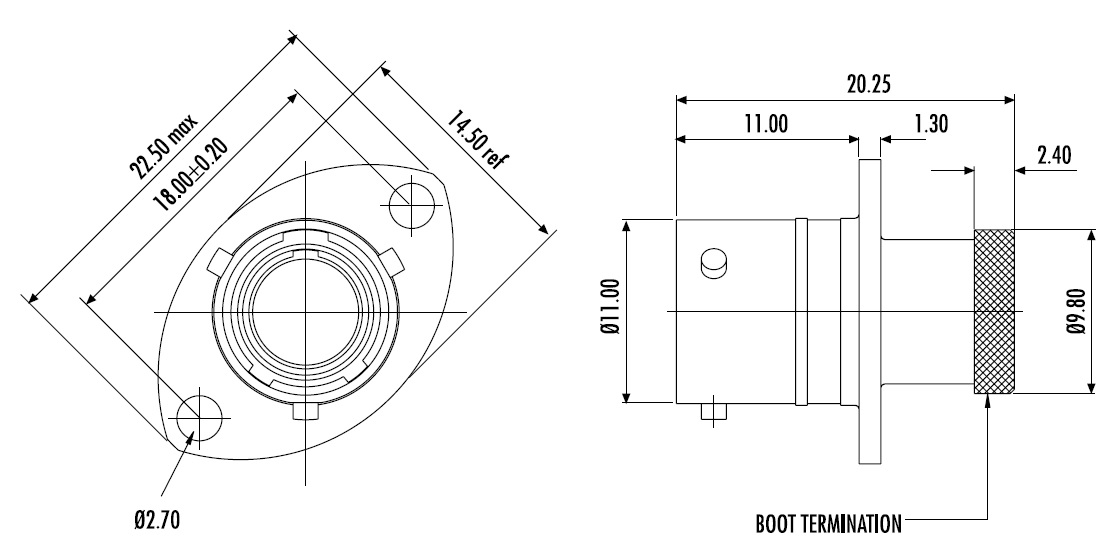

Note: all dimensions are in millimeters (mm)
