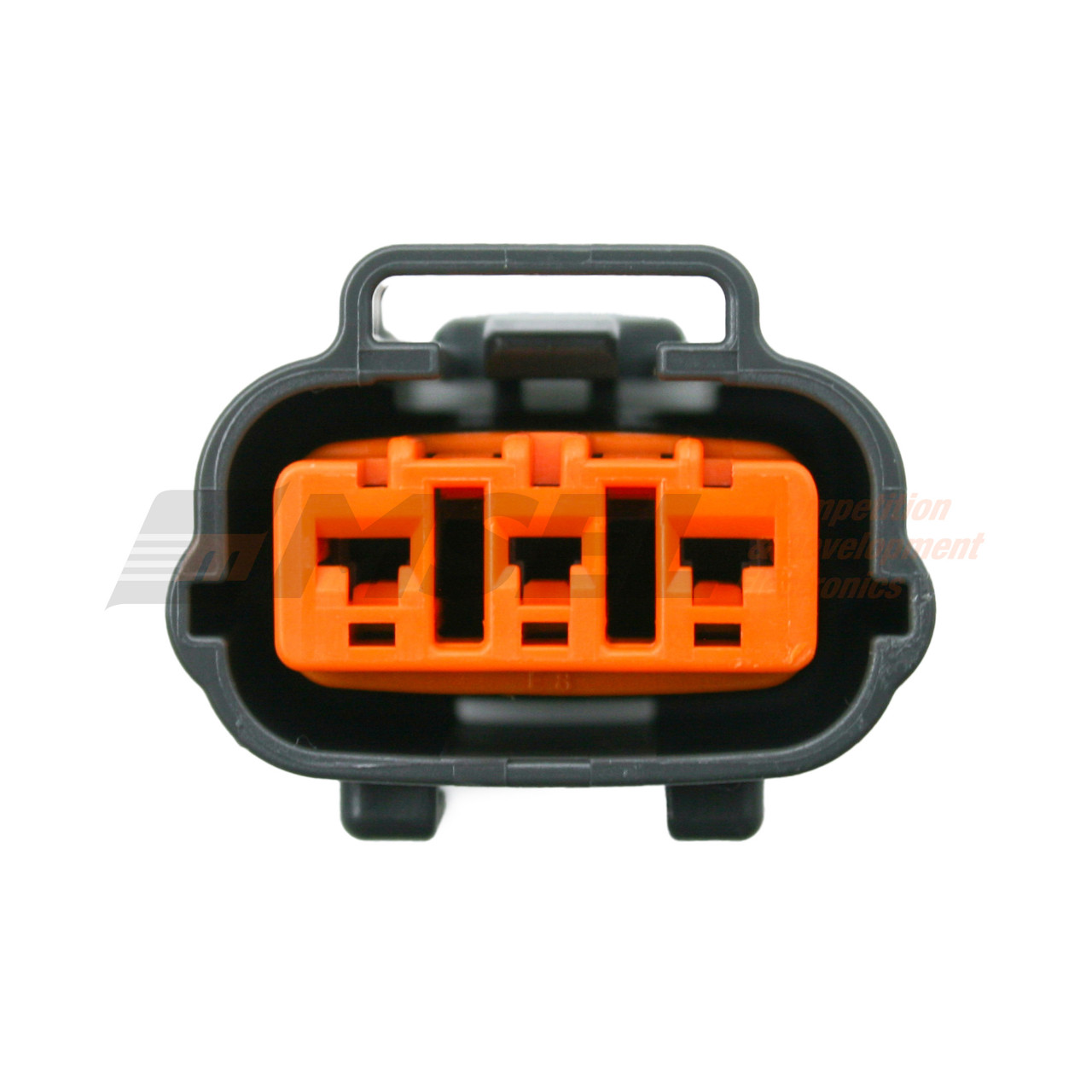

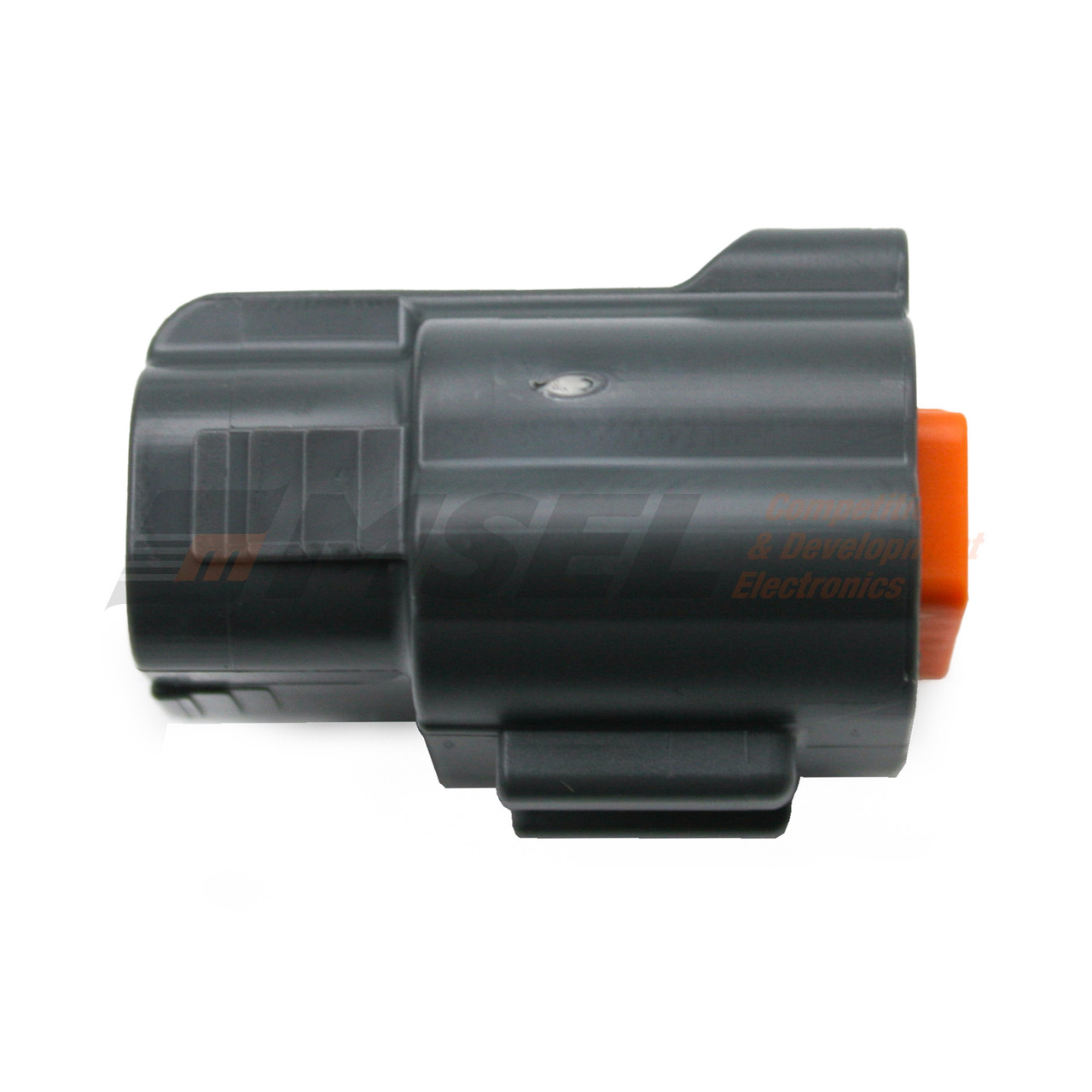

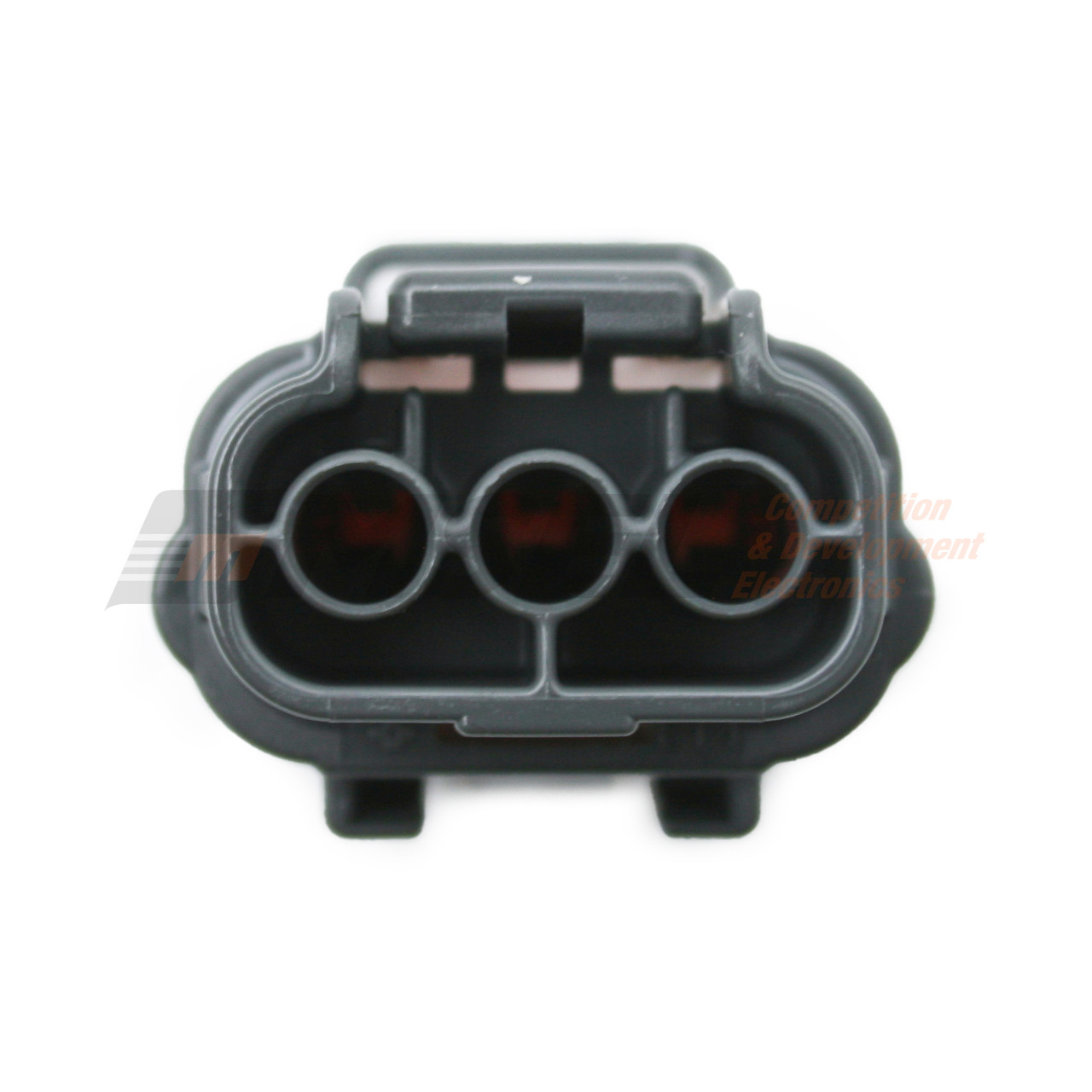

3-Way inline female connector kit for various Mazda and Mitsubishi EVO ignition coils.
- Mitsubishi EVO 4/5/6/7/8/9 Ignition coils
- Mazda MX5 NA 1.6L Ignition Coils
- Mazda RX8 Ignition Coils

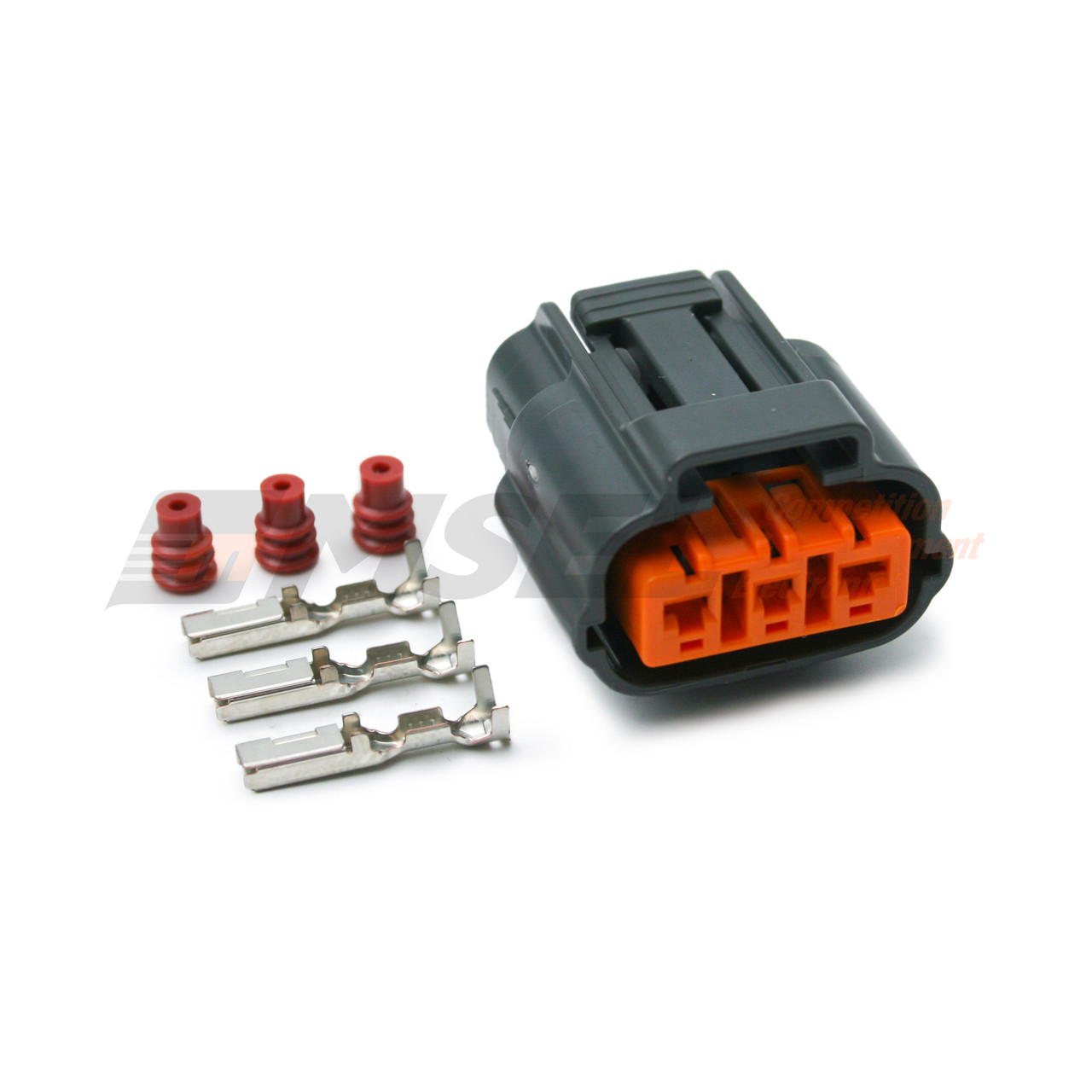

Kit includes:
- 1 x Connector Housing
- 3 x Terminals
- 3 x Wire Seals
Key Features
| Sealing: |
Single Wire Sealed |
| Number of Ways: |
3 |
| Contact Size: |
2.3mm |
| Wire Size: |
22AWG-18AWG |
| Number of Rows: |
1 |
| Pitch: |
6.0mm |
| Numbered Cavities: |
No |
| Contact Type: |
Socket, flat |
| Termination: |
Open barrel crimp |
| Lance Type: |
Housing Lance |
| Housing Material: |
PA6T |
| Mounting Style: |
Clip Slot |
| TPA: |
Yes |
| CPA: |
No |
[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
