Straight Non-Lipped Bottle Boots - Non-Glued.
HellermannTyton, Helashrink 100 series bottle shape. This style provides connector cable strain relief. Can be installed on the connector rear thread or plain shaft and allows easy re-entry for repair when combined with a hot melt adhesive. Note that this boot is not pre-glued. Glue such as Resintech RT125 is recommended.
HellermannTyton 107-1-G straight boot, bottle-shape, non-glued, for 35.1 to 51.9mm cables. Provides connector strain relief and installs on the rear thread or plain shaft. Equivalent to Raychem 202A174-25-0, rated for military and general high-performance harnessing.
BOO107-1-G
Our Price (Incl. GST)
| Qty 1+ | $51.76 ($59.52) |
| Qty 3+ | $50.47 ($58.04) |
| Qty 10+ | $49.17 ($56.55) |
Our Price (Incl. GST)
| Qty 1+ | $51.76 ($59.52) |
| Qty 3+ | $50.47 ($58.04) |
| Qty 10+ | $49.17 ($56.55) |
BOO107-1-G

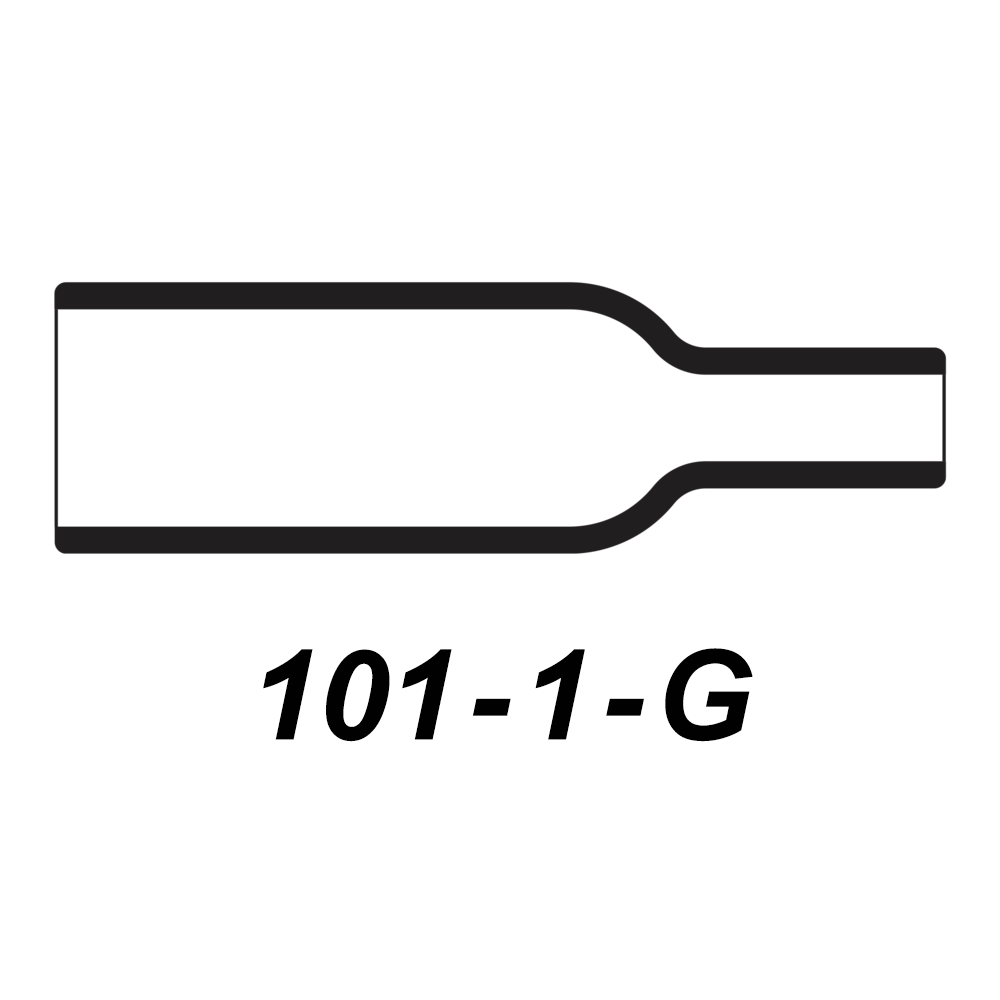

HellermannTyton 101-1-G straight boot, bottle-shape, non-glued, for 17.8 to 31mm cables. Provides connector strain relief and installs on the rear thread or plain shaft. Equivalent to Raychem 202A142, rated for military and general high-performance harnessing.
BOO101-1-G
Our Price (Incl. GST)
| Qty 1+ | $29.00 ($33.35) |
| Qty 5+ | $28.28 ($32.52) |
| Qty 10+ | $27.55 ($31.68) |
Our Price (Incl. GST)
| Qty 1+ | $29.00 ($33.35) |
| Qty 5+ | $28.28 ($32.52) |
| Qty 10+ | $27.55 ($31.68) |
BOO101-1-G
HellermannTyton 106-1-G straight boot, bottle-shape, non-glued, for 14.2 to 31mm cables. Provides connector strain relief and installs on the rear thread or plain shaft. Equivalent to Raychem 202A132, rated for military and general high-performance harnessing.
BOO106-1-G
Our Price (Incl. GST)
$19.34 ($22.24)
HellermannTyton 103-1-G straight boot, bottle-shape, non-glued, for 28.2 to 42.7mm cables. Provides connector strain relief and installs on the rear thread or plain shaft. Equivalent to Raychem 202A163, rated for military and general high-performance harnessing.
BOO103-1-G
Our Price (Incl. GST)
$29.50 ($33.93)
HellermannTyton 177-1-G ribbed straight boot, bottle-shape, non-glued, for 19.1 to 26.1mm cables. Gives strain relief on partially loaded connectors that leave small cable diameters. Made from fluid-resistant elastomer, rated -75 to +150 degrees Celsius continuous operation.
BOO177-1-G
Our Price (Incl. GST)
$35.00 ($40.25)
HellermannTyton 176-1-G straight boot, bottle-shape, non-glued, for 13 to 19.3mm cables. Gives strain relief on partially loaded connectors that leave small cable diameters. Made from fluid-resistant elastomer, rated -75 to +150 degrees Celsius continuous operation.
BOO176-1-G
Our Price (Incl. GST)
$29.09 ($33.45)
HellermannTyton 104-1-G straight boot, bottle-shape, non-glued, for 7.9 to 16.5mm cables. Provides connector strain relief and installs on the rear thread or plain shaft. Equivalent to Raychem 202A111, rated for military and general high-performance harnessing.
BOO104-1-G
Our Price (Incl. GST)
| Qty 1+ | $18.39 ($21.15) |
| Qty 10+ | $17.47 ($20.09) |
Our Price (Incl. GST)
| Qty 1+ | $18.39 ($21.15) |
| Qty 10+ | $17.47 ($20.09) |
BOO104-1-G
HellermannTyton 102-1-G straight boot, bottle-shape, non-glued, for 22.4 to 36.1mm cables. Provides connector strain relief and installs on the rear thread or plain shaft. Equivalent to Raychem 202A153, rated for military and general high-performance harnessing.
BOO102-1-G
Our Price (Incl. GST)
| Qty 1+ | $34.50 ($39.68) |
| Qty 5+ | $33.64 ($38.69) |
| Qty 10+ | $32.78 ($37.70) |
Our Price (Incl. GST)
| Qty 1+ | $34.50 ($39.68) |
| Qty 5+ | $33.64 ($38.69) |
| Qty 10+ | $32.78 ($37.70) |
BOO102-1-G

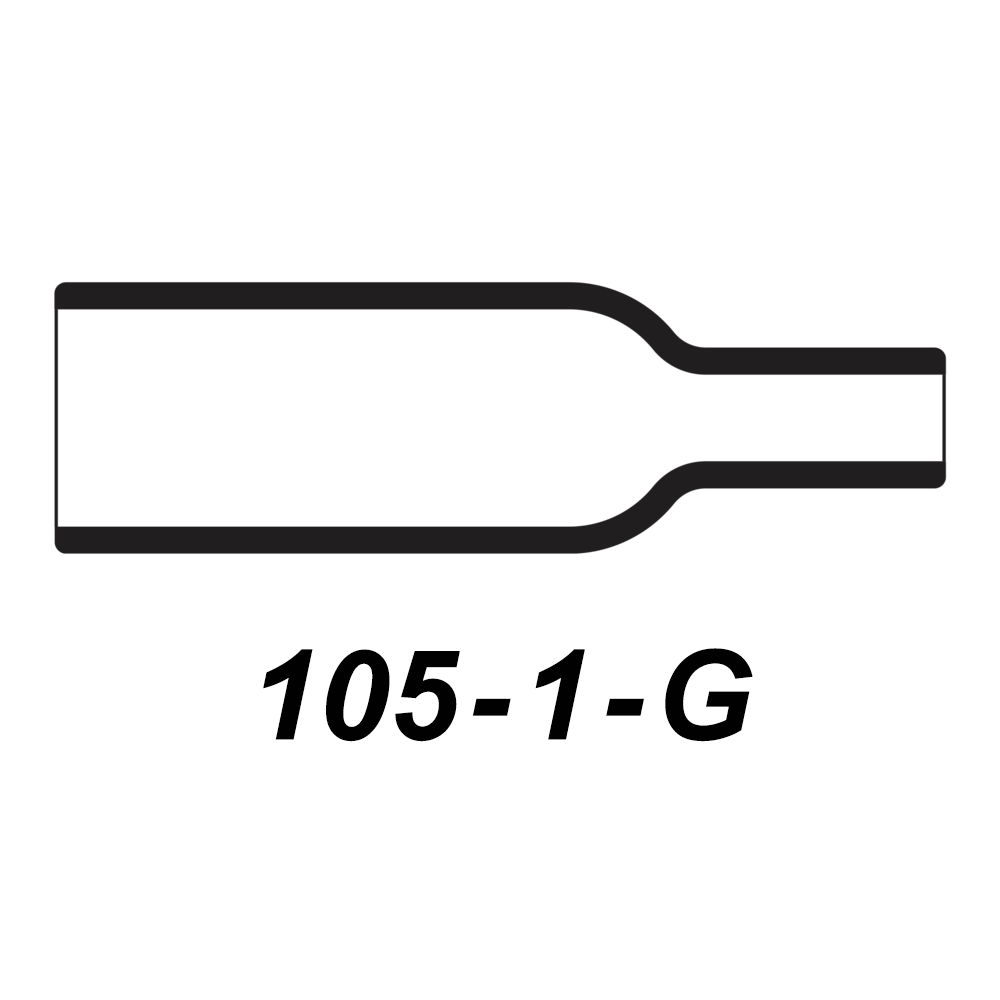

HellermannTyton 105-1-G straight boot, bottle-shape, non-glued, for 10.4 to 23.4mm cables. Provides connector strain relief and installs on the rear thread or plain shaft. Equivalent to Raychem 202A121, rated for military and general high-performance harnessing.
BOO105-1-G
Our Price (Incl. GST)
$19.34 ($22.24)
