Hellerman 176-1-G Moulded Straight Boot Non Glued
SKU: BOO176-1-G
Hellerman 176-1-G Moulded Straight Boot Non Glued
SKU: BOO176-1-G
Summary:
HellermannTyton 176-1-G straight boot, bottle-shape, non-glued, for 13 to 19.3mm cables. Gives strain relief on partially loaded connectors that leave small cable diameters. Made from fluid-resistant elastomer, rated -75 to +150 degrees Celsius continuous operation.
Excl. GST (Incl. GST)
$29.09 ($33.45)
Description:
Hellermann 176-1-G Moulded Straight Boot Without Lip
HellermannTyton, Helashrink 100 series bottle shape, straight boot without lip - non glued
This style provides connector cable strain relief in applications using partially loaded connectors, resulting in small cable diameters.
Application
Heat shrinkable moulded shape for use in electrical and electronic cable harness applications. Ideal for use on junctions in looms.

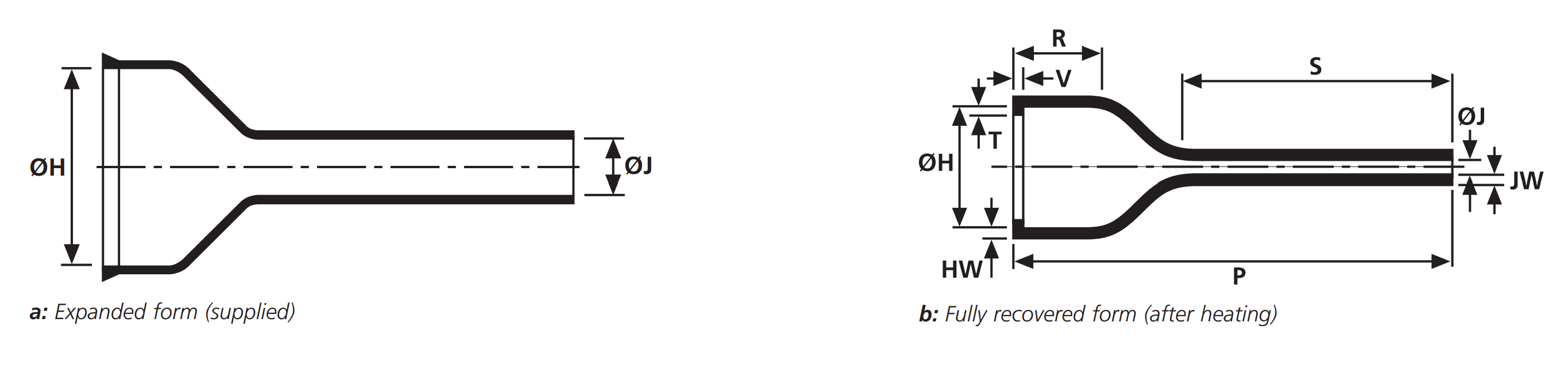

Product Dimensions
|
ØH
min. a
|
ØH
max. b
|
ØJ
min. a
|
ØJ
max. b
|
P
+/- 10%
|
R
max.
|
HW
+/- 20%
|
JW
+/- 30%
|
V
max
|
S
nom
|
| 19.3 | 13 | 6.3 | 2.1 | 60.0 | 11.7 | 1.5 | 1.1 | 3.3 | 38 |
Note: all dimensions are in millimeters (mm)
Additional Product Information
Note that this boot is not pre-glued. Glue such as Resintech RT125 is recommended.
|
Feature
|
Specification
|
| Material | Fluid resistant elastomer |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 202D921 |
