Autosport 29-Way Plug Connector with Size 16 Pins - Red
SKU: CONAS62429PN
Autosport 29-Way Plug Connector with Size 16 Pins - Red
SKU: CONAS62429PN
Summary:
Autosport 29-way plug connector with Size 16 pin contacts, red keyway. Crimp terminated, supports 20 to 16 AWG wire, rated 13 amps per contact. Mates with the CONAS02429SN bulkhead receptacle, same shell size and keyway.
Excl. GST (Incl. GST)
$366.98 ($422.03)
Buy in Bulk and Save!
Description:
Autosport 29-Way Plug Connector with Size 16 Pins - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 62429PN | |
| Connector Type | Plug | |
| Shell Size | 24 | |
| Orientation | Red (N) | Will only mate with red connectors |

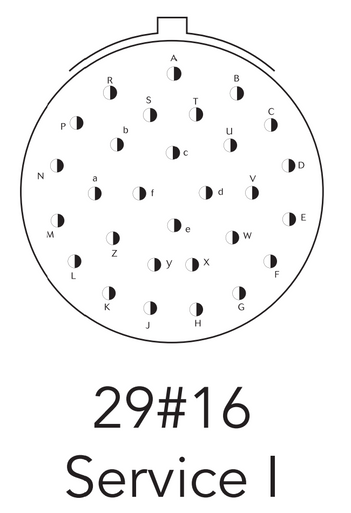

| Number of Contacts | 29 | |
| Contact Size | 16 | Supports 20 to 16AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 13 Amps | |
| Termination Type | Crimp | |
| Locator | AF8 Frame TH163 locator | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
|
| ØA max. | B max. |
| 44.50 | 19.05 |
Note: all dimensions are in millimeters (mm)
