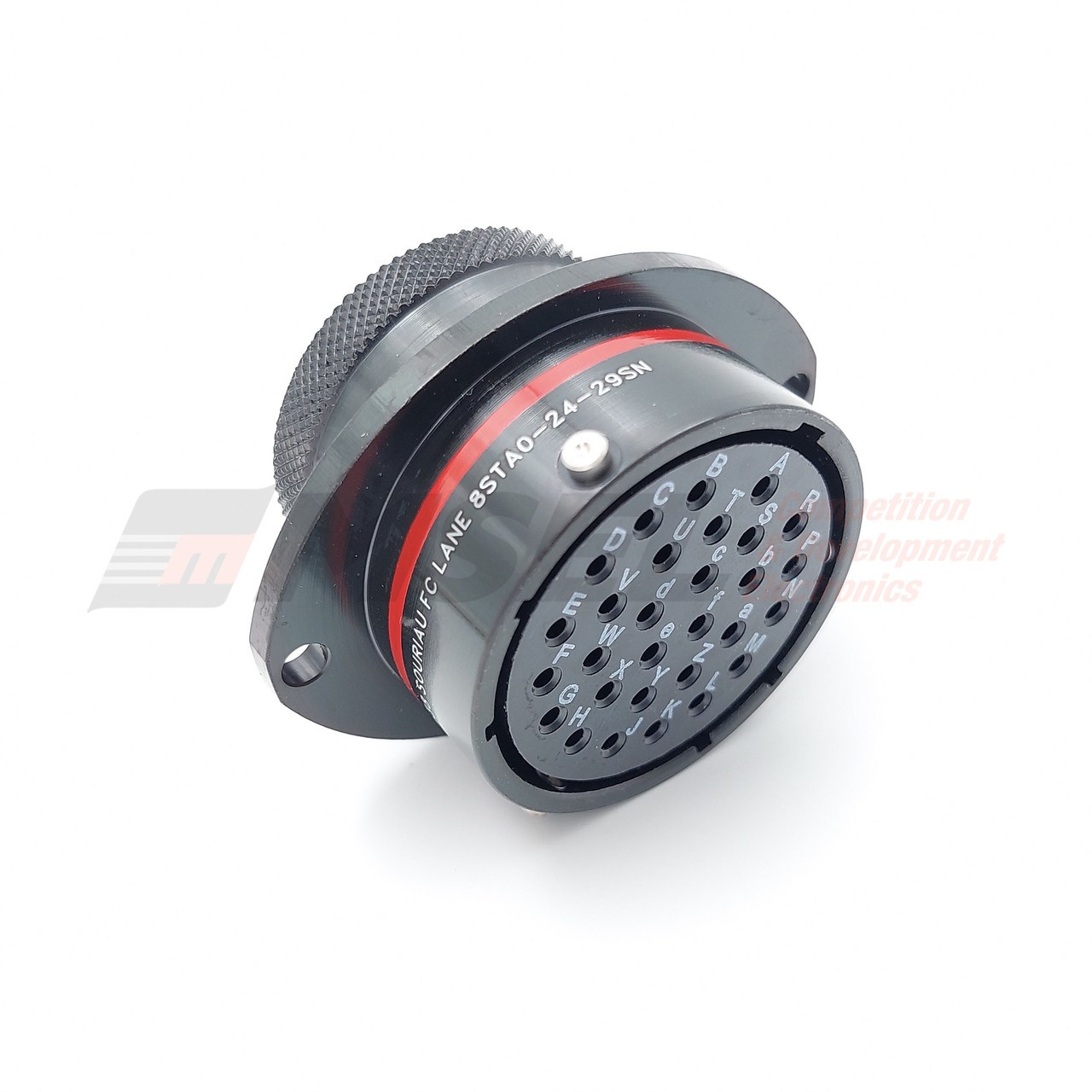

Autosport 29-Way Bulkhead Connector with Size 16 Sockets - Red

SKU: CONAS02429SN

Autosport 29-Way Bulkhead Connector with Size 16 Sockets - Red
Excl. GST (Incl. GST)
$408.24 ($469.48)
Buy in Bulk and Save!

Description:

Autosport 29-Way Bulkhead Connector Size 16 Sockets - Red

Connector kit includes contacts and insert/removal tool. Aluminium housing with black zinc coating.

Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.

Feature Specification Notes
 Part Number  02429SN
 Connector Type  Oval flange receptacle  Bulkhead mounting
 Shell Size  24
 Orientation  Red (N)  Will only mate with red connectors

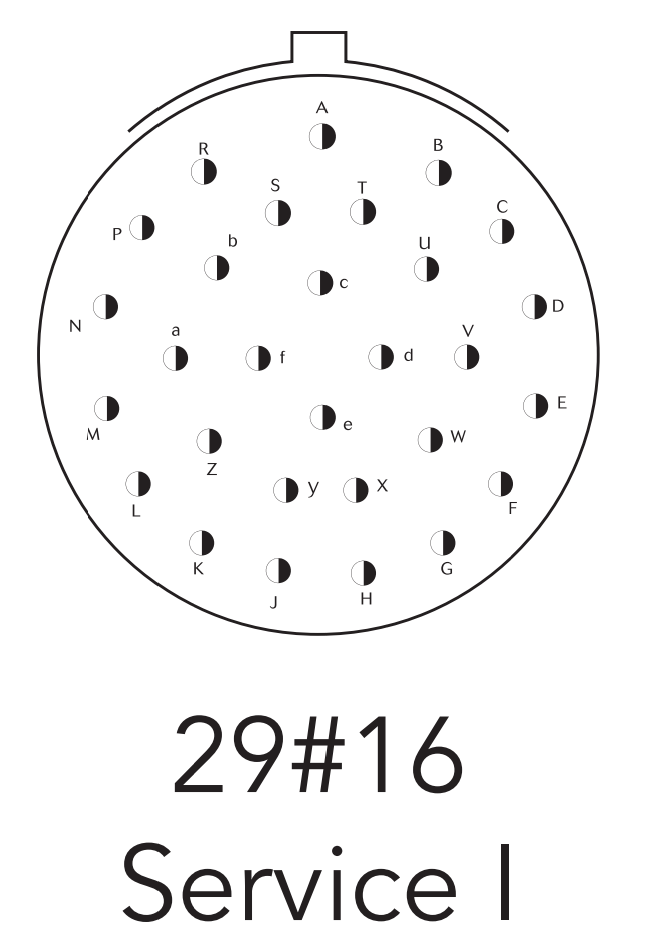

 Number of Contacts  29
 Contact Size  16  Supports 20 to 16AWG wire
 Contact Type  Socket  Female
 Current Rating  13 Amps
 Termination Type  Crimp
 Locator  TOOAF8TH1A  Refer to Related Products below (not incl.)
 Kit Contains
connector housing, contacts and insert/removal tool

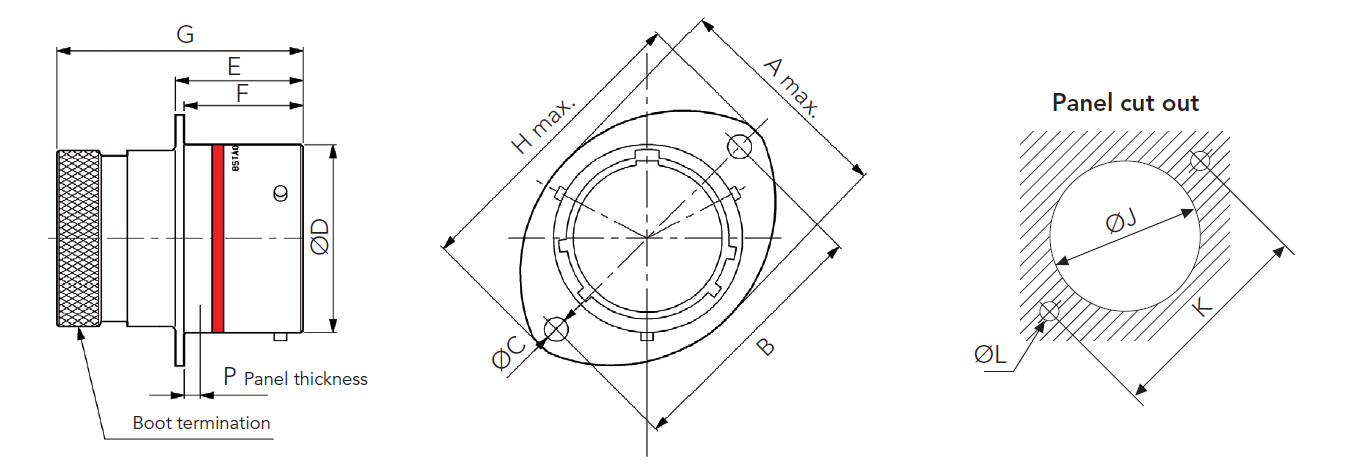

Autosport bulkhead connector dimensions

A max. B ØC ØD E F G max. H max. P max. ØJ K ØL
43.40 49.50 3.77 38.10 18.20 15.29 33.5 55.80 3.00 41.00 49.50 4.10

Note: all dimensions are in millimeters (mm)
