Description
General M150 Specifications
Injectors:
Peak & Hold Injector Outputs: 12
Low Side Injector Outputs: 6
Ignition:
Low Side Ignition Outputs (max): 12
Auxiliary Outputs:
Half Bridge Outputs: 10
Inputs:
Universal Digital Inputs: 12
Digital Inputs: 4
Analogue Voltage Inputs: 17
Analogue Temperature Inputs: 6
Knock Inputs: 4
Lambda (Narrow Band): 2
Data:
CAN Bus: 3
RS232: 1
LIN: 1
Logging Memory: 250MB

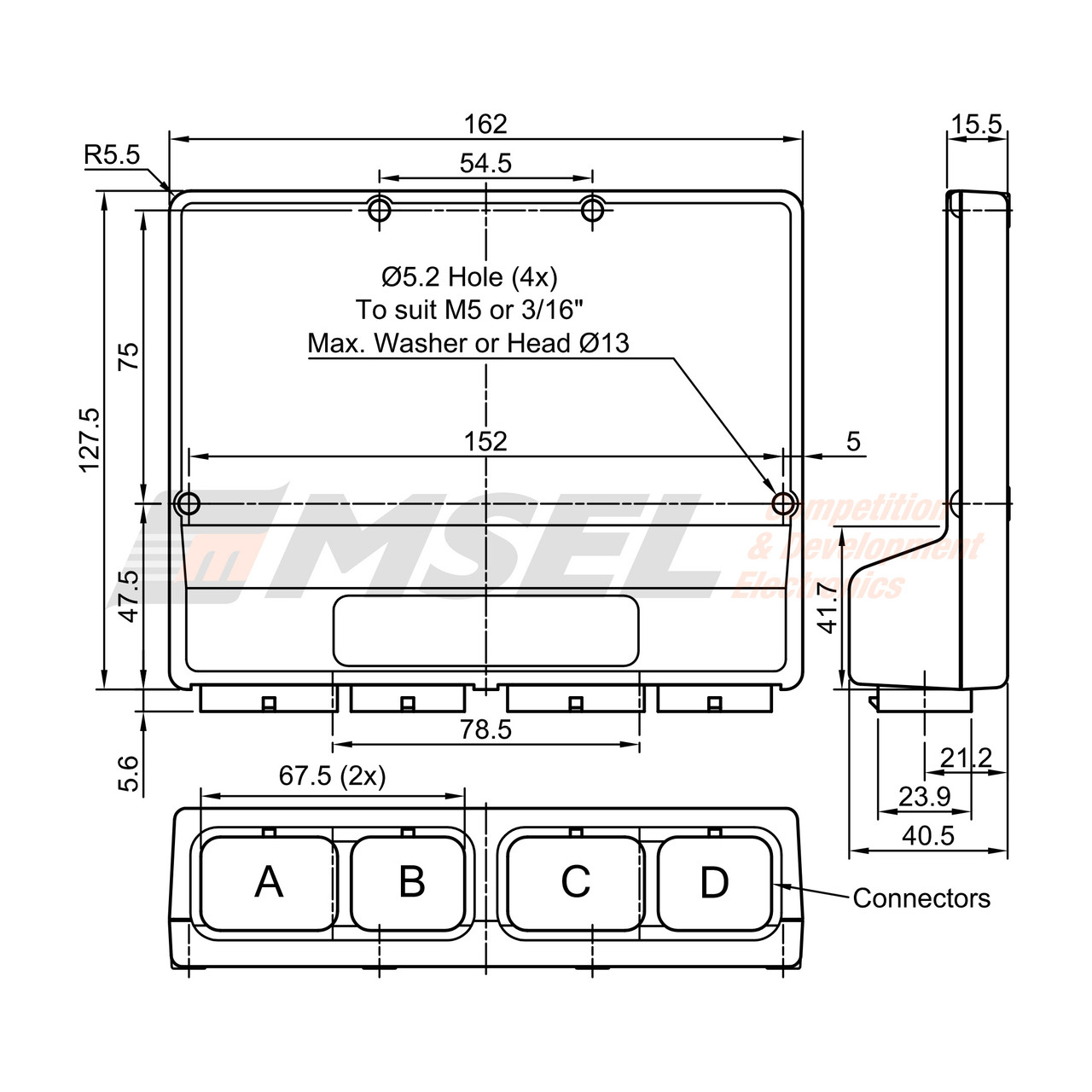

Dimensions:
Size (mm): 162x127x40
Weight (g): 445
Connector type: AMP Superseal 1.0
Number of connectors: 4
Pins: 120
