Description
Available ex-stock for immediate delivery
GPA, GPR, GPRP

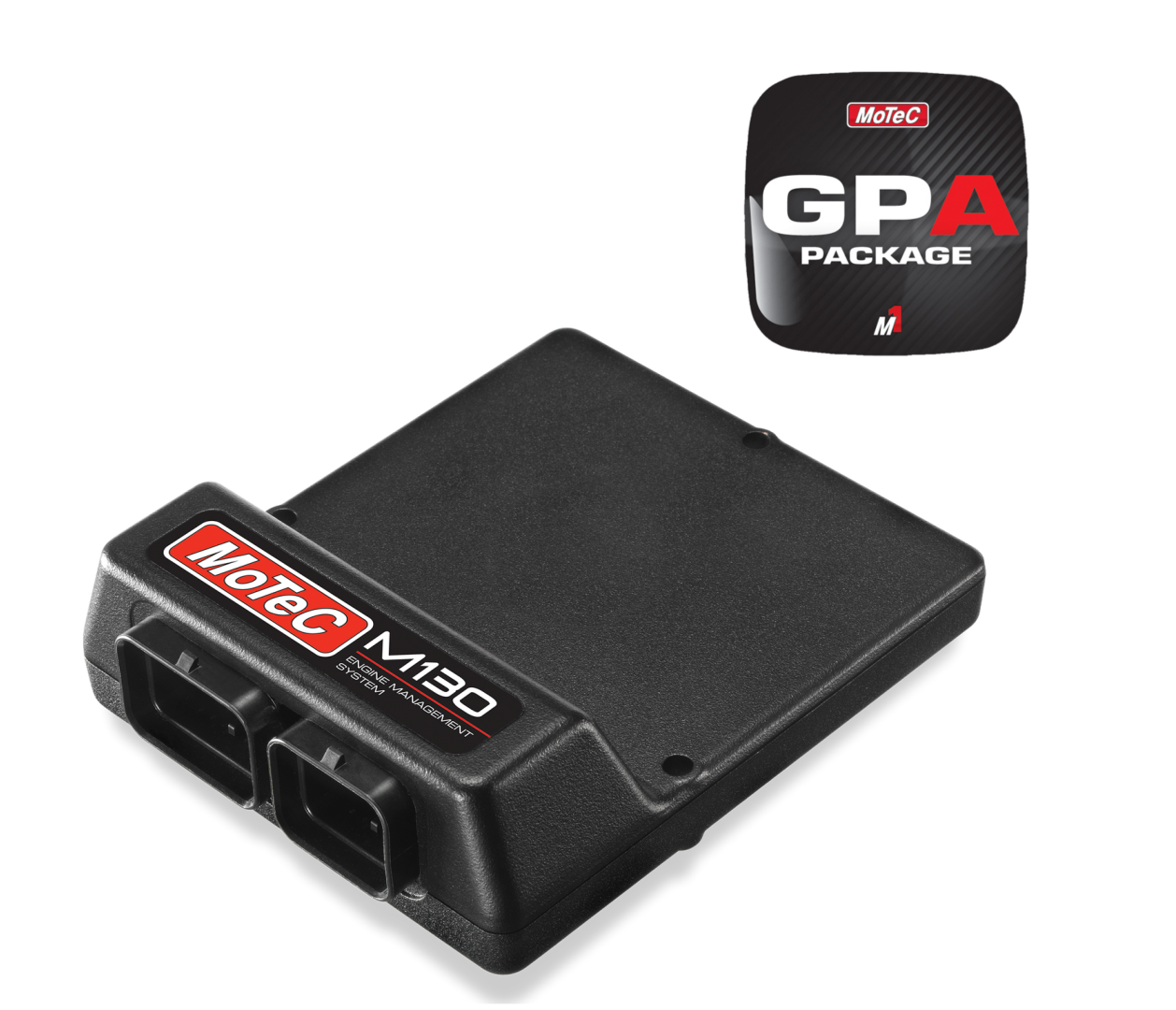

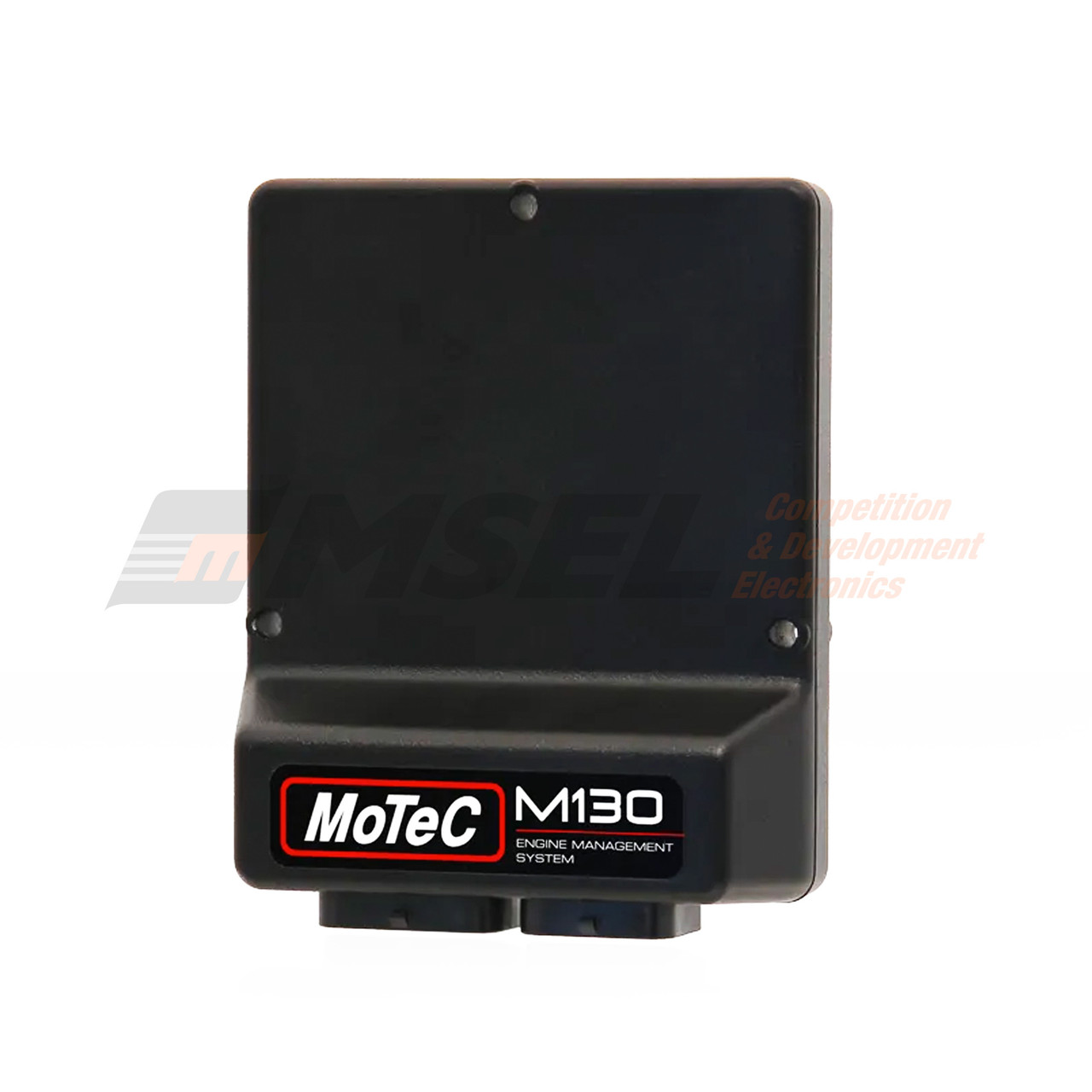

Motec's exciting range of M1 engine management systems are now available.
The M130 includes the following as standard
- drive by wire
- variable cam control
- knock
General M130 Specifications:
Injectors:
Peak & Hold Injector Outputs: 8
Low Side Injector Outputs: 2
Ignition:
Low Side Ignition Outputs (max): 8
Auxiliary Outputs:
Half Bridge Outputs: 6
Inputs:
Universal Digital Inputs: 7
Analogue Voltage Inputs: 8
Analogue Temperature Inputs: 4
Knock Inputs: 2
Data:
CAN Bus: 1
Logging Memory: 120MB
Dimensions:
Size (mm): 107x127x39
Weight (g): 300
Connector type: AMP Superseal 1.0
Number of connectors: 2
Pins: 60
