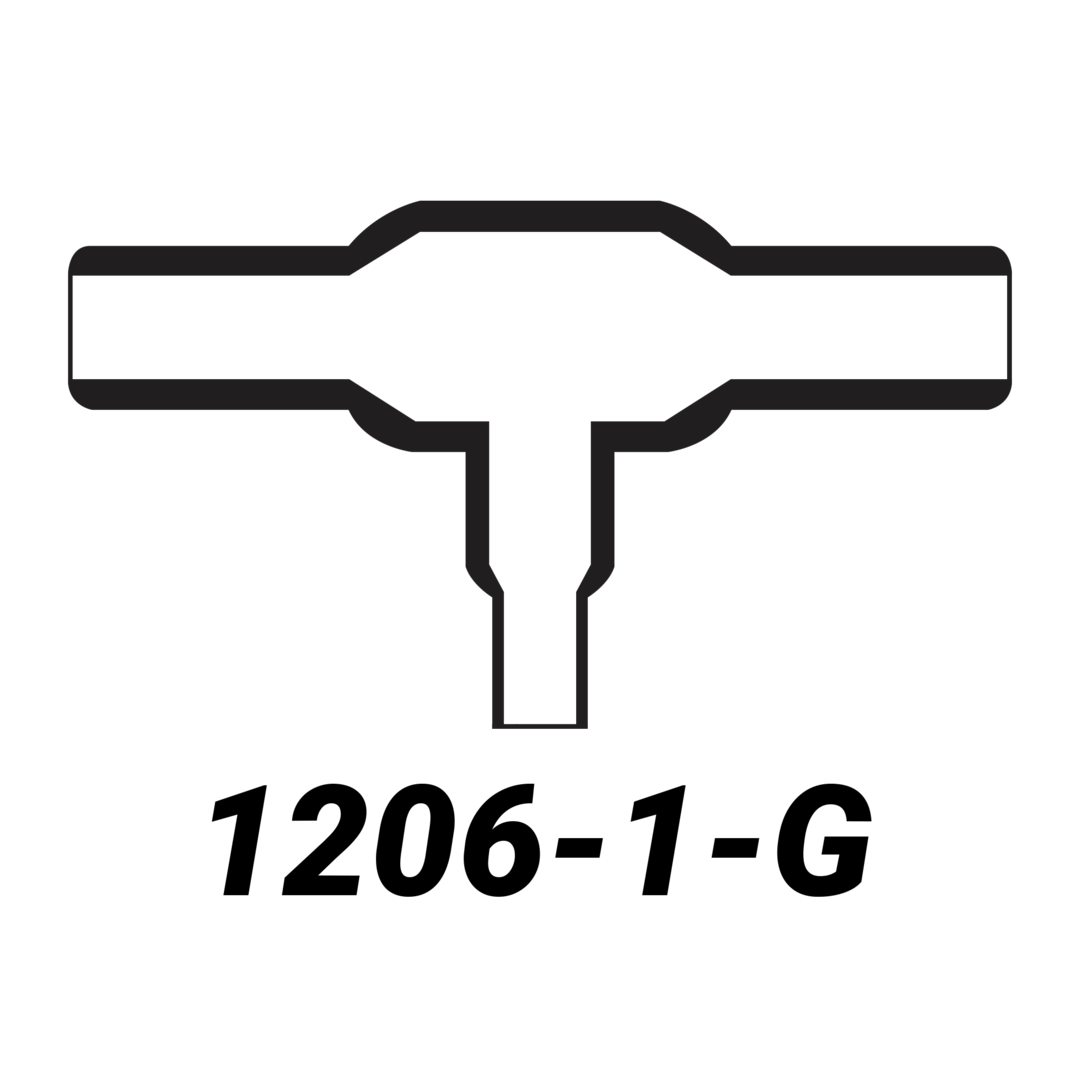

The HellermannTyton 1206-1-G is a heat-shrinkable moulded T boot for electrical and electronic cable harness applications, providing cable sealing, strain relief and mechanical protection. It is the non-glued equivalent of the Raychem 301A011-25-0 T boot.

Specifications

• Manufacturer: HellermannTyton
• Part number: 1206-1-G
• HellermannTyton article number: 412-06180
• Specification: VG 95343 T08 A 009 A
• Type: moulded T boot, heat-shrinkable, non-glued
• Equivalent: Raychem 301A011-25-0
• Leg diameter, expanded as supplied (ØH/J, ØK): 6.6 mm (0.26 in) minimum
• Leg diameter, fully recovered (ØH/J, ØK): 3.0 mm (0.12 in) maximum
• Recovered overall length (P): 29.7 mm (1.17 in) ±10%
• Recovered main leg end to branch centreline (R): 14.7 mm (0.58 in) ±10%
• Recovered main leg centreline to branch end (S): 14.7 mm (0.58 in) ±10%
• Recovered wall thickness, legs H and K (HW, KW): 1.0 mm (0.04 in) ±20%
• Recovered wall thickness, leg J (JW): 1.0 mm (0.04 in) ±30%

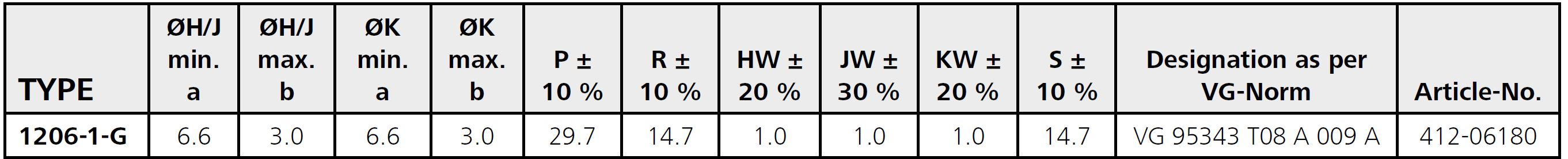

According to the 1206-1-G sizes and type table, recovered dimensions apply to the fully recovered form after heating.

Sizing

Each leg shrinks from 6.6 mm expanded to 3.0 mm or less when heated.

Fitting

This boot is not pre-glued; Resintech RT125 glue is recommended (sold separately).
