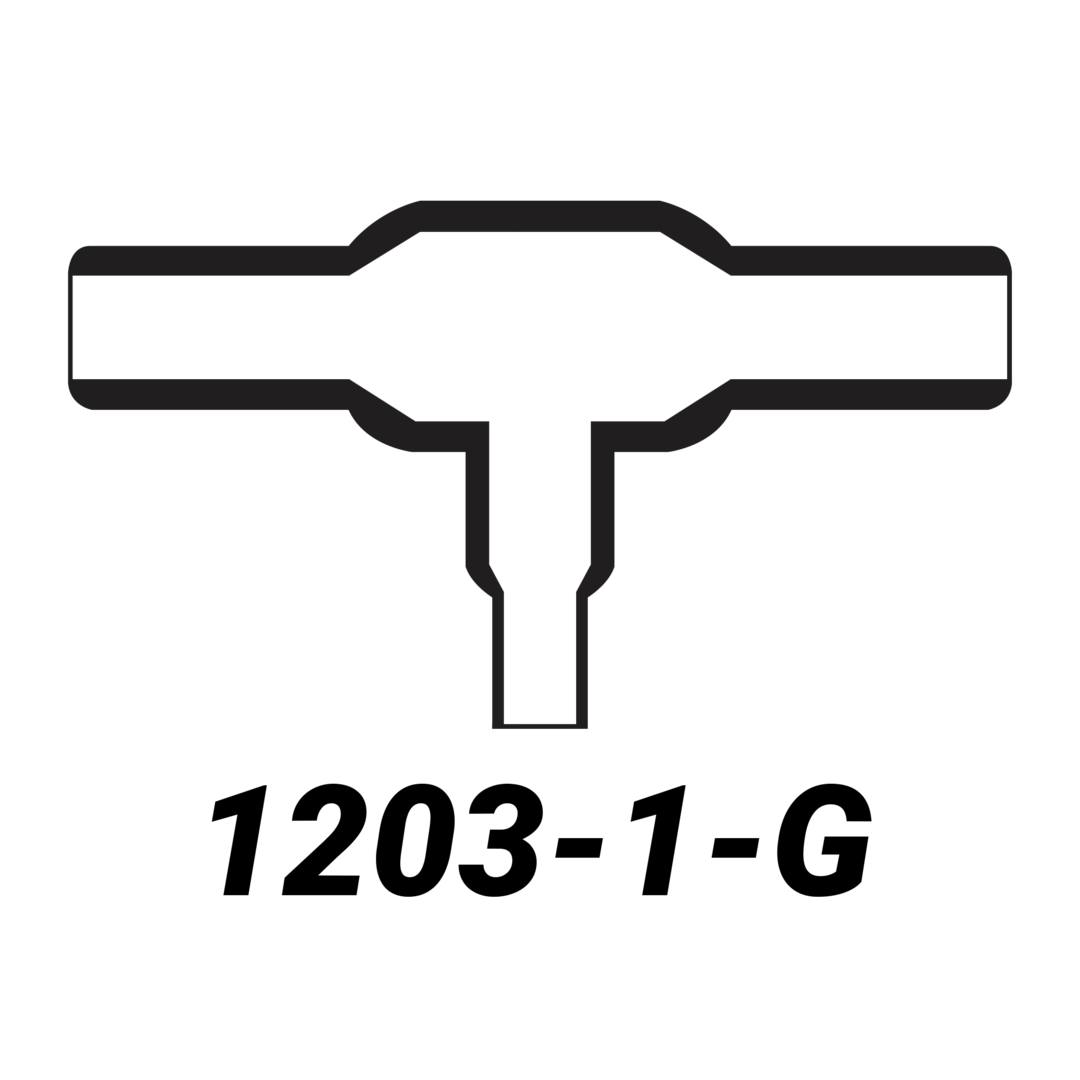

The HellermannTyton 1203-1-G is a heat-shrinkable moulded T boot for electrical and electronic cable harness applications, providing cable sealing, strain relief and mechanical protection. It is the non-glued equivalent of the Raychem 322A112-25-0 T boot.

Specifications

• Manufacturer: HellermannTyton
• Part number: 1203-1-G
• Specification: VG95343T08A001A
• Type: moulded T boot, heat-shrinkable, non-glued
• Equivalent: Raychem 322A112-25-0
• Main leg diameter, expanded as supplied (ØH/J): 13.2 mm (0.52 in) minimum
• Main leg diameter, fully recovered (ØH/J): 6.0 mm (0.24 in) maximum
• Branch leg diameter, expanded as supplied (ØK): 6.5 mm (0.26 in) minimum
• Branch leg diameter, fully recovered (ØK): 3.0 mm (0.12 in) maximum

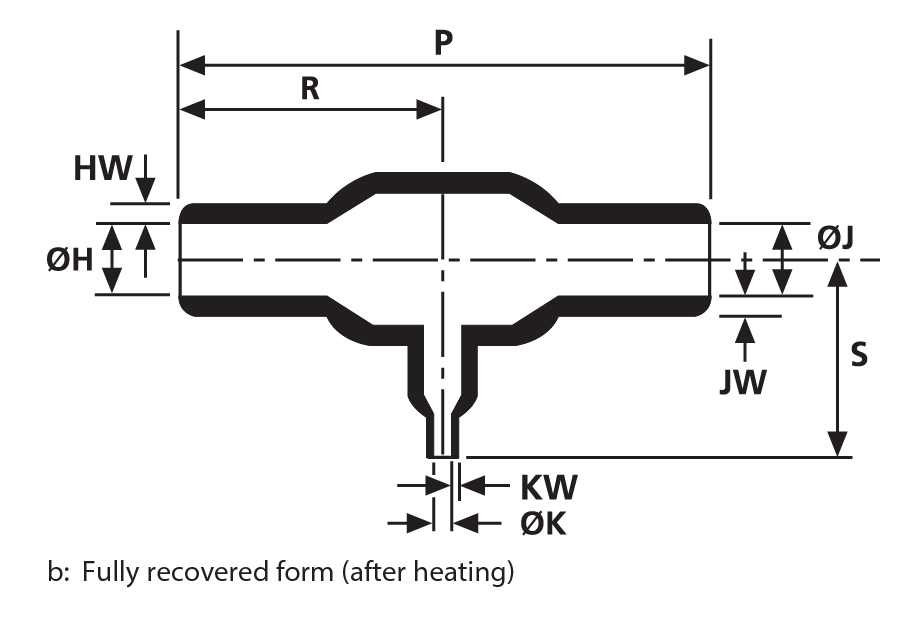

• Recovered overall length (P): 52.0 mm (2.05 in) ±10%
• Recovered main leg end to branch centreline (R): 26.0 mm (1.02 in) ±10%
• Recovered main leg centreline to branch end (S): 19.3 mm (0.76 in) ±10%
• Recovered wall thickness, main legs (HW, JW): 1.5 mm (0.06 in) ±20%
• Recovered wall thickness, branch leg (KW): 1.0 mm (0.04 in) ±20%

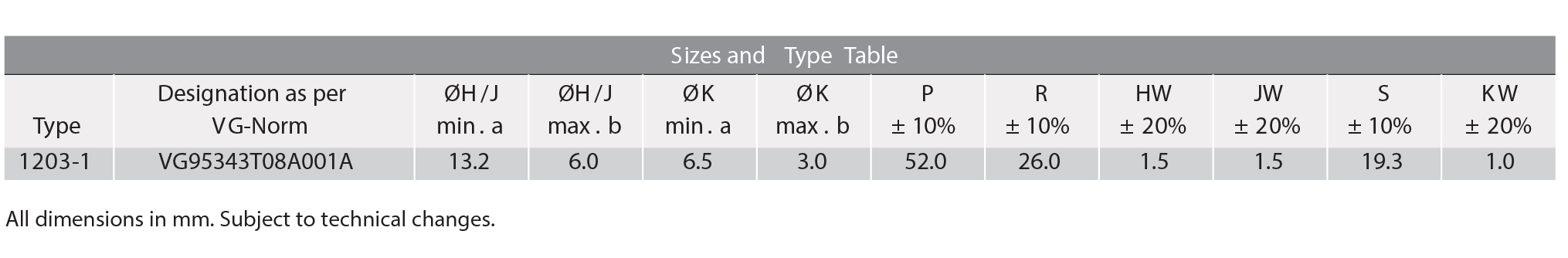

According to the 1203-1-G sizes and type table, all dimensions are in millimetres and subject to technical changes.

Sizing

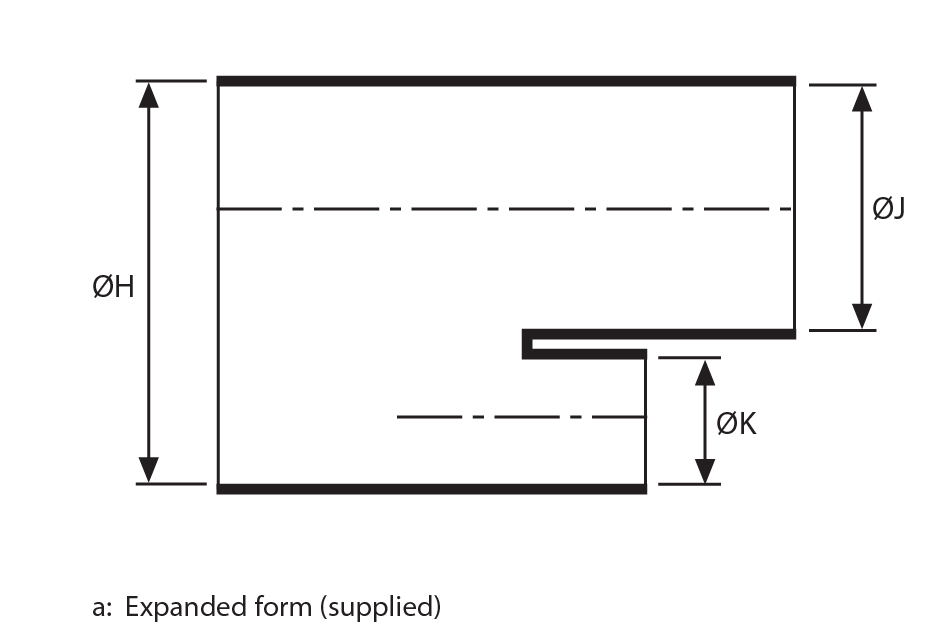

The main legs shrink from 13.2 mm expanded to 6.0 mm or less, and the branch leg from 6.5 mm to 3.0 mm or less, when heated.

Fitting

This boot is not pre-glued; Resintech RT125 glue is recommended (sold separately).
