Description
Hall effect gear tooth sensor with Deutsch DTM connector
Direct physical replacement for the discontinued Honeywell GT101 / 1GT101DC sensor.
Features:
- senses ferrous metal targets
- digital current sinking output (open collector)
- better signal to noise ratio than variable reluctance sensors
- excellent low speed performance
- output amplitude not dependent on RPM
- sensor electronically self-adjusts to slight variations in runout and temperature. simplifying installation and maintenance
- fast operating speed - over 100KHz
- EMI resistant
- reverse polarity protection
Common uses include:
- camshaft and crankshaft speed/position
- transmission speed
- tachometers
- anti-skid / traction control
- sprocket speed
- stop motion detection
Target Material: Ferrous metal (steel)
Operating Temperature: -40 to +125 Degrees C
Supply Voltage: 4.75-24VDC
Accessories (sold separately)

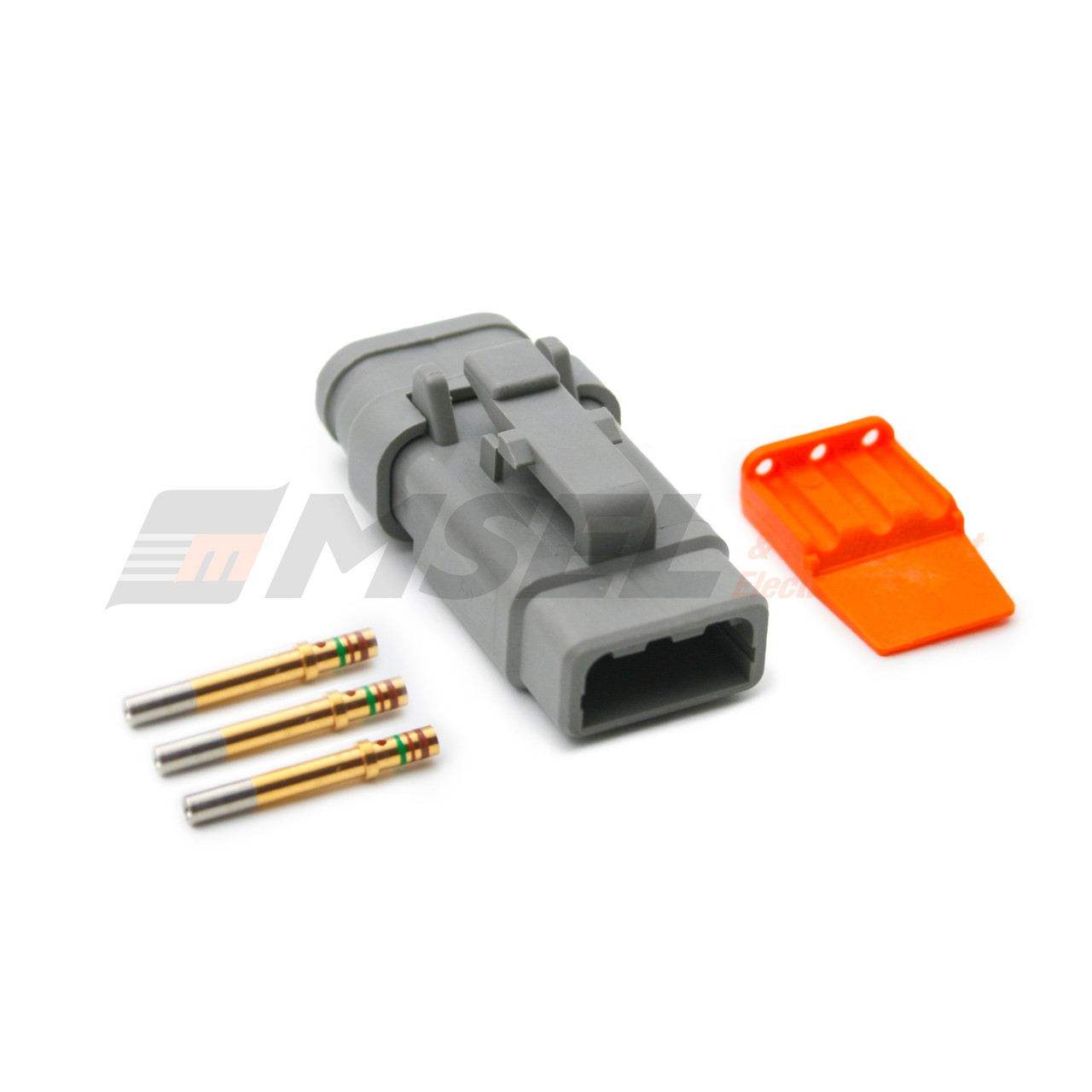

- Deutsch DTM 3-Way Plug Kit click here.
