Description

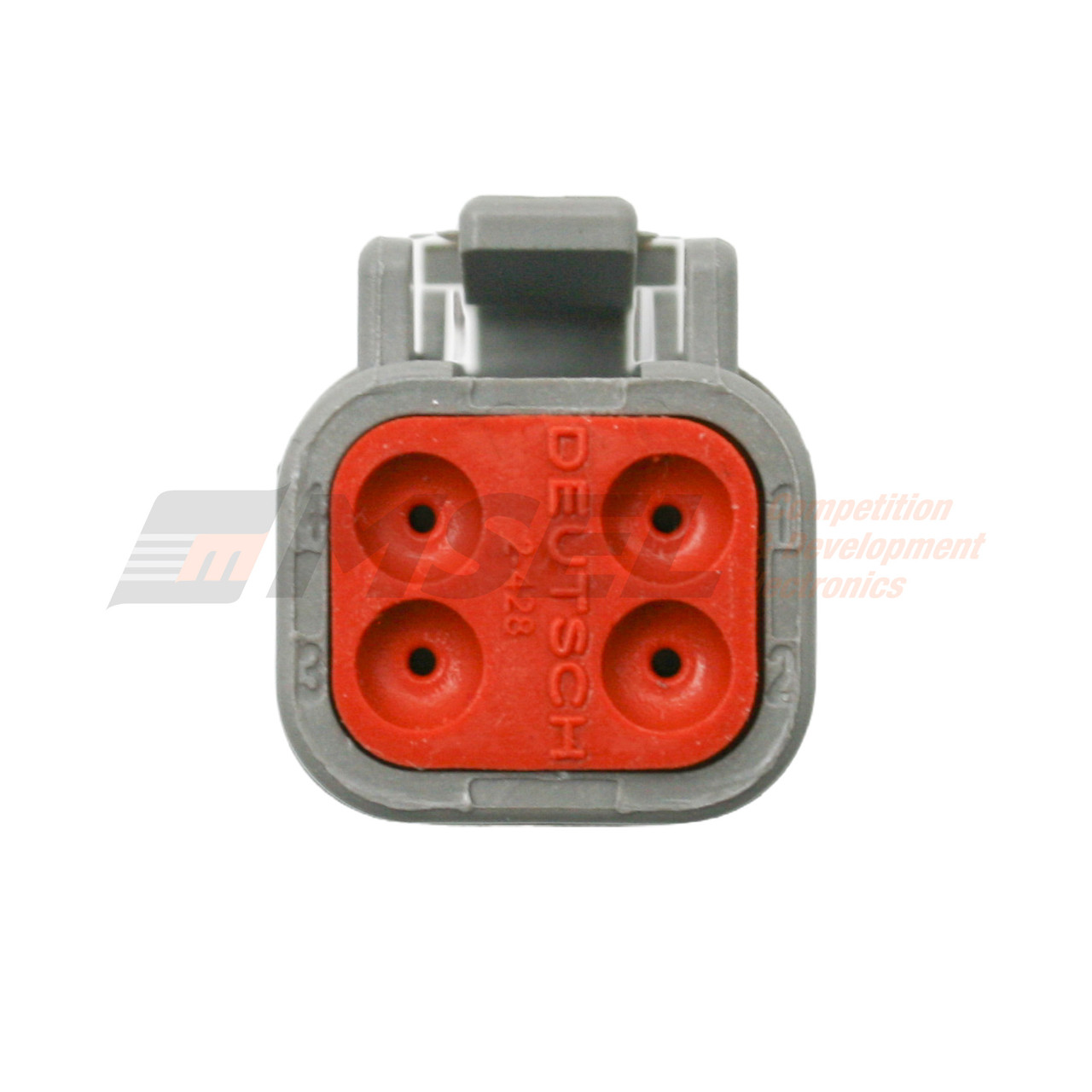

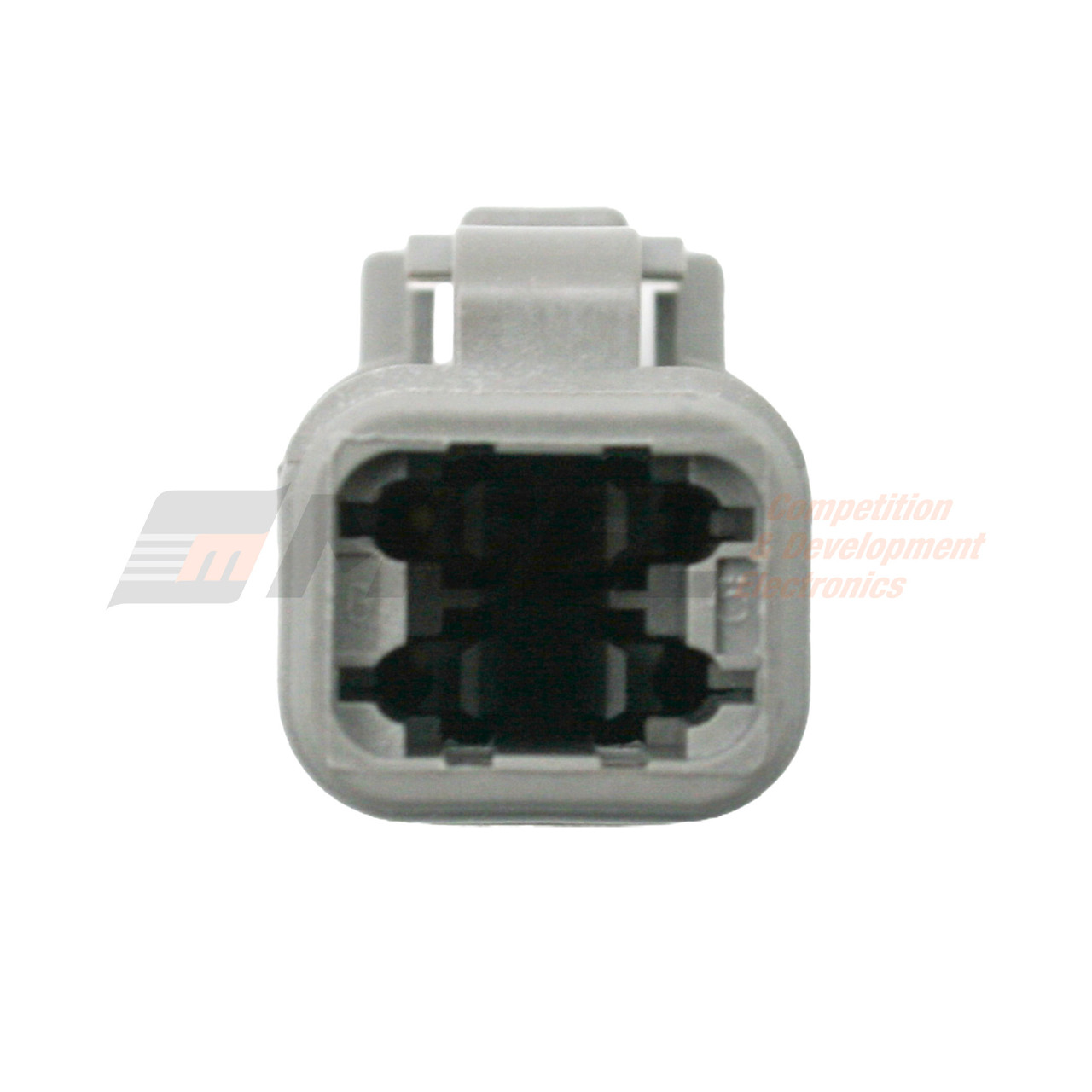

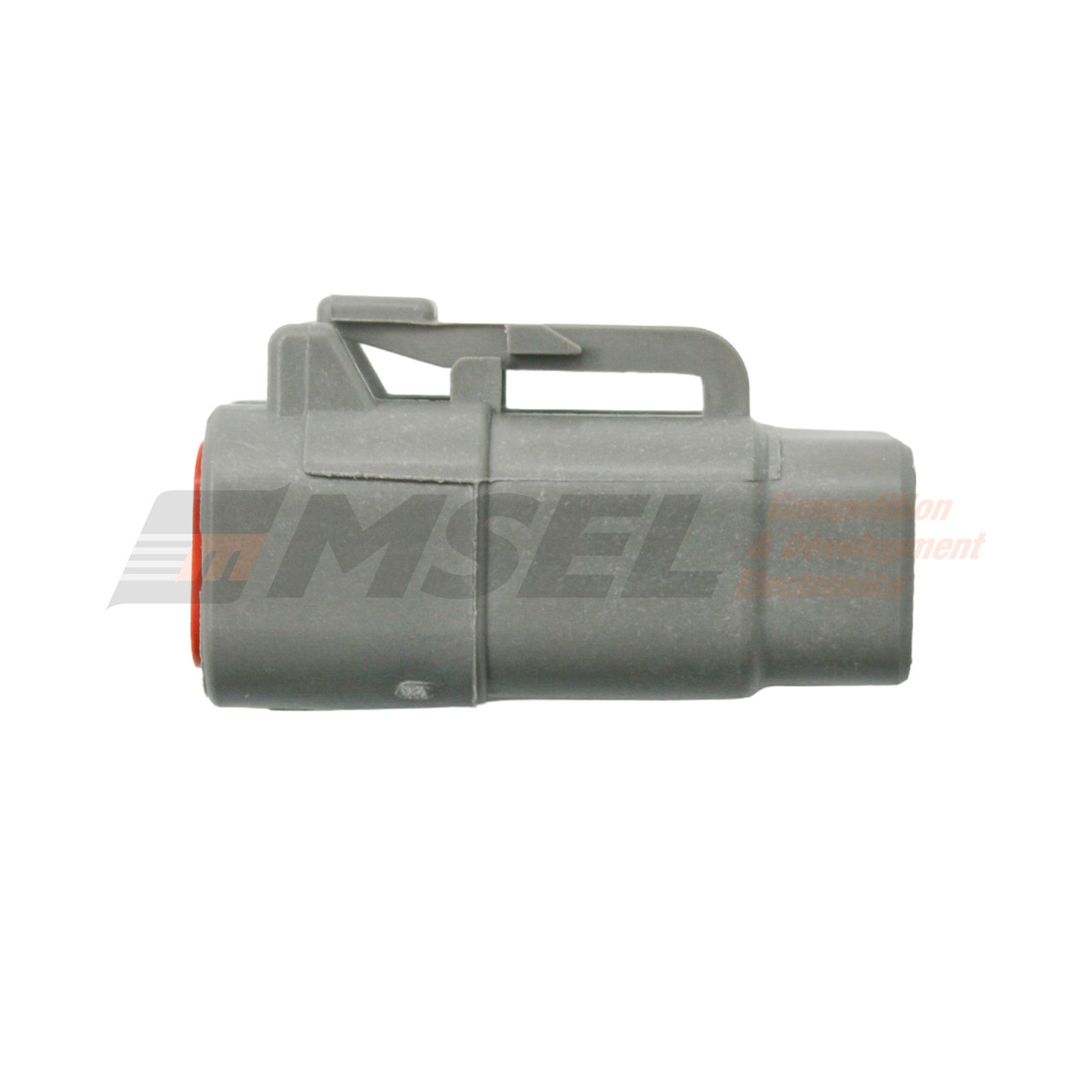

Deutsch DTM 4-Way Plug Kit No Heat Shrink Gland
The Deutsch DTM 4-way plug kit is a compact, sealed, four-circuit harness connector for low-current signal and accessory wiring. This version is supplied without a heat shrink gland, a cost effective alternative to the regular DTM connectors.
Kit Includes:
- 1x Deutsch DTM 4-Way Plug Housing
- 1x Orange Locking Wedge
- 4x Gold Coated Size 20 DTM Terminals
See related products for full kit containing both sides of the connector
Key Value Features
| OEM Deutsch Connector Part Numbers |
| With Backshell: | DTM06-4S-E007 |
| Without Backshell: | DTM06-4S |
Key Features
| General |
| Sealing: | Matte Sealed |
| Number of Ways: | 4 |
| Contact Size: | Size 20 |
| Wire Size: | 20AWG - 24AWG |
| Number of Rows: | 2 |
| Pitch: | 4.2mm |
| Row Spacing: | 7.1mm |
| Numbered Cavities: | Yes, numbered |
| Mechanical |
| Contact Type: | Female Socket, Circular |
| Termination: | Multi-option |
| Lance Type: | Housing Lance |
| Housing Material: | PA66+GF |
| Seal Material: | Silicone Rubber |
| Mounting Style: | Free hanging |
| TPA: | Yes |
| CPA: | No |
| Electrical |
| Current Rating[1]: | 7.5A |
| Voltage Rating: | 250V (AC,DC) |
| Environmental |
| Temp Range[2]: | -55 - 125°C |
| Protection Rating: | IP68, IP6K9K with Filler Pins Installed |
| Flammability Range: | UL94 V-0 |
[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
[2] Temperature range is for reference only, and may/may not include temperature rise. For detailed characteristics, see applicable product documents.
