Description
Deutsch DTM 4-Way Connector Kit No Heat Shrink Gland

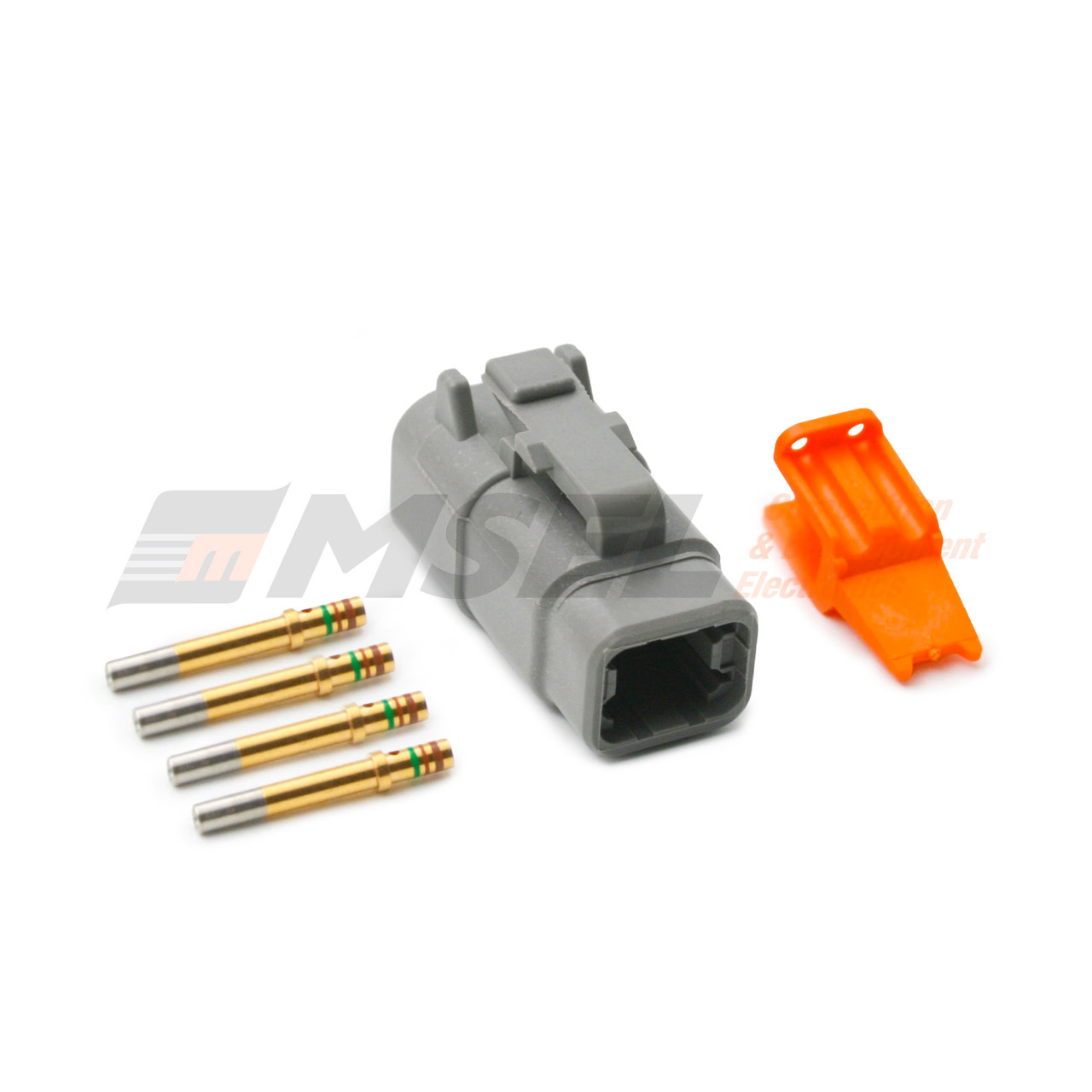

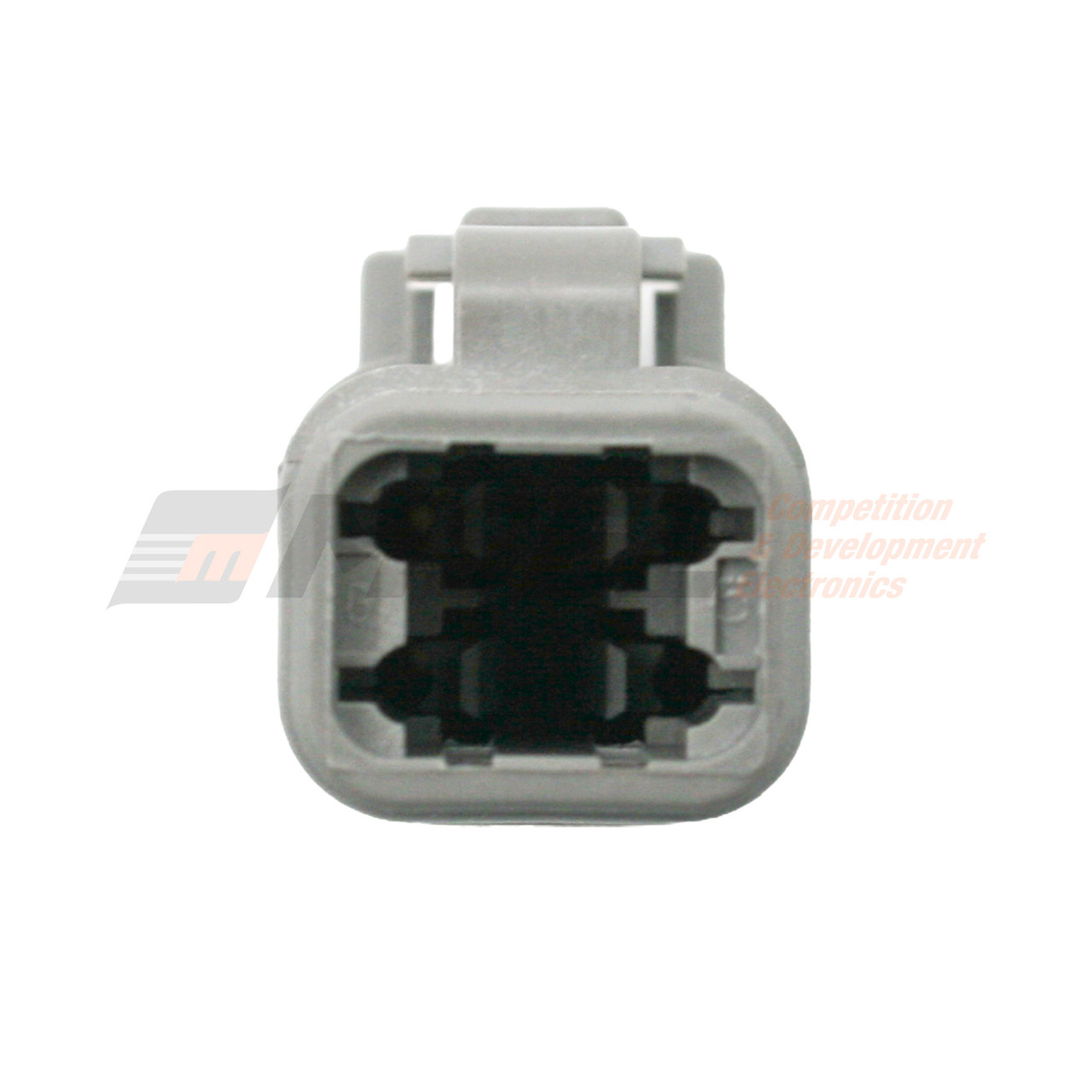

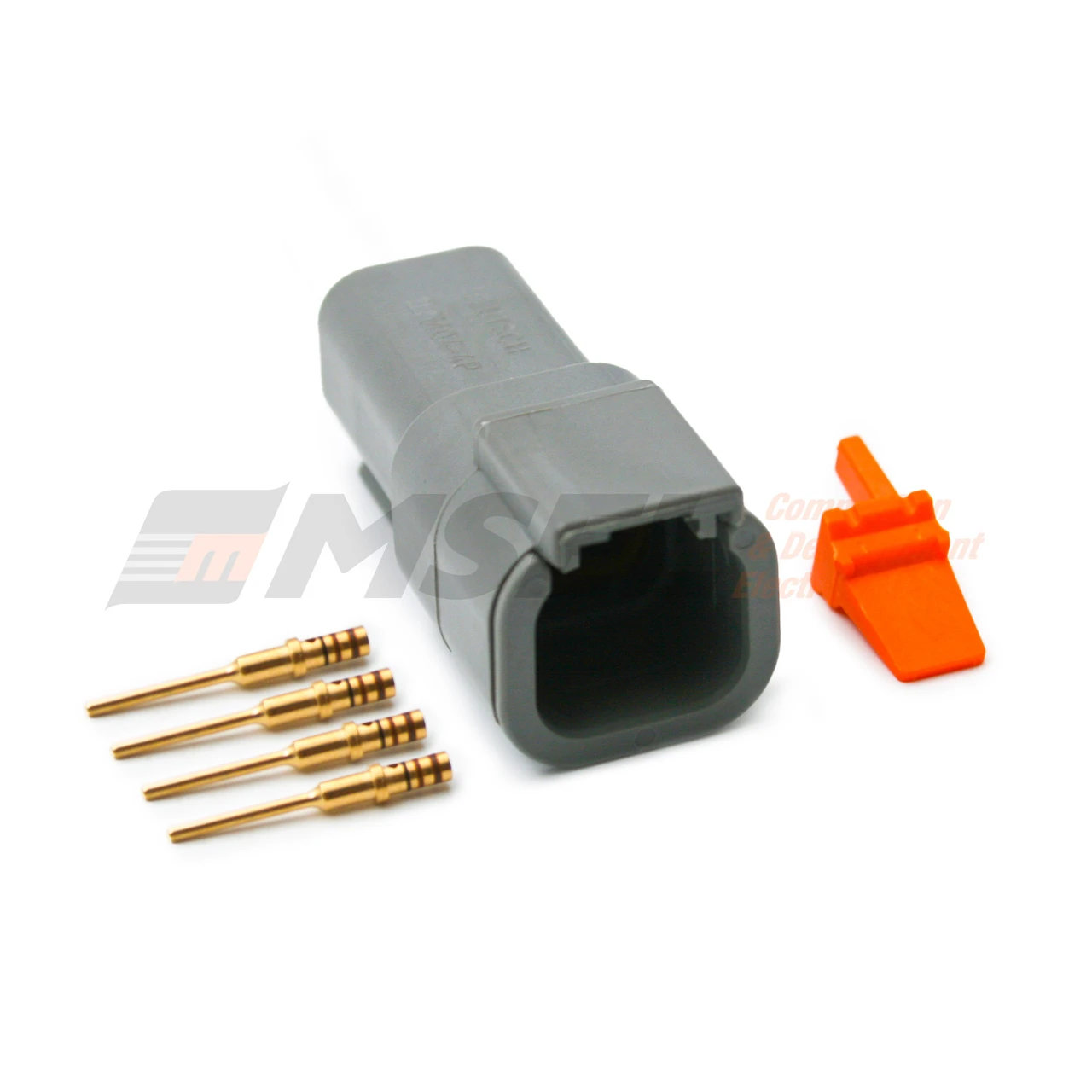

The Deutsch DTM 4-Way Connector Kit is a complete 4-position DTM connection. The kit comes with a DTM06-4S plug (Without Heat Shrink Gland), DTM04-4P receptacle, WM-4S and WM-4P wedges, and 8 size 20 solid contacts (4 pin, 4 socket). The DTM 4-way is a multi-position connector for low-current motorsport wiring.
Kit Includes:
- 1x Connector Plug Housing (No Heat Shrink Gland)
- 1x Connector Receptacle Housing
- 4x Gold plated solid formed pins
- 4x Gold plated solid formed sockets
- 1x Lock for Plug
- 1x Lock for Receptacle
According to TE Connectivity (Deutsch) specifications, the DTM series is rated to 7.5A per contact at up to 250V, sealed to IP67/IP68, and operates from -55°C to +125°C; making it a standout sealed connector for low-current signal wiring in motorsport, marine, and heavy-duty automotive applications.
Key Value Features
Each half is available separately - refer to the Recommended Product options below
