Description

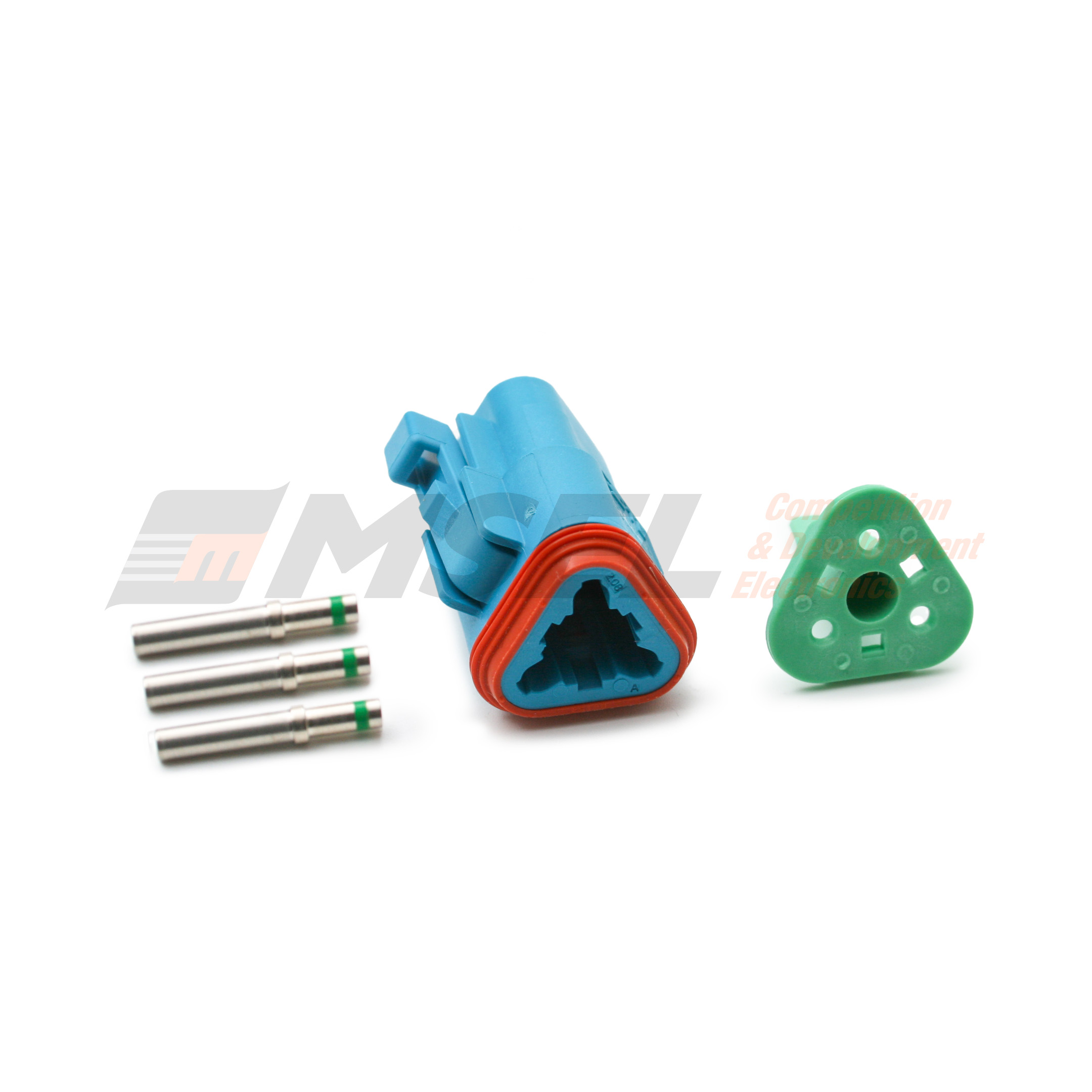

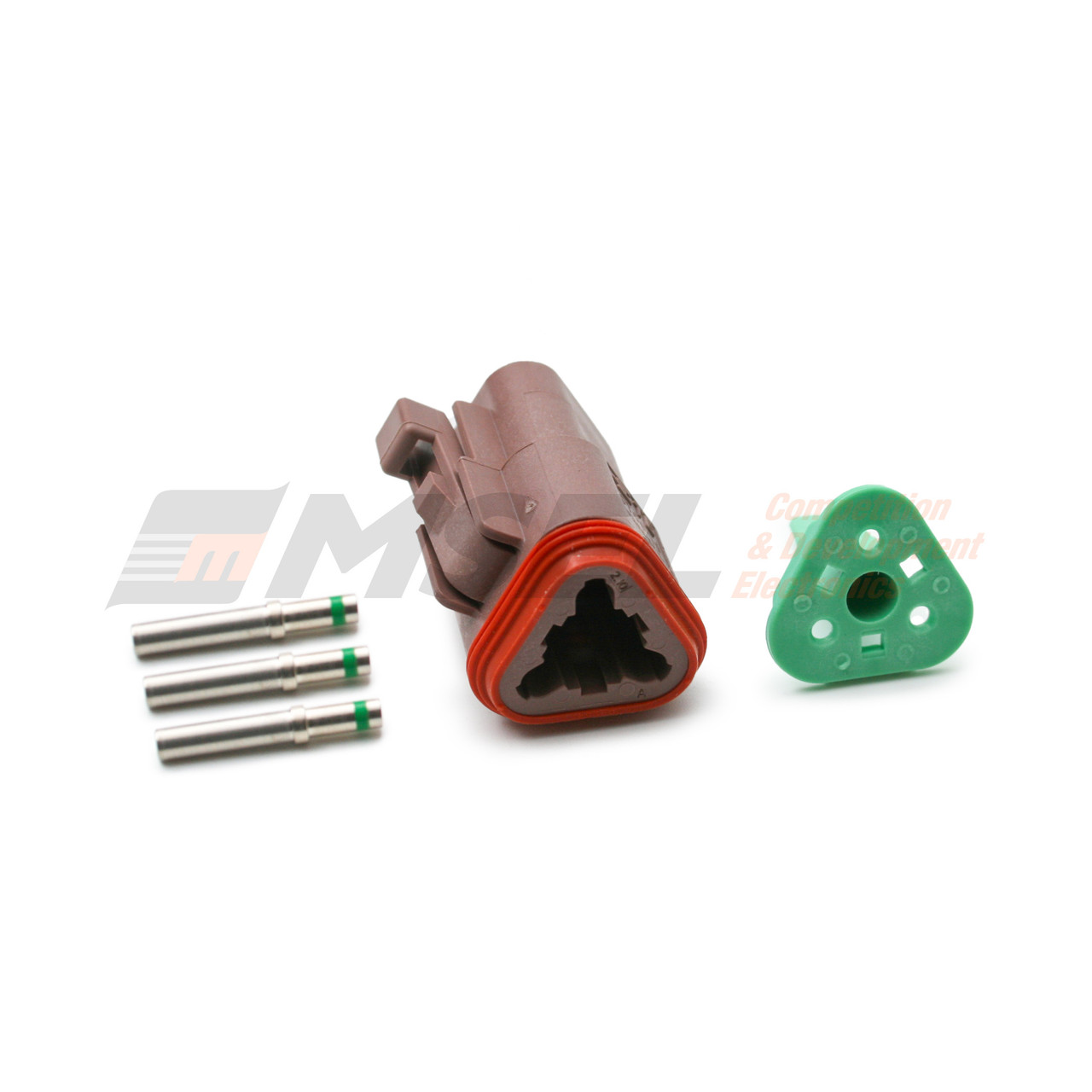

Deutsch Colour DT 3-Way Plug Kit with Solid Sockets
Coloured Deutsch DT 3-way plug-side kits are supplied in Blue, Brown, and Green variations. Each kit contains the 3-way plug housing (DT06-3S-TN0X), W3S wedge, and three size 14 or 16 socket contacts (select your option).
Kit Includes:
- 1x Colour Connector Plug Housing
- 3x Solid formed sockets
- 1x Locking Wedge for Plug
Suited to motorsport harness building where colour-coded identification reduces mating errors. Fulfilled from our Auckland warehouse. Trading since 2004. Ships to New Zealand and worldwide.
The Coloured Deutsch DT 3-Way Plug-Side Kit supplies the cable-end half of a Deutsch DT 3-way connection (the DT06-3S-TN0X plug housing), W3S wedge, and four size 14 or 16 socket contacts. MSEL stocks the Blue, Brown, and Green colour variants.
According to TE Connectivity (Deutsch) specifications, the DT series is rated to 13A per contact at up to 250V, sealed to IP67/IP68, and operates from −55°C to +125°C, making it the standard sealed connector across motorsport, marine, agricultural, and heavy-duty automotive wiring.
See related products for full kit containing both sides of the connector.
