Description
Colour Deutsch DT 6-Way Connector Kit

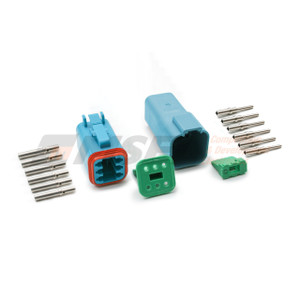

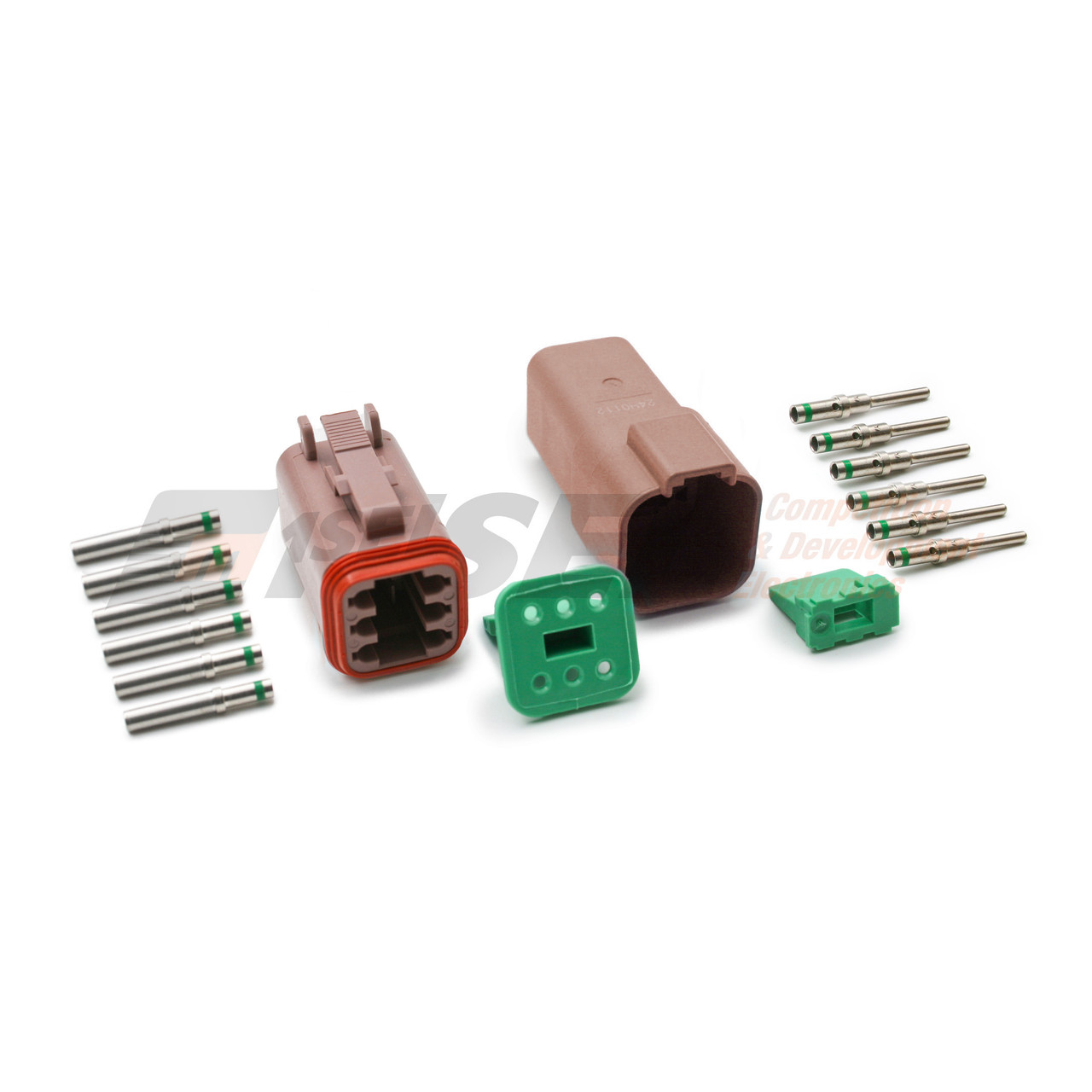

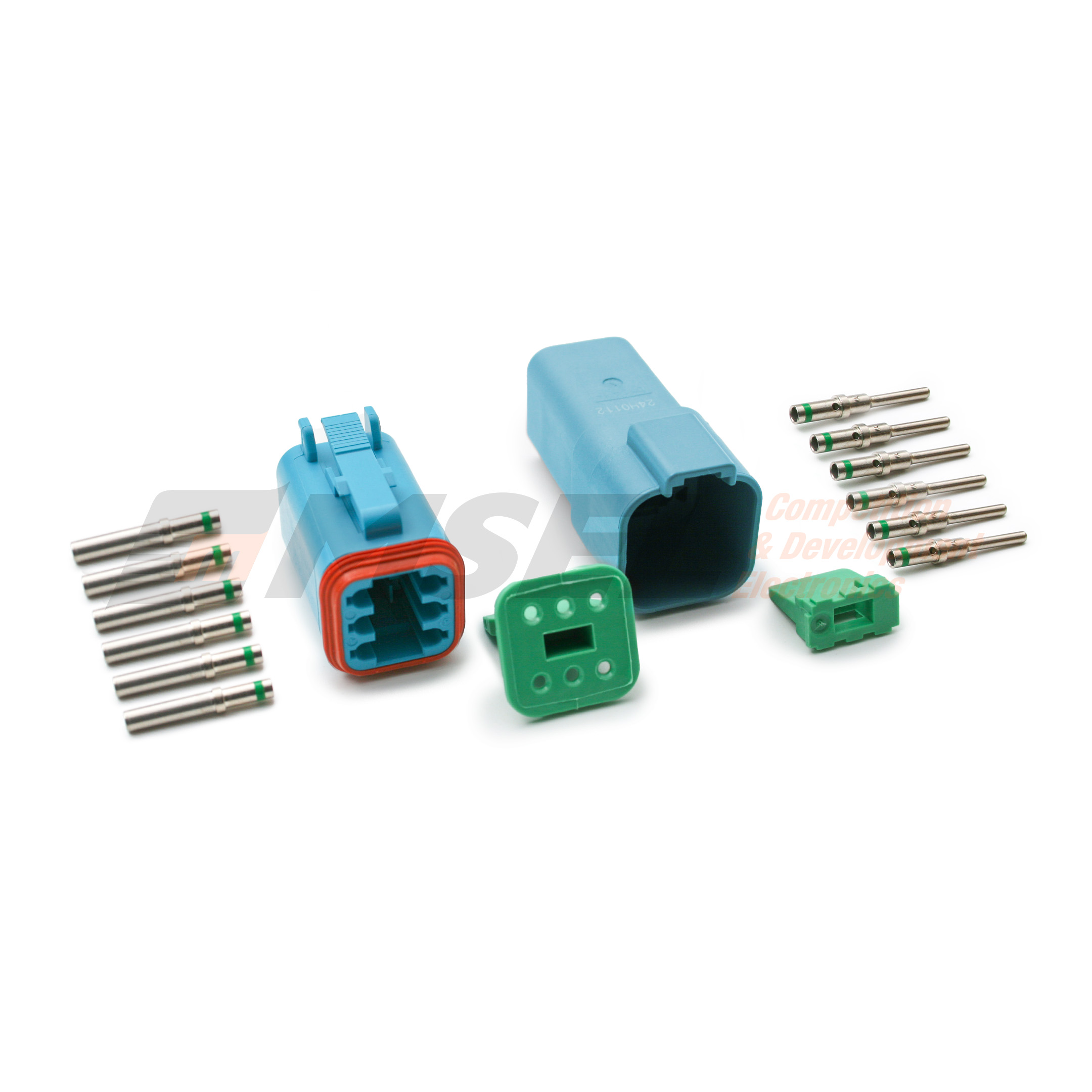

Colour Deutsch DT 6-way connector kits are supplied in Brown, Blue, and Green variations. Each kit contains the 6-way receptacle (DT04-6P-TN0X), 6-way plug (DT06-6S-TN0X), matching wedges (W6P and W6S), six pins, and six sockets. Available in size 14 and 16 contacts.
Kit Includes:
- 1x Blue Connector Plug Housing
- 1x Blue Connector Receptacle Housing
- 6x Solid formed sockets
- 6x Solid formed pins
- 1x Lock for Plug
- 1x Lock for Receptacle
Suited to motorsport harness building where colour-coded identification reduces mating errors. Fulfilled from our Auckland warehouse. Trading since 2004. Ships to New Zealand and worldwide.
The Coloured Deutsch DT 6-Way Connector Kit packages a complete 6-position DT connection; receptacle, plug, two wedges, and twelve size 14 or 16 contacts (six pin, six socket). MSEL stocks in Blue, Brown, and Green colour variants. Colour-coded DT housings are used to visually identify circuits in motorsport and industrial wiring harnesses, reducing the risk of cross-connection during build, service, and field repair.
According to TE Connectivity (Deutsch) specifications, the DT series is rated to 13A per contact at up to 250V, sealed to IP67/IP68, and operates from −55°C to +125°C, making it the standard sealed connector across motorsport, marine, agricultural, and heavy-duty automotive wiring.
