Name: Bosch Hall Effect Speed Sensor
SKU: SENBOSHALL
Price: 84.12 NZD
Availability: InStock

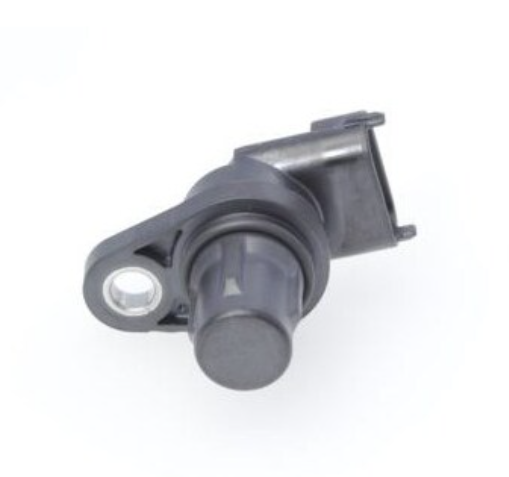

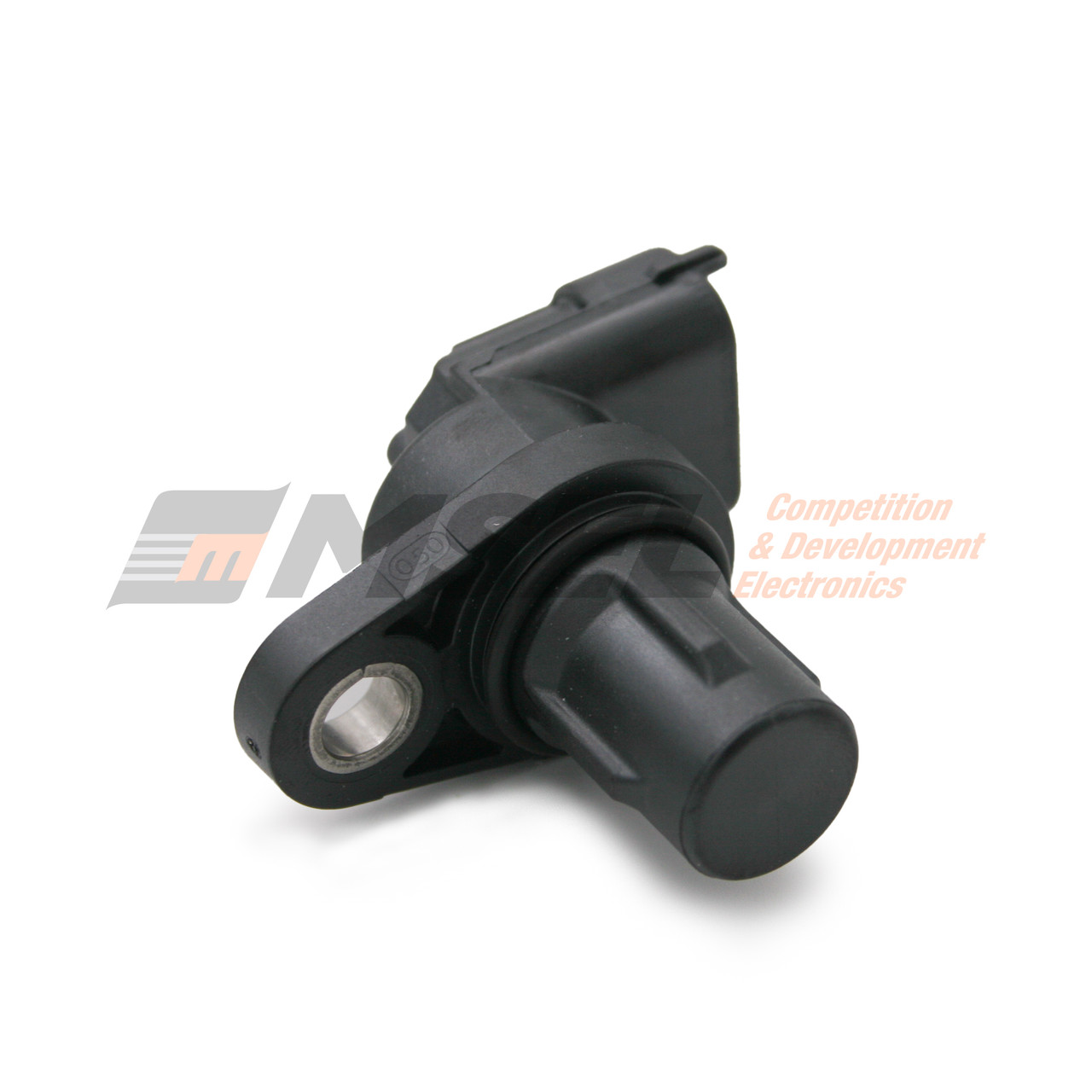

Bosch Hall Effect Speed Sensor

SKU:

SENBOSHALL

Quantity	Unit Price (Inc GST)
5 +	$69.50 ($79.92)
10 +	$69.49 ($79.91)

Description

Description

Genuine Bosch hall effect speed sensor.

Suitable for measuring crank, cam and wheel speed.

Hall effect sensor so outputs a consistent amplitude square wave, no matter the speed.

4.5V to 24V supply voltage
up to 4.2kHz frequency
0.5 to 1.4mm air gap between sensor and trigger wheel

Accessories (sold separately)

Bosch 3-Way New Style Female Connector Kit click here.
Chopper Disk 12T X 145Mm click here.
Chopper Disk 12T X 90Mm click here.
