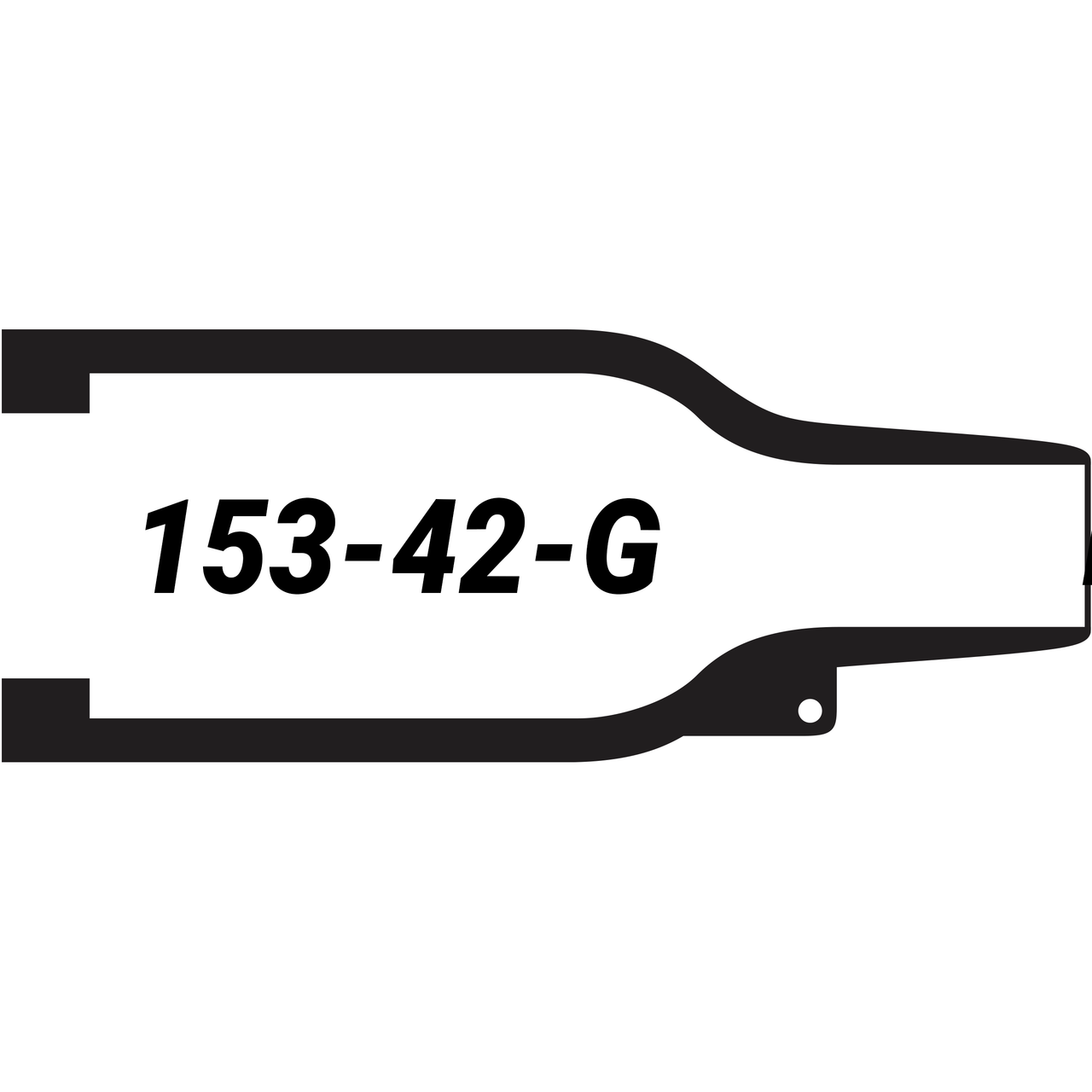

Hellerman 153-42-GW24 Moulded Straight Boot Pre-Glued
SKU: BOO153-42-GW24
Hellerman 153-42-GW24 Moulded Straight Boot Pre-Glued
SKU: BOO153-42-GW24
Summary:
HellermannTyton 153-42-GW24 straight lipped boot, 150-series bottle-shape, adhesive-lined for DTM connectors. Provides strain relief and environmental sealing when fitted with a circular grooved adaptor. Sized for Deutsch DTM 6, 8 and 12-way connectors; equivalent to Raychem 202K232.
Excl. GST (Incl. GST)
$24.50 ($28.17)
Buy in Bulk and Save!
Description:
Hellermann 153-42-GW24 Moulded Straight Boot Pre-Glued With Lip
HellermannTyton, Helashrink 150 series bottle shape, straight boot with rib and adhesive lined.
This style provides connector cable strain relief and environmental sealing. Use in conjunction with circular grooved adaptors.
Application
Heat shrinkable moulded shape for use in electrical and electronic cable harness applications. Ideal for use on junctions in looms. Correct size for 6, 8 and 12 way DTM connectors.

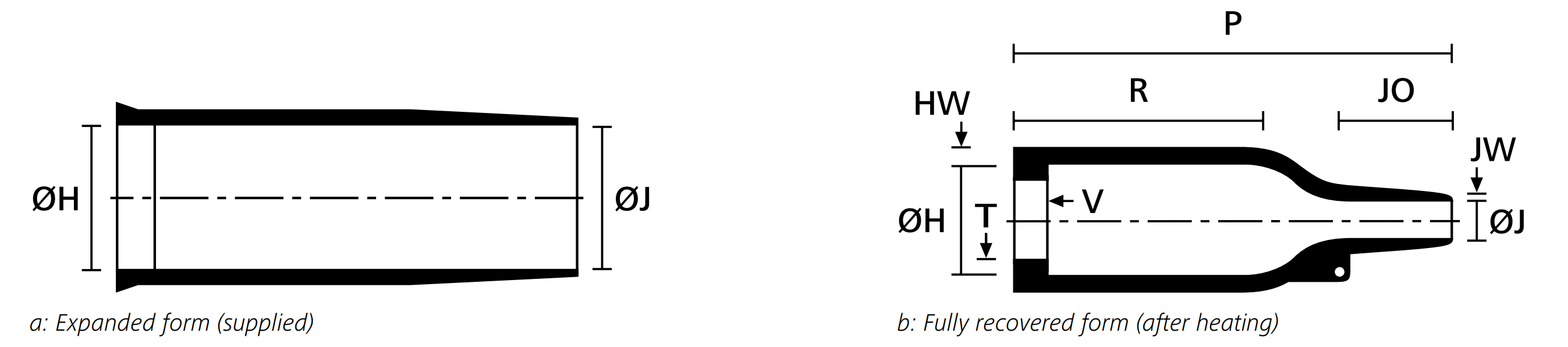

Product Dimensions
|
ØH
min. a
|
ØH
max. b
|
ØJ
min. a
|
ØJ
max. b
|
P
+/- 10%
|
R
max.
|
JO
+/- 10%
|
HW
+/- 20%
|
JW
+/- 20%
|
V
+/- 10%
|
T
+/- 20%
|
| 25 | 14 | 9 | 3.5 | 55 | 28 | 16 | 1.8 | 0.5 | 3 | 1 |
Note: all dimensions are in millimeters (mm)
Additional Product Information
|
Feature
|
Specification
|
| Material | Fluid resistant elastomer |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 202K232 |
