Autosport 79-Way Bulkhead Connector with Size 22 Pins - Red
SKU: CONAS02035PN
Autosport 79-Way Bulkhead Connector with Size 22 Pins - Red
SKU: CONAS02035PN
Summary:
Autosport 79-way bulkhead connector with Size 22D pin contacts, red keyway. Oval flange receptacle for panel mounting, crimp terminated with the TOOLOCK42 locator. Mates with the CONAS62035SN plug connector, same shell size and keyway.
Excl. GST (Incl. GST)
$246.82 ($283.84)
Buy in Bulk and Save!
Description:
Autosport 79-Way Bulkhead Connector Size 22 Pins - Red
Connector kit includes contacts and insert/removal tool.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 02035PN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 20 | |
| Orientation | Red (N) | Will only mate with red connectors |

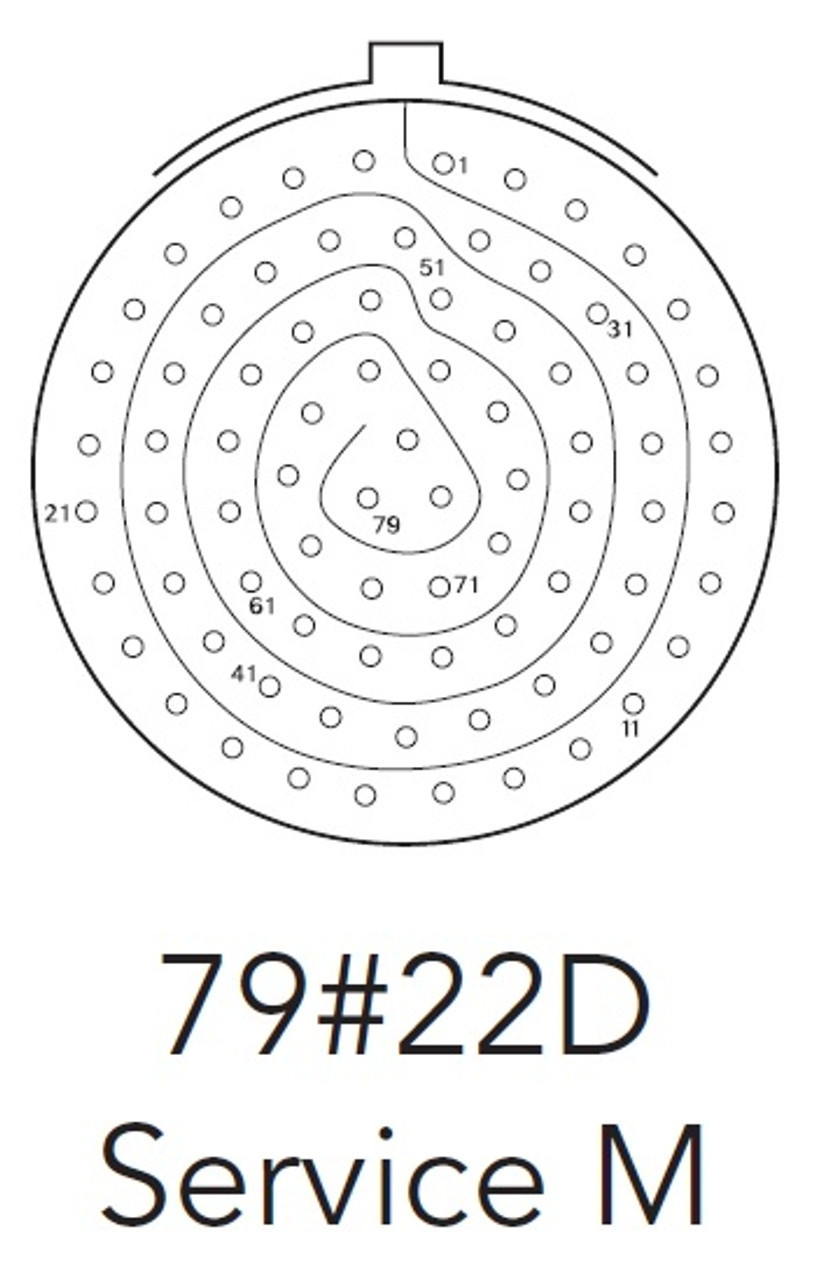

| Number of Contacts | 79 | |
| Contact Size | 22D | Supports 26 to 22AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK42 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 37.00 | 41.60 | 3.2 | 31.75 | 17.21 | 15.29 | 33.50 | 47.90 | 3 | 34.60 | 41.60 | 3.60 |
Note: all dimensions are in millimeters (mm)
