Autosport 6-Way Inline Receptacle Connector with Size 26 Sockets - Yellow
SKU: CONAS10406SA
Autosport 6-Way Inline Receptacle Connector with Size 26 Sockets - Yellow
SKU: CONAS10406SA
Summary:
Shell size 04 Autosport inline receptacle that takes 30 to 24 AWG wire. The yellow keyway means it only mates with yellow-keyed Autosport connectors. Contacts are rated to 3 amps each and come with an insert/removal tool.
Excl. GST (Incl. GST)
$116.34 ($133.79)
Buy in Bulk and Save!
Description:
Autosport 6-Way Inline Receptacle With Sockets - Yellow
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 10406SA | |
| Connector Type | Inline Receptacle | |
| Shell Size | 04 | |
| Orientation | Yellow (A) | Will only mate with yellow connectors |

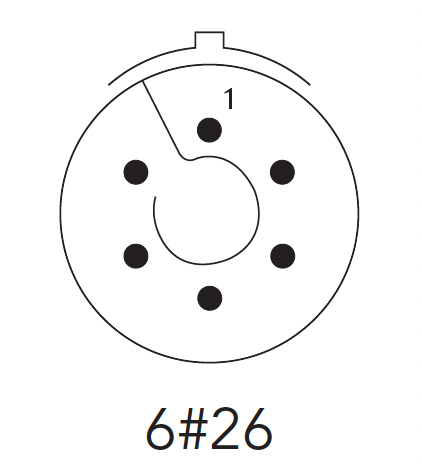

| Number of Contacts | 6 | |
| Contact Size | 26 | Supports 30 to 24AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | Refer to Related Products below (not incl.) | |
| Kit Contains |
connector housing, contacts and insert/removal tool
|

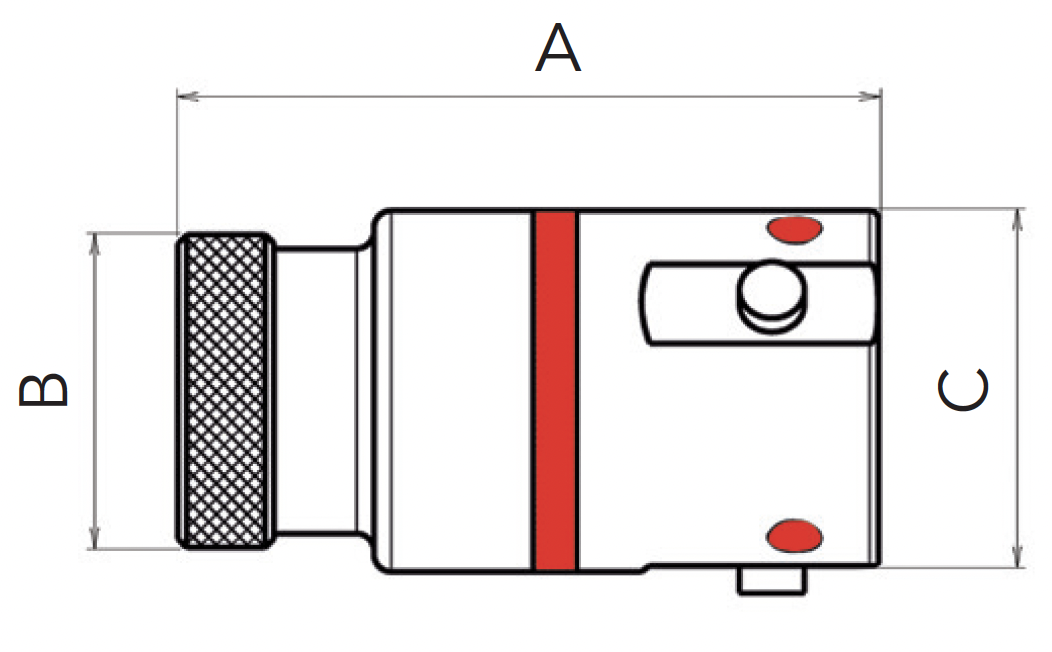

| A | ØB | ØC |
| 18.1±0.2 | 8.5±0.1 | 10.0±0.2 |
Note: all dimensions are in millimeters (mm)
