Description

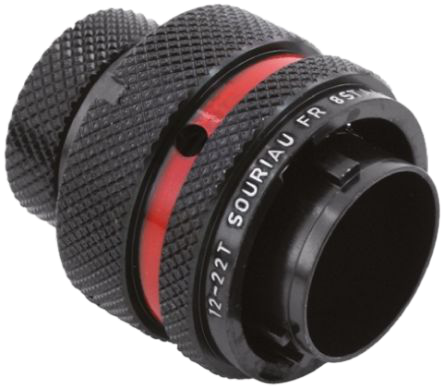

Autosport 37-Way Plug Connector with size 22 Pins - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 61435PN | |
| Connector Type | Plug | |
| Shell Size | 14 | |
| Orientation | Red (N) | Will only mate with red connectors |

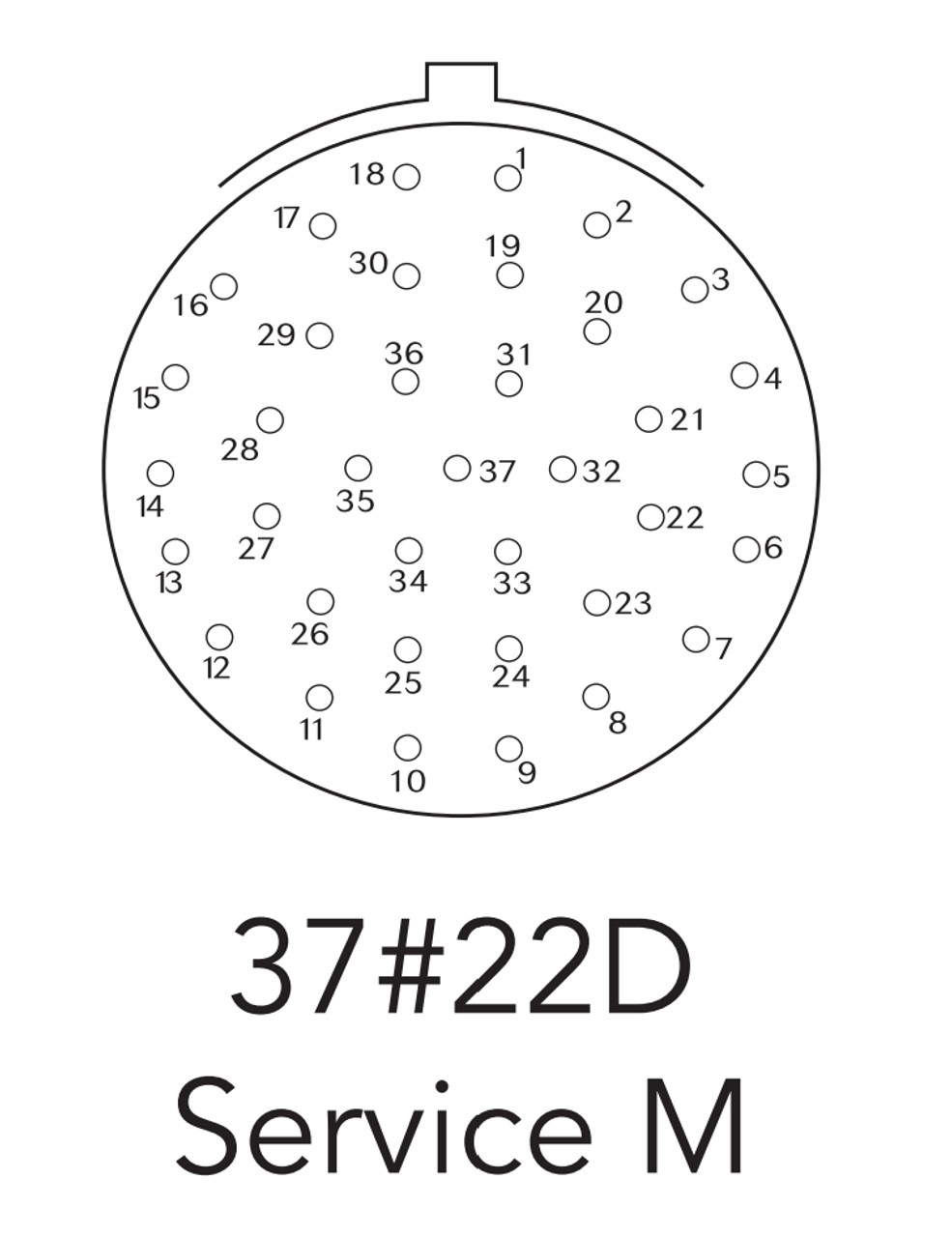

| Number of Contacts | 37 | |
| Contact Size | 22D | Supports 28 to 22AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK42 | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
| ØA max. | B max. |
| 29.00 | 18.55 |
Note: all dimensions are in millimeters (mm)
